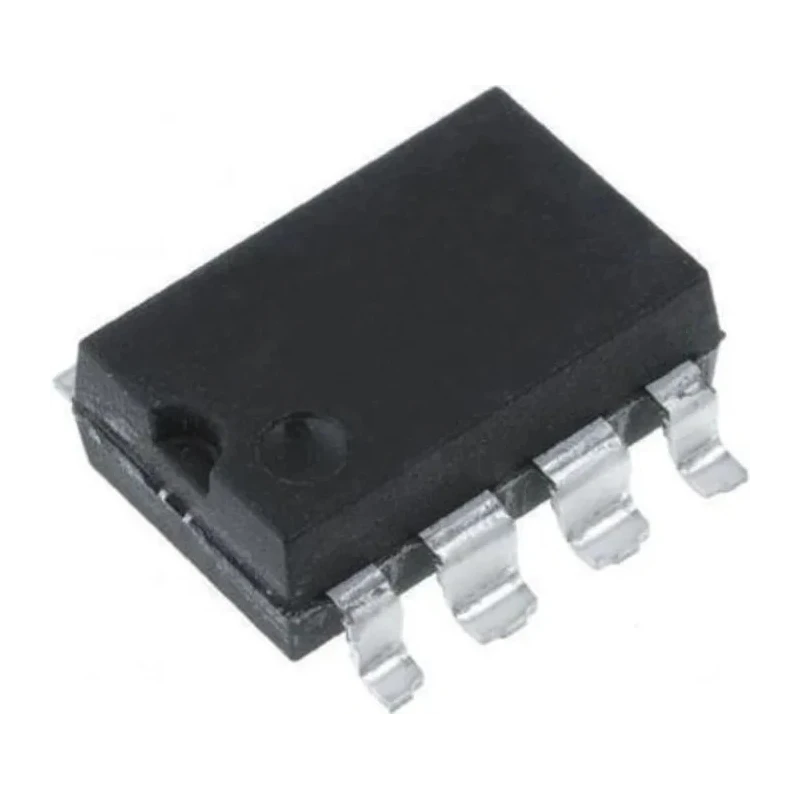

onsemi Surface Mount Optocoupler, MOSFET Output, 1 Channel, 8 Pins, MDIP Package FOD3120TSR2V

onsemi FOD3120TSR2V is a surface mount optocoupler featuring an 8-pin MDIP package designed to provide electrical isolation with MOSFET output. It supports a single channel and is engineered for reliable IGBT/MOSFET gate drive applications across various industrial and electronic systems.

This device offers a maximum forward voltage of 1.8V and can handle input currents up to 25mA, enabling efficient current transfer while maintaining signal integrity. The typical rise and fall times of 60ns allow for quick switching performances necessary in power and control circuits. With an isolation voltage rating of 5000Vrms, it ensures robust electrical separation between input and output circuits, enhancing safety and noise immunity.

Designed to operate effectively within an ambient temperature range of -40°C to 100°C, it suits harsh industrial environments. The optocoupler complies with international standards IEC60747-5-2 and UL1577, confirming its quality and suitability for electronic equipment requiring high isolation and precise control.

The product is supplied in tape and reel format facilitating automated PCB assembly in manufacturing, enhancing production efficiency. Its logic output and compact 8-pin MDIP form factor make it ideal for use in power electronics, industrial automation, and signal isolation in medical and communication equipment.

Single channel optocoupler with MOSFET output. 8-pin MDIP surface mount package. Max forward voltage of 1.8V and input current up to 25mA. Typical rise and fall times of 60ns. Isolation voltage rated at 5000Vrms. Operating temperature from -40°C to 100°C.

Certified to IEC60747-5-2 and UL1577 standards. Tape and reel packaging for automated assembly.

This optocoupler is widely applied across industrial electronics, power control systems, automation, communication equipment, and other demanding environments requiring high-voltage isolation and fast switching. It is a critical component for protecting circuits against voltage transients and electrical noise, ensuring reliable operation of sensitive downstream electronics.
