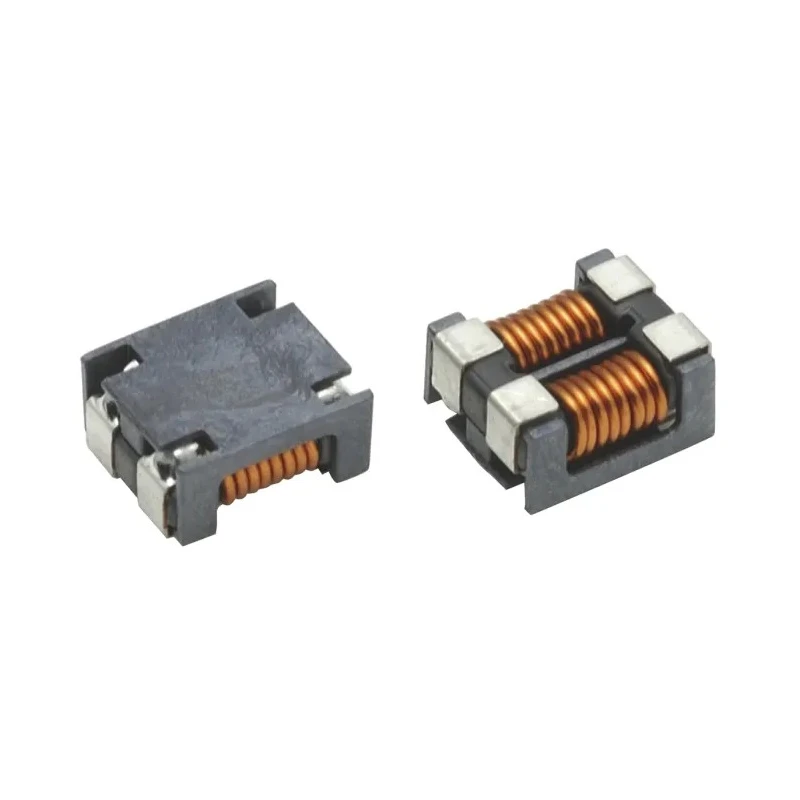

TDK ACM-V Wirewound Surface Mount Inductor with Ferrite Core 4A IDC ACM70V-701-2PL-TL00
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.5mm |
| Length | 7mm |
| Model | ACM70V-701-2PL-TL00 |
| Depth | 6mm |
| Packaging | Reel |
| Series | ACM-V |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Standards/Approvals | RoHS |
| Maximum DC Current | 4A |
| Pin Count | 4 |
| Maximum DC Resistance | 15mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Supports maximum DC current of 4 A for reliable operation.
- Constructed with a ferrite core and wirewound design for effective inductance performance.
- Compact dimensions with 7 mm length, 3.5 mm height, and 6 mm depth.
- Meets automotive standard AEC-Q200 for quality and durability.
- Rated for operating temperatures between -40°C and 125°C.
- Terminated for surface mount technology, suitable for automated PCB assembly.
- Maximum DC resistance is 15 mΩ ensuring low power loss.
- RoHS compliant with molded construction enhancing robustness and assembly reliability.
Product Description
TDK ACM70V-701-2PL-TL00 is a wirewound surface mount inductor featuring a ferrite core, designed to support a maximum DC current of 4 amperes. This component is part of the ACM-V series, specifically optimized for demanding automotive and electronic circuit applications where common mode noise suppression is essential.
With compact dimensions of 7 mm length, 3.5 mm height, and 6 mm depth, this inductor is surface mount compatible, enabling efficient automated assembly on printed circuit boards. It conforms to the stringent automotive AEC-Q200 standard and operates reliably in temperatures ranging from -40°C to +125°C, making it suitable for harsh environmental conditions.
The wirewound construction coupled with a ferrite core provides excellent impedance and low DC resistance of 15 mΩ, ensuring efficient power handling and minimal losses. The device is molded and RoHS compliant, promoting sustainability and mechanical durability.
This inductor is primarily used in common mode noise countermeasures for DC power lines in automotive multimedia equipment, electronic controllers, and various electronic devices. Its design ensures stable performance in applications requiring high current capability, noise reduction, and temperature resilience.
The product is supplied on reels to facilitate streamlined production and insertion into automated assembly lines. Supports maximum DC current of 4 A for reliable operation. Constructed with a ferrite core and wirewound design for effective inductance performance.
Compact dimensions with 7 mm length, 3.5 mm height, and 6 mm depth. Meets automotive standard AEC-Q200 for quality and durability. Rated for operating temperatures between -40°C and 125°C. Terminated for surface mount technology, suitable for automated PCB assembly.
Maximum DC resistance is 15 mΩ ensuring low power loss. RoHS compliant with molded construction enhancing robustness and assembly reliability. Packaged on reels for efficient production line use. Designed to suppress common mode noise in automotive power lines and electronic controllers.
Explore more Surface Mount Inductors and electronic components in the Electronics Components category at EnvMart for your industrial and automotive electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this inductor is 4 amperes.
This model has dimensions of 7 mm in length, 3.5 mm in height, and 6 mm in depth.
It operates reliably within a temperature range of -40°C to +125°C.
It is constructed with a ferrite core, which enhances its inductance performance.
The maximum DC resistance is 15 mΩ, ensuring low power loss during operation.
Yes, it meets the automotive standard AEC-Q200 and is RoHS compliant.
This model features a surface mount termination style, suitable for automated PCB assembly.
It is supplied on reels to facilitate efficient production and insertion into automated assembly lines.
It is primarily used for common mode noise suppression in automotive multimedia equipment and electronic controllers.
The inductor is wirewound, which contributes to its effective inductance performance.
This inductor is part of the ACM-V series, optimized for demanding electronic circuit applications.
The country of origin for this inductor is India.
