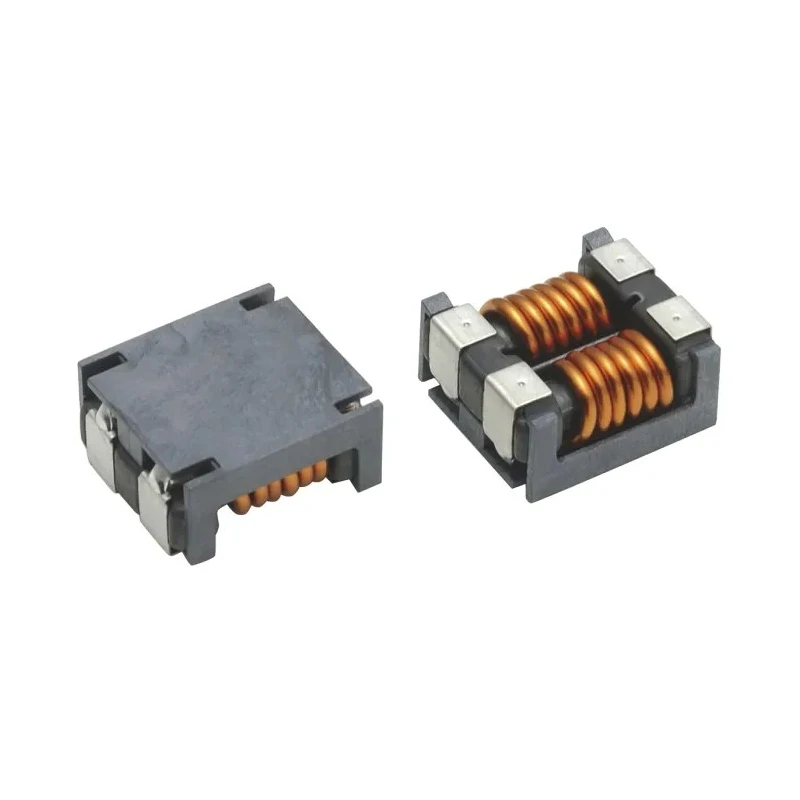

TDK ACM-V Shielded Wirewound Surface Mount Inductor with Ferrite Core 7.6 μH 8 A Idc ACM12V-701-2PL-TL00
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 6mm |
| Length | 12mm |
| Model | ACM12V-701-2PL-TL00 |
| Depth | 11mm |
| Packaging | Reel |
| Series | ACM-V |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 7.6μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 8A |
| Pin Count | 4 |
| Maximum DC Resistance | 6mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor features a ferrite core construction ensuring stability and durability.
- It supports a wide operating temperature range from -40°C to 125°C.
- Its shielded wirewound design provides excellent impedance for suppressing common mode noise.
- Compact size and surface mount termination style enable effective PCB integration.
- Compliant with RoHS and automotive standard AEC-Q200 for reliability in harsh environments.
- Maximum DC resistance is 6 milliohms for efficient power handling.
- Comes in a reel packaging format for automated insertion and assembly.
- Pin count is 4 with dimensions of 12mm length, 11mm depth, and 6mm height.
Product Description
TDK ACM12V-701-2PL-TL00 shielded wirewound surface mount inductor with ferrite core offers 7.6 μH inductance and supports up to 8 A maximum DC current. Designed for automotive and industrial electronic equipment, this inductor is ideal for use in common mode noise countermeasure applications on electronic controller DC power lines and multimedia power supply lines.
The ACM-V series from TDK features excellent impedance characteristics, effectively suppressing common mode noise while operating reliably in extreme temperature conditions from -40°C to +125°C. The ferrite core construction combined with moulded wirewound design ensures mechanical robustness and electrical performance.
This component has a low profile with surface mount termination style, facilitating high-density PCB layouts. It complies with the automotive AEC-Q200 standard and RoHS directives, ensuring environmental and quality standards required for automotive and industrial markets.
The maximum DC resistance of 6 milliohms supports efficient current flow minimizing power loss, while the 4-pin configuration and reel packaging support automated, high-volume manufacturing.
The inductor is suitable for industrial, automotive, consumer electronics, and power supply filtering applications. Its robust design and certifications make it dependable for high-reliability environments. Common mode chokes in the ACM-V series improve EMI suppression performance in DC power lines.
Explore more high-quality Surface Mount Inductors and other electronics components on EnvMart for industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 7.6 μH.
This inductor supports a maximum DC current of 8 A.
The maximum DC resistance is 6 milliohms, which supports efficient current flow.
It operates within a temperature range of -40°C to +125°C.
This model features a surface mount termination style, suitable for high-density PCB layouts.
This inductor has a pin count of 4.
The core material of this model is ferrite.
It is packaged in a reel format, facilitating automated insertion and assembly.
Yes, it complies with RoHS and the automotive standard AEC-Q200.
It is suitable for industrial, automotive, consumer electronics, and power supply filtering applications.
This model is part of the ACM-V series from TDK.
The dimensions are 12 mm in length, 11 mm in depth, and 6 mm in height.
