| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.45mm |
| Length | 1.05mm |
| Model | ESDALC5-1BM2 |
| Width | 0.65mm |
| Mount Type | Surface |
| Series | ESDALC5 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-882 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 17.5V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 11V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 150W |
| Maximum Peak Pulse Current Ippm | 9A |
| Maximum Reverse Leakage Current | 60nA |

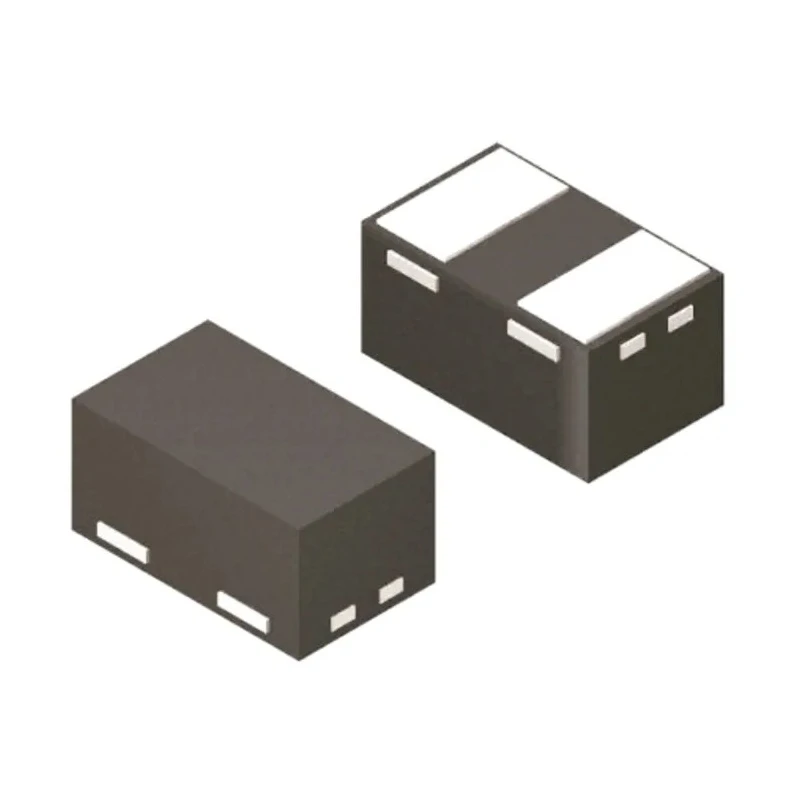

STMicroelectronics ESDALC5-1BM2 1-element bi-directional TVS diode is built to provide robust transient voltage suppression for sensitive electronic circuits. Mounted on a compact surface mount SOD-882 package, this diode ensures efficient protection against voltage spikes up to 150 W peak pulse power. With a minimum breakdown voltage of 11 V and clamping voltage of 17.5 V, it effectively safeguards semiconductors and integrated circuits from electrostatic discharge and transient events.
The component supports a maximum peak pulse current of 9 A and features minimal leakage current of 60 nA, optimizing performance with low energy dissipation. Its operating temperature range from -55°C to 150°C enables reliable operation in diverse industrial and commercial environments.
The diode's versatile bi-directional configuration allows it to clamp voltages in both polarities, making it ideal for use in communication devices, power management modules, and automotive electronics where sensitive components require reliable surge protection.
Compact dimensions (1.05 mm length, 0.65 mm width, 0.45 mm height) and surface mount package type (SOD-882) simplify integration into densely packed PCBs and support modern automated manufacturing processes.
This 1-element TVS diode provides bi-directional ESD protection. Peak pulse power capability of 150 W ensures strong transient suppression. Minimum breakdown voltage of 11 V meets typical circuit protection thresholds. Low leakage current (60 nA) conserves energy during normal operation.
Wide operating temperature range (-55°C to 150°C) supports harsh conditions. Compact SOD-882 SMT package enables high-density PCB layout. Designed for electronic industrial, telecommunications, and consumer device protection.
STMicroelectronics is a globally recognized leader in semiconductor technology innovation. This ESDALC5-1BM2 diode belongs to the trusted ESDA series of transient voltage suppressors optimized for effective ESD and transient protection.
