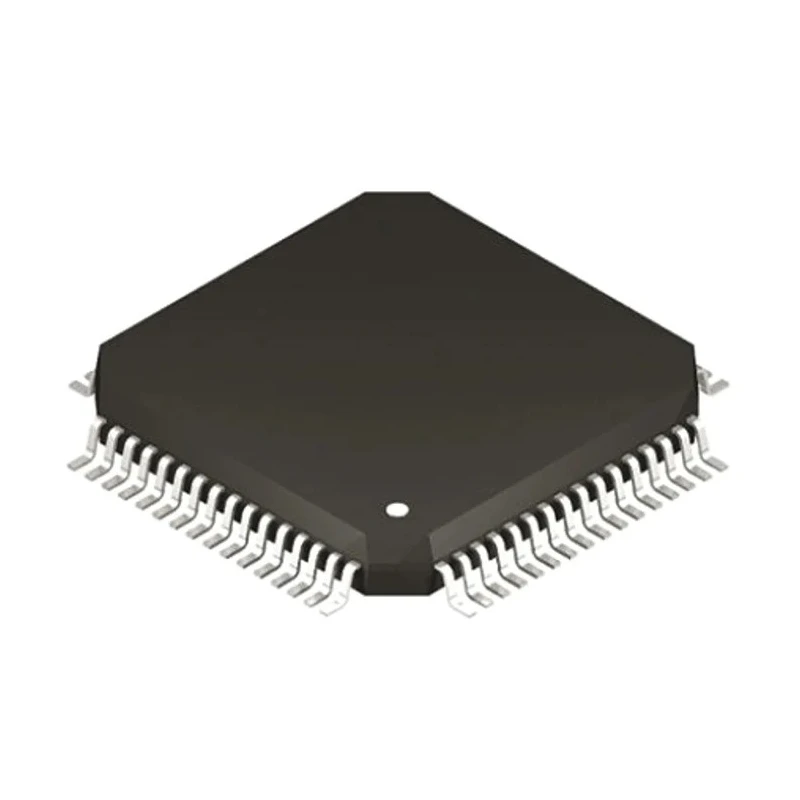

Microchip 16 bit Digital Signal Processor 70 MHz 536kB FLASH 64-Pin TQFP DSPIC33EP512MC806-I/PT
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33EP512MC806-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 52kB |
| ADC Resolution | 19bit |
| Timer Resolution | 16bit |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 536kB |
| Maximum Clock Frequency | 70MHz |
| Number of Timers | 9 |
| Instruction Set Architecture | Code Efficient |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 16 |
| PWM Resolution | 16bit |
| ADC Channels | 24 |
| Number of PWM Channels | 8 |
Key Features
- Maximum clock frequency of 70 MHz ensures high-speed processing.
- Program memory size of 536 kB FLASH for efficient code storage.
- Contains 52 kB RAM for data handling.
- Operates on a supply voltage range from 3 V to 3.6 V.
- Features 64-pin TQFP package suitable for surface mounting.
- Includes 2 ADCs and 24 ADC channels with 19-bit resolution for precise analog inputs.
- Equipped with 8 PWM channels and 16 PWM units for motor control applications.
- Supports automotive standard AEC-Q100 for reliable use in automotive environments.
Product Description
Microchip DSPIC33EP512MC806-I/PT is a 16 bit digital signal processor featuring a 70 MHz maximum clock frequency and 536 kB FLASH program memory. Designed to combine the performance of a DSP with the ease of an MCU, it supports high-speed digital operations such as filter algorithms, precision digital control loops, and audio processing.
This device contains a 52 kB RAM size and operates within a supply voltage range of 3 V to 3.6 V. Packaged in a 64-pin TQFP surface mount form factor with compact dimensions 10 mm × 10 mm × 1.05 mm, it is suitable for embedded applications requiring a compact footprint.
The DSP includes 2 ADC modules with 24 ADC channels and 19-bit resolution for high-accuracy analog signal conversion. It also features 8 PWM channels and 16 PWM units, with 16-bit resolution timers for precise motor control and power supply management.
Designed for rugged operating conditions, the device supports a temperature range from -40°C to 85°C and meets automotive standard AEC-Q100, ensuring reliability in automotive and industrial applications.
Additional features include 9 timers, 24 ADC channels, 2 ADCs, and a high timer resolution of 16 bit, enabling advanced control and monitoring. It is manufactured in Thailand and intended for use in industrial, automotive, and embedded system designs.
Maximum clock frequency of 70 MHz for fast data processing. 536 kB FLASH memory supporting large program code. 52 kB RAM providing substantial data storage. Operates between 3 V and 3.6 V supply voltage. Surface mount 64-pin TQFP package suitable for compact designs.
2 ADC modules with 24 channels and 19-bit resolution for accurate analog data. 8 PWM channels and 16 PWM units facilitating motor control. Supports automotive standard AEC-Q100 for industry reliability. Wide operating temperature range of -40°C to 85°C for harsh environments.
Compact physical size with 10 mm length, 10 mm width, and 1.05 mm height.
This Microchip DSPIC33EP512MC806-I/PT digital signal processor is ideal for industrial automation, automotive electronics, embedded systems, and digital audio processing applications. It enables accurate control and high-speed computation in DSP tasks with robust operating parameters.
Explore more Digital Signal Processors and microcontrollers at EnvMart to find the perfect match for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 70 MHz, ensuring high-speed processing capabilities.
It features a program memory size of 536 kB FLASH, allowing for efficient code storage.
This model contains 52 kB of RAM for data handling.
It operates on a supply voltage range from 3 V to 3.6 V.
The device includes 2 ADC modules with 24 ADC channels, each offering a 19-bit resolution for precise analog inputs.
It is equipped with 8 PWM channels and 16 PWM units for motor control applications.
This unit has compact dimensions of 10 mm in length, 10 mm in width, and 1.05 mm in height.
It supports an operating temperature range from -40°C to 85°C, making it suitable for harsh environments.
It meets the automotive standard AEC-Q100, ensuring reliability in automotive applications.
It is packaged in a 64-pin TQFP surface mount form factor, suitable for compact designs.
The DSPIC33EP512MC806-I/PT includes 9 timers for advanced control and monitoring applications.
It is ideal for industrial automation, automotive electronics, embedded systems, and digital audio processing applications.
