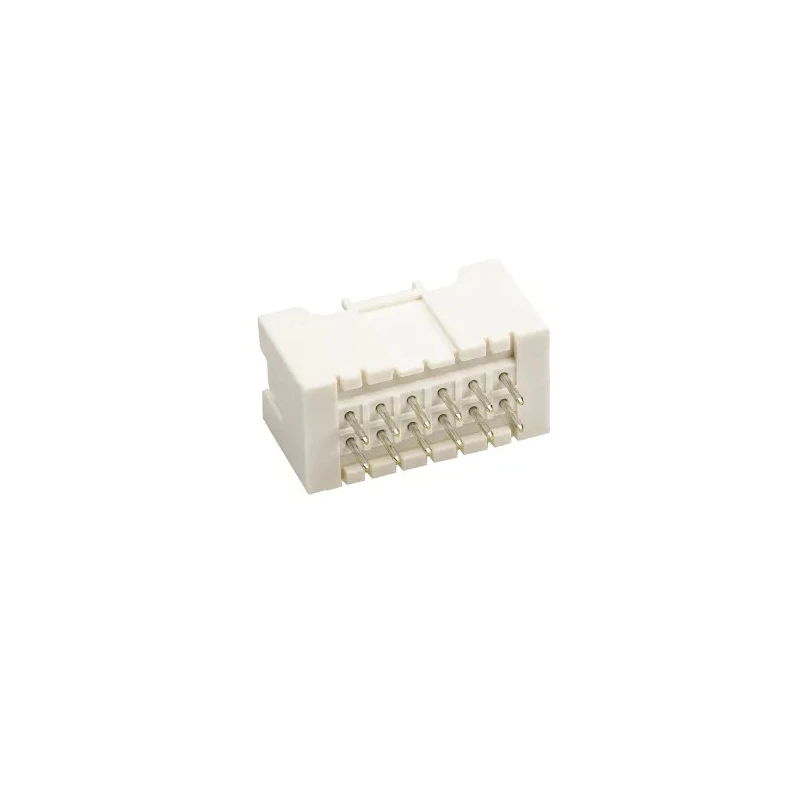

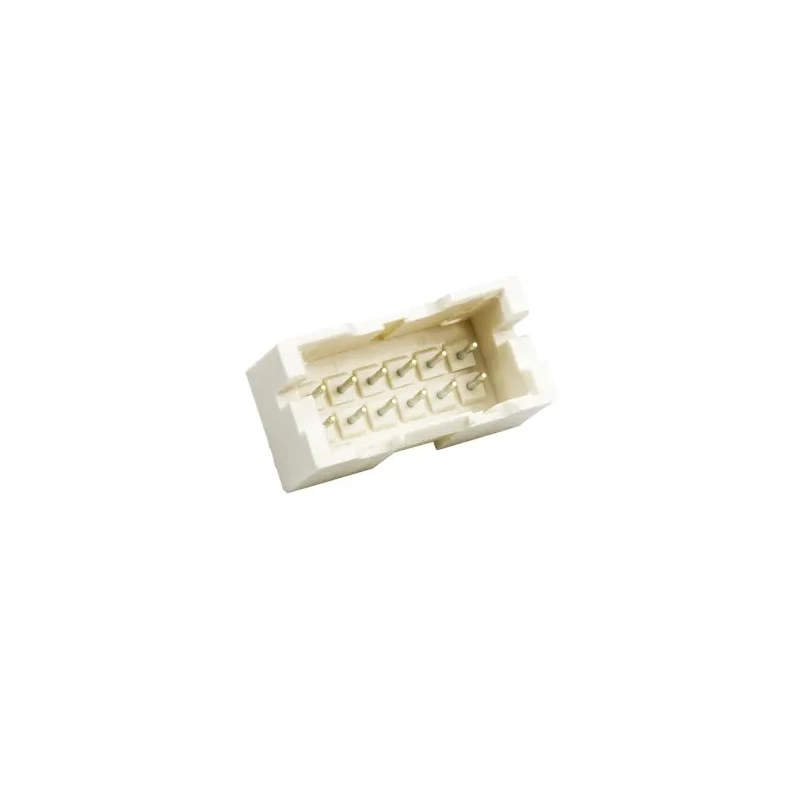

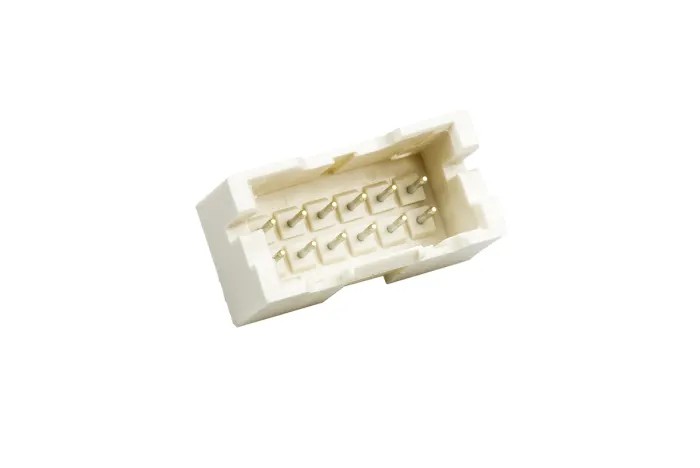

JST XAD Series Straight Through Hole PCB Header 12 Contact 2 Row 2.5 mm Pitch Shrouded B12B-XADSS-N(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XAD Series Straight Through Hole PCB Header 12 Contact 2 Row 2.5 mm Pitch Shrouded B12B-XADSS-N(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B12B-XADSS-N(LF)(SN)
Mount Type	Through Hole
Housing Material	Glass Filled Nylon
Contact Material	Copper Alloy
Series	XAD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector is designed for wire-to-board applications with a straight orientation.
Housing made of glass filled nylon ensures solder crack prevention and mechanical strength.
Contacts are made from copper alloy with tin plating for reliable conductivity.
Rated for 3A current and up to 250V operation ensuring compatibility with various electronics.
Mount type is through hole with solder termination providing strong mechanical and electrical connection.
Operating temperature range from -25°C to 85°C suitable for diverse environmental conditions.
Shrouded header design prevents mis-insertion and mechanical damage.
Manufactured in Japan ensuring high quality and precision.

Product Description

The JST B12B-XADSS-N(LF)(SN) is a high-quality XAD Series Straight Through Hole PCB Header with 12 male contacts arranged in 2 rows and a 2.5 mm pitch, designed for robust wire-to-board connections in electronic assemblies.

The header utilizes a glass-filled PA66 nylon housing that provides excellent resistance to solder cracking and mechanical stress, maintaining reliability in demanding industrial applications.

Its copper alloy contacts with tin plating offer optimal electrical conductivity and corrosion resistance, rated for a maximum current of 3A and voltage of 250V, making it suitable for a broad range of power and signal transmission uses.

The through-hole mounting and solder termination type ensure durable fixing to printed circuit boards, ideal for manufacturing environments requiring secure and permanent connections.

This connector has a wide operating temperature range from -25°C to 85°C, allowing use in various industrial, manufacturing, and electronic repair contexts. The shrouded design prevents connector damage and ensures accurate mating with corresponding receptacles, reducing assembly errors and improving overall system integrity.

Manufactured in Japan, this PCB header meets stringent quality standards and is widely used in high-reliability electronics, industrial machinery, control systems, and automation equipment.

The connector is designed for wire-to-board applications with a straight orientation. Housing made of glass filled nylon ensures solder crack prevention and mechanical strength. Contacts are made from copper alloy with tin plating for reliable conductivity.

Rated for 3A current and up to 250V operation ensuring compatibility with various electronics. Mount type is through hole with solder termination providing strong mechanical and electrical connection. Operating temperature range from -25°C to 85°C suitable for diverse environmental conditions.

Shrouded header design prevents mis-insertion and mechanical damage. Manufactured in Japan ensuring high quality and precision. Explore further to find other JST PCB connectors or related electronic components to complement your project at EnvMart.

Explore more products in our PCB Headers category.
