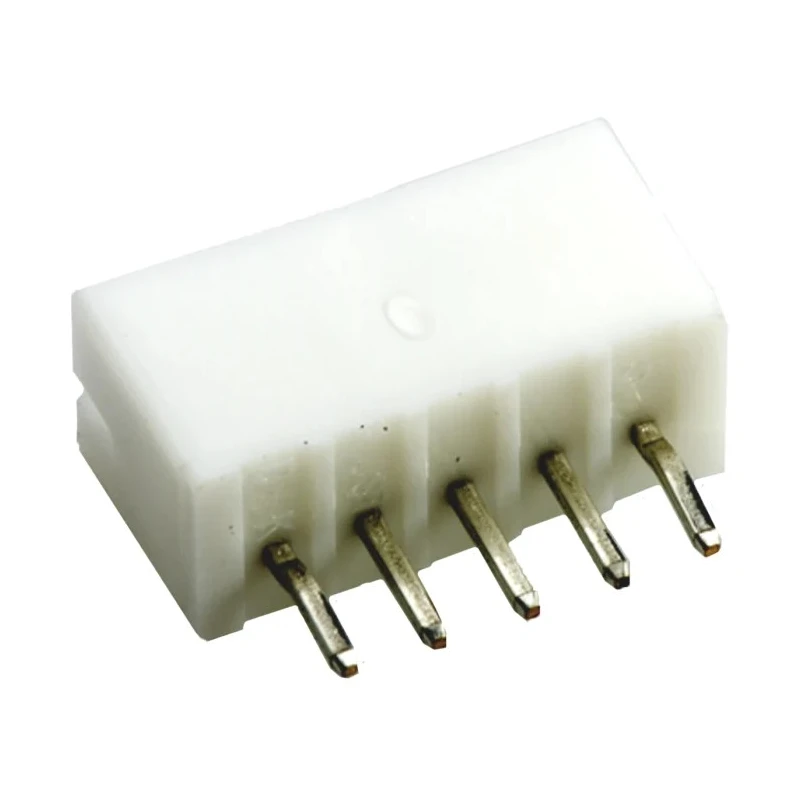

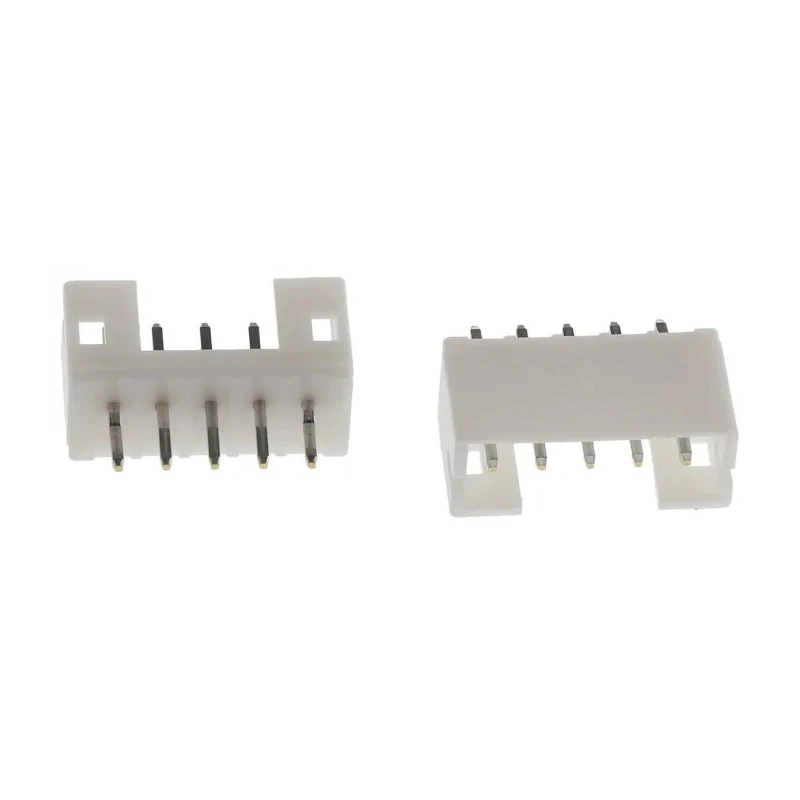

JST PH Series Straight Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded B5B-PH-K-S(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Straight Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded B5B-PH-K-S(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Straight
Current	2A
Model	B5B-PH-K-S(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Female
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.4mm

Key Features

The 2 mm pitch spacing provides a compact layout for high-density PCB applications.
Constructed with polyamide housing ensuring durability and electrical insulation.
Features 5 female contacts made of brass with tin plating for corrosion resistance.
Straight orientation suitable for through-hole mounting on printed circuit boards.
Designed for a rated current of 2A and voltage rating of 100V.
Tail pins and mating pins both have a length of 3.4 mm for secure solder connections.
Operating temperature range from -25°C to 85°C suits a wide range of industrial and electronic environments.
The shrouded housing protects contacts from damage and prevents accidental shorts.

Product Description

The JST B5B-PH-K-S(LF)(SN) is a purpose-designed PH Series straight through hole PCB header featuring 5 contact points and a 2 mm pitch in a single-row configuration. Ideal for wire-to-board connectivity, this connector combines a robust polyamide housing with brass female contacts plated in tin to ensure high reliability and corrosion resistance.

Engineered for industrial and electronic component applications, it supports up to 2A current and voltage of 100V, with a tail pin length and mating pin length of 3.4 mm each, ensuring secure mechanical and electrical connections within printed circuit boards.

Its shrouded design improves safety by protecting the contacts against physical damage and improper mating, while the straight orientation makes it suitable for through-hole mounting methods common in manufacturing environments. The termination type is solder, allowing compatibility with standard soldering techniques.

Operating temperature range extends from -25°C to 85°C, enabling stable performance in diverse environmental conditions across industrial, laboratory, automation, HVAC, and manufacturing sectors.

The 2 mm pitch supports high-density PCB layout requirements. Polyamide material offers durable housing and electrical insulation. Brass contacts with tin plating maximize conductivity and longevity. Shrouded housing enhances contact protection and operational safety.

Supports 2A current at 100V allowing reliable signal transmission. Suitable for wire-to-board connector system in electronic assemblies.

This PCB header is a high-quality component suitable for integration into electronic devices and systems demanding reliable electrical connections with physical protection and high manufacturing compatibility.
