| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | BAS21AW,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAS21 |
| Maximum Operating Temperature | 150°C |
| Package Type | SC-70 |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Common Anode |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.5A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 4ns |
| Maximum Forward Current If | 225mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 250V |

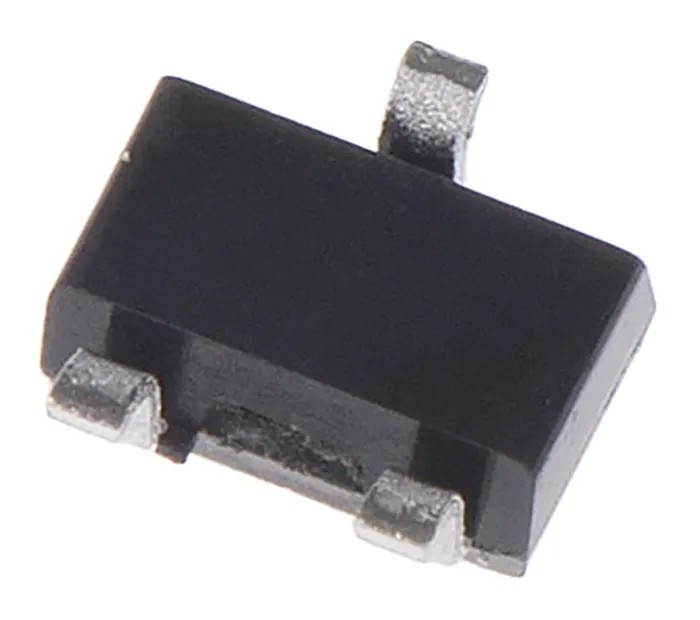

The Nexperia BAS21AW,115 is a silicon junction switching diode designed for high-density circuit designs requiring low leakage currents and fast switching speeds. It features a common anode configuration and is housed in an SC-70 surface mount package, making it suitable for compact PCB layouts.
This diode supports a maximum continuous forward current of 225 mA and can withstand peak reverse repetitive voltages up to 250 V, ensuring reliable performance in switching and signal processing applications.
With a maximum power dissipation of 200 mW and operating temperature range from -55°C to 150°C, this component is suitable for demanding industrial and commercial environments.
The diode also offers a rapid peak reverse recovery time of 4 nanoseconds, facilitating efficient switching at high frequencies in telecommunications, power electronics, and control systems.
Its 3-pin common anode configuration allows integration into various circuit topologies while maintaining minimal footprint and weight. This diode is ideal for use in electronic components for power & connectors, semiconductor discrete components, and switching diode applications.
Maximum forward current of 225 mA ensuring efficient current conduction. Low capacitance and high voltage characteristics for circuit reliability. Compact SC-70 package suitable for surface mount technology. Peak forward surge current up to 2.5 A for transient handling.
Wide operating temperature range suitable for industrial uses. Fast recovery time enhancing switching performance at high frequencies. Robust construction supporting customized circuit designs. It is suitable for applications across industrial, manufacturing, power supply, and telecommunications sectors.
