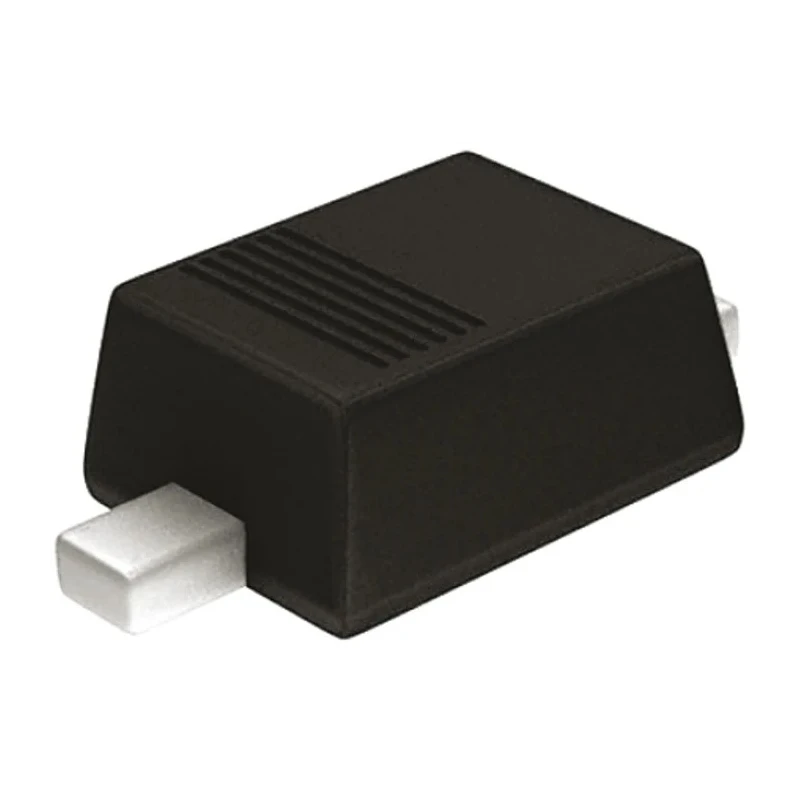

Nexperia 1.8 V 550 mW General Purpose Surface Mount Single Zener Diode 2-Pin SOD-323 BZX84J-C8V2,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1.8 V 550 mW General Purpose Surface Mount Single Zener Diode 2-Pin SOD-323 BZX84J-C8V2,115

Name: Nexperia 1.8 V 550 mW General Purpose Surface Mount Single Zener Diode 2-Pin SOD-323 BZX84J-C8V2,115
Brand: Nexperia
SKU: 133152
Price: 0.06 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.8mm
Length	2.7mm
Model	BZX84J-C8V2,115
Mount Type	Surface
Series	BZX84J
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	550mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	700nA
Nominal Zener Voltage Vz	8.2V
Zener Type	General Purpose
Maximum Zener Impedance	10Ω
Typical Voltage Temperature Coefficient	3.2mV/K
Diodes Inc, 24V Zener Diode 2.5% 500 mW SMT 2-Pin SOD-323FBrand	DiodesZetex
- Non-repetitive Peak reverse power dissipation	40mW
- Total power dissipation	550mW
- Wide working voltage range	nominal 2.4V to 75V (E24 range)
- Two tolerance series	2% and 5%

Key Features

The diode features a nominal Zener voltage of 8.2 V with 5% tolerance.
Maximum power dissipation of 550 mW enables stable voltage regulation.
Compact SOD-323 plastic package supports surface mounting in compact PCBs.
Operating temperature range from -55°C to 150°C suits harsh environments.
Low reverse leakage current ensures minimal power loss in circuits.
Automotive grade with AEC-Q101 qualification peak reverse power dissipation is 40 mW.
Typical voltage temperature coefficient is 3.2 mV/K for precise voltage stability.
Pin count is 2, facilitating standard diode connections on PCBs.

Product Description

Nexperia BZX84J-C8V2,115 is a 1.8 V, 550 mW general purpose surface mount single Zener diode housed in a compact 2-pin SOD-323 package. Designed for electronic regulation functions, it provides reliable voltage reference and protection in electronic circuits.

This Zener diode supports a nominal voltage of 8.2 V with a tolerance of 5%, operating efficiently within a temperature range of -55°C to 150°C, making it suitable for industrial, automotive, and commercial electronic applications. It complies with the automotive standard AEC-Q101, ensuring rugged and reliable performance under automotive environmental conditions.

The maximum power dissipation rating of 550 mW and non-repetitive peak reverse power dissipation of 40 mW allow robust voltage regulation under transient conditions. The diode’s low reverse leakage current and typical voltage temperature coefficient of 3.2 mV/K contribute to minimal power loss and stable voltage output across temperature variations.

The device features a small, flat plastic SOD-323 package suitable for compact surface mount technology (SMT) assembly on printed circuit boards, enabling space-saving designs in modern electronic equipment.

The diode is single configuration with 2 pins facilitating standard circuit integration. Nominal test current is 5 mA, providing reliable benchmark testing parameters. Low Zener impedance of 10 Ω helps maintain voltage regulation accuracy.

Two tolerance series options, 2% and 5%, accommodate diverse design precision needs. Wide working voltage range from 2.4 V to 75 V (E24 range) covers extensive application requirements.

Typical applications include voltage regulation and protection in industrial control systems, automotive electronics, telecommunications, consumer electronics, and power supplies. The small SMD plastic package eases automated assembly on high-density boards.

Nexperia’s BZX84J series continues to be a popular choice for compact and reliable voltage regulation in a variety of electronic systems. Explore additional semiconductor products and components on EnvMart for comprehensive sourcing of electronic components.
