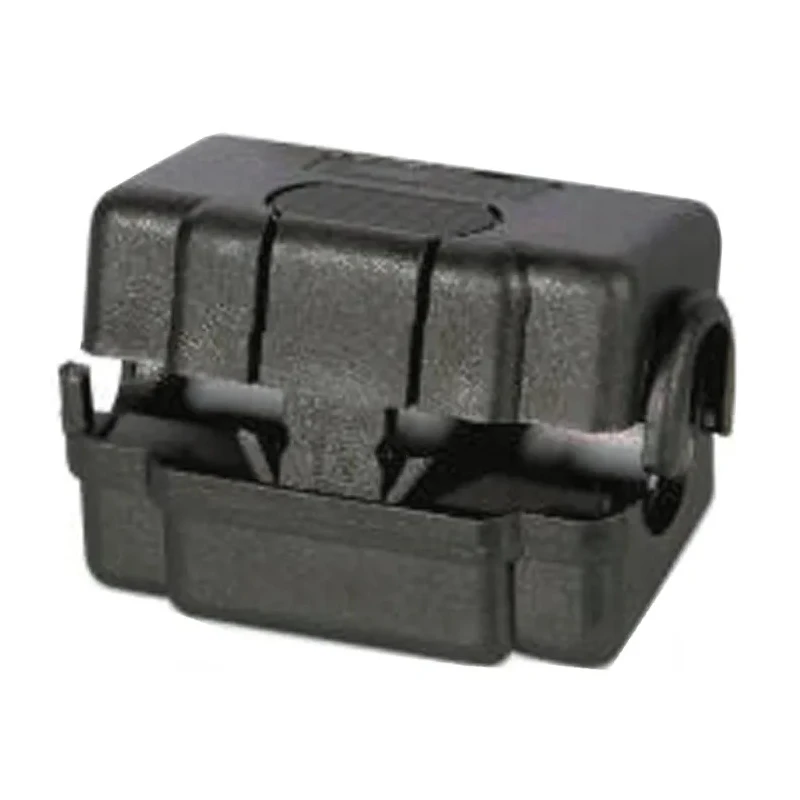

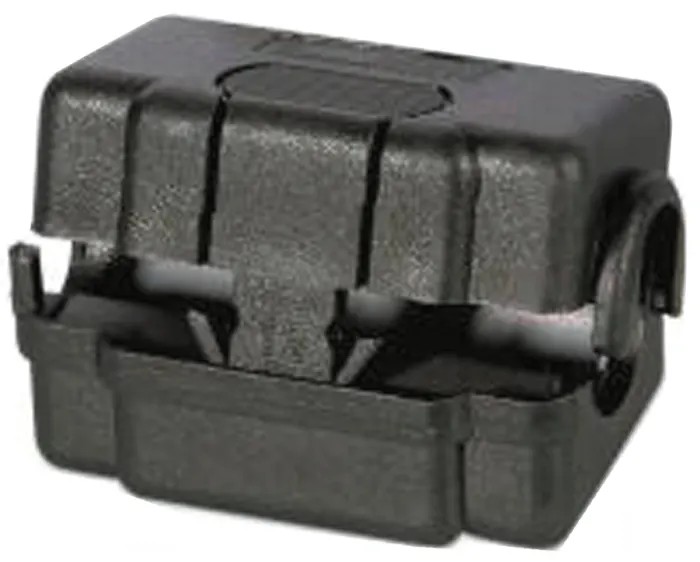

Wurth Elektronik Openable Diameter 8 mm Snap Ferrite Sleeve, STAR-GAP Series, 223Ω @ 25 MHz, 417Ω @ 100 MHz, 250Ω @ 74271633
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Wurth Elektronik |
| Material | 4W620 |
| Model | 74271633 |
| Series | STAR-GAP |
| Aperture diameter | 8mm |
| Sub Type | Snap Ferrite |
| External Width | 35.1mm |
| External Depth | 21.7mm |
| External Height | 19mm |
| Standards/Approvals | REACH, RoHS |
| Impedance at 100 MHz | 417Ω |
| Impedance at 25 MHz | 223Ω |
| Number of Apertures | 1 |
| RS PRO Openable, Diameter 6.5 mm Ferrite Clamp, Apertures | 1 33 mm 20 mm 20.5 mm, For Internal & External Power Cable,RS Stock No.: 123-2483Brand: RS PRO |
| Impedance at 300 MHz | 250Ω |
| Impedance at 500 MHz | 354Ω |
| Wurth Elektronik Openable, Diameter 8 mm Ferrite Sleeve, Apertures | 1 35.1 mm 18.2 mm 21.7 mm, For EMI SuppressionBrand: Wurth Elektronik |
Key Features
- Impedance of 223 ohms at 25 MHz ensures efficient noise suppression.
- Supports safety relevant and general applications in electronic components.
- Constructed from 4W620 material with a snap-in lock and split ferrite design.
- Features a gapped structure to enhance impedance and performance at high frequencies.
- Compatible with high-speed data lines such as CAT5 and LAN networks.
- Plastic casing made from UL94-V0 rated material ensures durability and safety.
- Measures 35.1 mm width, 21.7 mm depth, and 19 mm height for easy cable fitting.
- Suitable for use in industrial controllers, medical engineering, and office machines.
Product Description
Wurth Elektronik 74271633 is an openable snap ferrite sleeve with an 8 mm aperture diameter, manufactured under the STAR-GAP series. It offers excellent EMI suppression for safety relevant and general electronic applications by providing impedance values of 223Ω at 25 MHz, 417Ω at 100 MHz, 250Ω at 300 MHz, and 354Ω at 500 MHz. Constructed from 4W620 ferrite material, this sleeve incorporates a gapped design and a patented snap-in lock mechanism to ensure secure fitment while maintaining low magnetic saturation, ideal for high DC current environments.
The split ferrite core design reduces electromagnetic interference effectively, making it suitable for RF applications and high-speed data lines like CAT5 and LAN networks. Its plastic casing meets UL94-V0 flammability standards, offering durability and protection. The external dimensions of 35.1 mm width, 21.7 mm depth, and 19 mm height allow fitting over cables already installed, with optional fixing via glue or cable ties.
This ferrite sleeve is widely used across industrial controllers, medical equipment, office machines, and computer technology to minimize noise in data and power cables. The country of origin is Germany, ensuring quality manufacturing. Please note the safety key (part number 74271) is sold separately and is recommended for secure locking of the sleeve.
Efficient EMI noise suppression at multiple frequencies up to 500 MHz. Durable snap-in lock mechanism for secure installation. Compatible with high-speed data and power cables. Flame retardant plastic housing rated UL94-V0.
Gapped design optimizes magnetic performance. Convenient installation on pre-installed cables. Indispensable for industrial and medical electronic equipment. Manufactured to high German quality standards. Explore more in our Ferrite Sleeve category for reliable EMI protection components by Wurth Elektronik and other trusted brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance values for this ferrite sleeve are 223Ω at 25 MHz, 417Ω at 100 MHz, 250Ω at 300 MHz, and 354Ω at 500 MHz.
The aperture diameter of this model is 8 mm.
It is constructed from 4W620 ferrite material and features a plastic casing that meets UL94-V0 flammability standards.
The external dimensions are 35.1 mm in width, 21.7 mm in depth, and 19 mm in height.
This ferrite sleeve is suitable for use in industrial controllers, medical engineering, office machines, and computer technology.
The patented snap-in lock mechanism ensures a secure fitment while allowing easy installation over cables.
It complies with REACH and RoHS standards.
Yes, it is compatible with high-speed data lines such as CAT5 and LAN networks.
Yes, the safety key (part number 74271) is recommended for secure locking of the sleeve and is sold separately.
The gapped design enhances impedance and performance at high frequencies, optimizing magnetic performance.
This product is manufactured in Germany, ensuring quality production standards.
The weight of this ferrite sleeve is not specified in the provided data.
