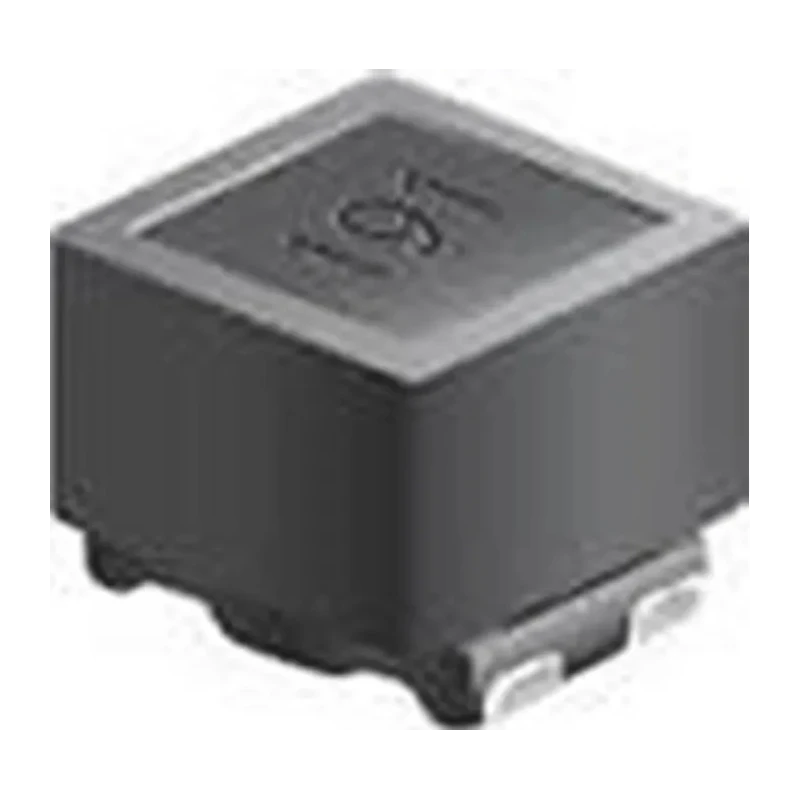

Bourns Shielded Surface Mount Common Mode Line Filter with Ferrite Core 600 nH ±35% 5 A Idc SRF0504
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.7mm |
| Length | 5mm |
| Model | SRF0504 |
| Depth | 5.2mm |
| Packaging | Reel |
| Series | SRF0504 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance Range | 0.60 to 6.0 μH |
| Inductance | 600nH |
| Standards/Approvals | RoHS |
| Package/Case | 0504 |
| Maximum DC Current | 5A |
| Pin Count | 2 |
| Maximum DC Resistance | 20mΩ |
| Inductance Tolerance | ±35 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.2GHz |
| Inductor Construction | Wirewound |
Key Features
- This filter features a 0504 package with a length of 5 mm for compact surface mount applications.
- It includes shielding to reduce electromagnetic interference and improve circuit performance.
- The device operates within a temperature range of -40°C to 125°C, ensuring reliability in diverse environments.
- The filter has a maximum DC resistance of 20 mΩ and an inductance tolerance of ±35%.
- Constructed with a ferrite core and wirewound inductor design for efficient EMI suppression.
- Features a maximum self-resonant frequency of 1.2 GHz for high-frequency circuit compatibility.
- Termination style is solder, suitable for automated PCB assembly.
- The filter is RoHS compliant, molded, and designed as part of the SRF0504 series.
Product Description
Bourns SRF0504 shielded surface mount common mode line filter with ferrite core is designed for high-performance electromagnetic interference (EMI) suppression in surface mount applications. It offers an inductance of 600 nH with ±35% tolerance and handles a maximum DC current rating of 5 A Idc, making it suitable for a variety of industrial and electronic system uses.
Encased in a compact 0504 package with dimensions approximately 5 mm in length, this filter includes effective shielding to minimize noise in sensitive electronic circuits. It operates reliably between -40°C and 125°C, conforming to RoHS standards and featuring a wirewound construction for superior signal filtering.
This device exhibits a maximum DC resistance of 20 mΩ and a maximum self-resonant frequency of 1.2 GHz, ensuring efficient filtering over a wide frequency range. Its solder termination style supports surface mounting on printed circuit boards, facilitating automated manufacturing processes.
The ferrite core material used in this common mode choke enhances its inductance stability and performance under various load conditions. The SRF0504 series is well-regarded in EMI suppression applications in industrial equipment, communication devices, power supplies, and automotive electronics.
This line filter reduces electrical noise, improving system reliability. The wirewound inductor design supports efficient power handling and EMI attenuation. Its RoHS compliance ensures environmental safety and regulatory conformance.
The compact 0504 package allows for space-saving circuit designs. Suitable for use in industrial electronics, telecommunications equipment, and consumer electronics manufacturing. The component's temperature range supports usage in harsh environments.
Explore Bourns and SRF0504 series products on EnvMart for advanced EMI filtering solutions and high-quality Surface Mount Inductors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this filter is 600 nH with an inductance tolerance of ±35%.
It has a maximum DC current rating of 5 A Idc.
This model has dimensions of approximately 5 mm in length, 5.2 mm in depth, and 4.7 mm in height.
The maximum self-resonant frequency of this filter is 1.2 GHz.
It operates within a temperature range of -40°C to 125°C.
The core material used in this common mode choke is ferrite.
The termination style is solder, suitable for automated PCB assembly.
The maximum DC resistance is 20 mΩ.
Yes, this filter is RoHS compliant, ensuring it meets environmental safety standards.
It features a wirewound inductor construction for efficient EMI suppression.
The filter is packaged in a reel format.
This filter is suitable for use in industrial electronics, telecommunications equipment, and consumer electronics manufacturing.
