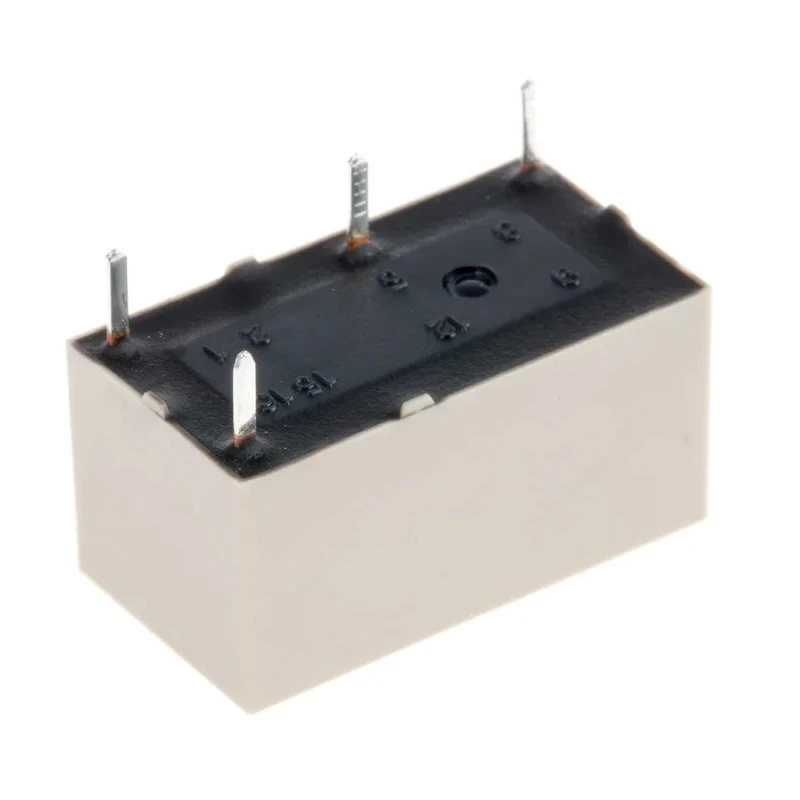

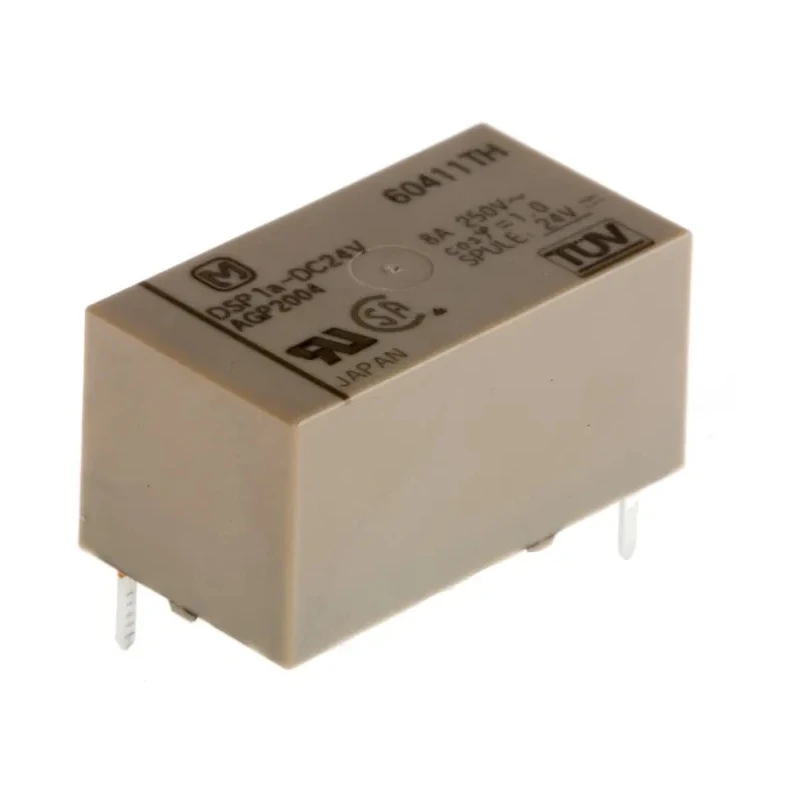

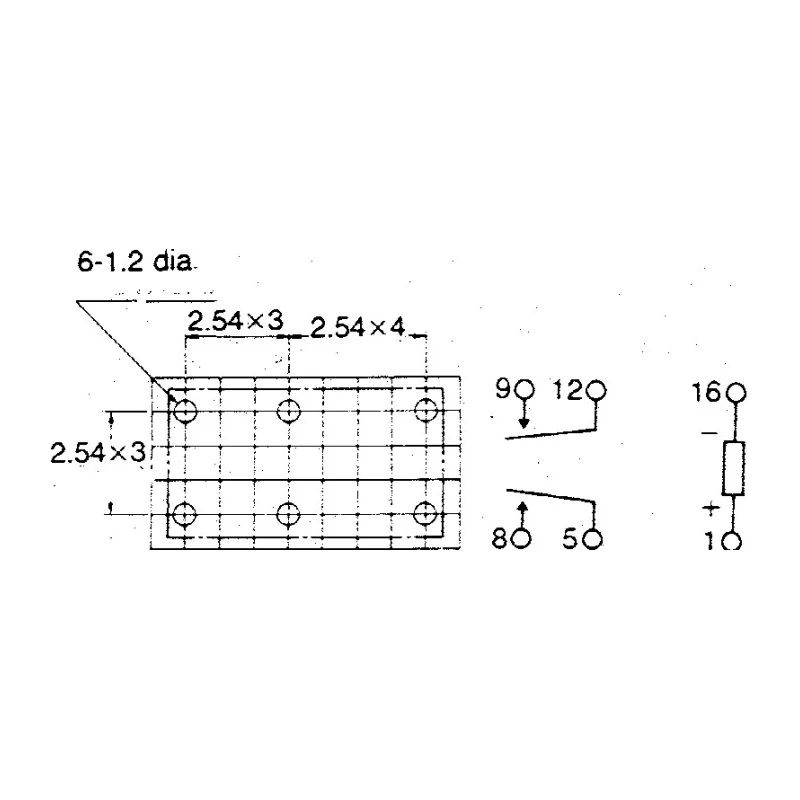

Panasonic PCB Power Relay 24V DC Coil 5A Switching Current SPST DSP1A24D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10mm |
| Length | 20.2mm |
| Model | DSP1A24D |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DSP1A |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | VDE, UL, CSA |
| Coil Resistance | 1.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 300mW |
| Switching Power | 150W |
Key Features
- The relay features a sealed construction that allows automatic washing.
- It supports a switching DC voltage up to 125V and AC voltage up to 125V.
- Compact dimensions of 20.2mm length, 11mm width, and 10mm height make it ideal for PCB mounting.
- Coil resistance is 1.9kΩ with coil power consumption of 300mW, enhancing energy efficiency.
- Operating temperature ranges from -40°C to 60°C ensuring reliability in varied environments.
- Contact material is silver alloy with a low contact resistance of 30mΩ.
- Relay is approved by VDE, UL, and CSA standards for safety and quality assurance.
- Typical applications include industrial electronics, measuring instruments, temperature controllers, and PLCs.
Product Description
Panasonic DSP1A24D PCB Power Relay is a high-performance miniature power relay designed for PCB mounting with high switching capacity and sensitivity. This relay operates with a 24V DC coil and provides a switching current rating of 5A using a Single Pole Single Throw (SPST) contact configuration.
The relay has a sealed construction that allows for automatic washing, making it suitable for reliable operation in industrial and commercial electronic devices. Its compact size (20.2mm length, 11mm width, and 10mm height) enables easy integration into circuit designs.
The coil resistance of 1.9kΩ and coil power of 300mW ensure low power consumption while maintaining effective performance. It supports switching voltages up to 125V DC and 125V AC, providing versatile electrical capabilities.
Operating temperature range is from -40°C to 60°C, allowing the relay to withstand challenging temperature conditions. The contact material is a durable silver alloy with a very low contact resistance of 30mΩ, ensuring efficient electrical conductivity and longevity.
Certified by key international standards including VDE, UL, and CSA, the DSP1A24D series relay is trusted for high safety and quality levels. Its typical uses span across industrial electronic devices, measuring instruments, temperature controllers, and programmable logic controllers (PLCs).
The relay's miniature size and high sensitivity make it ideal for compact electronic assemblies. Sealed construction provides reliability in harsh environments. High switching capacity supports demanding electrical loads up to 150W switching power.
Automatic washing capability enhances production and maintenance efficiency. Multiple industry certifications ensure compliance with global standards. Designed specifically for PCB mounting with PCB pin terminals.
This Panasonic PCB power relay is suitable for applications in industrial automation, commercial electronics, and HVAC systems. Discover high quality and reliable Power Relay solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 5A.
This model operates with a coil voltage of 24V DC.
The relay measures 20.2mm in length, 11mm in width, and 10mm in height.
It supports a maximum switching voltage of 125V DC and 125V AC.
The relay features a Single Pole Single Throw (SPST) contact configuration.
The contact material is silver alloy, which provides low contact resistance.
The coil resistance is 1.9kΩ.
It operates within a temperature range of -40°C to 60°C.
The coil power consumption is 300mW.
The relay is approved by VDE, UL, and CSA standards.
Typical applications include industrial electronics, measuring instruments, temperature controllers, and PLCs.
This model is designed for PCB mounting with PCB pin terminals.
