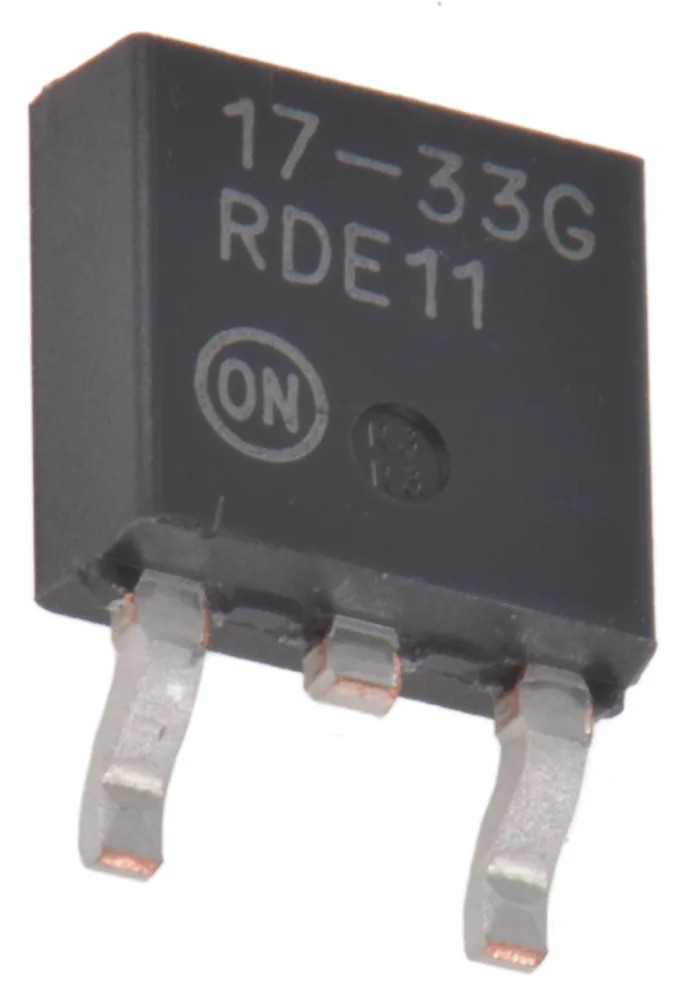

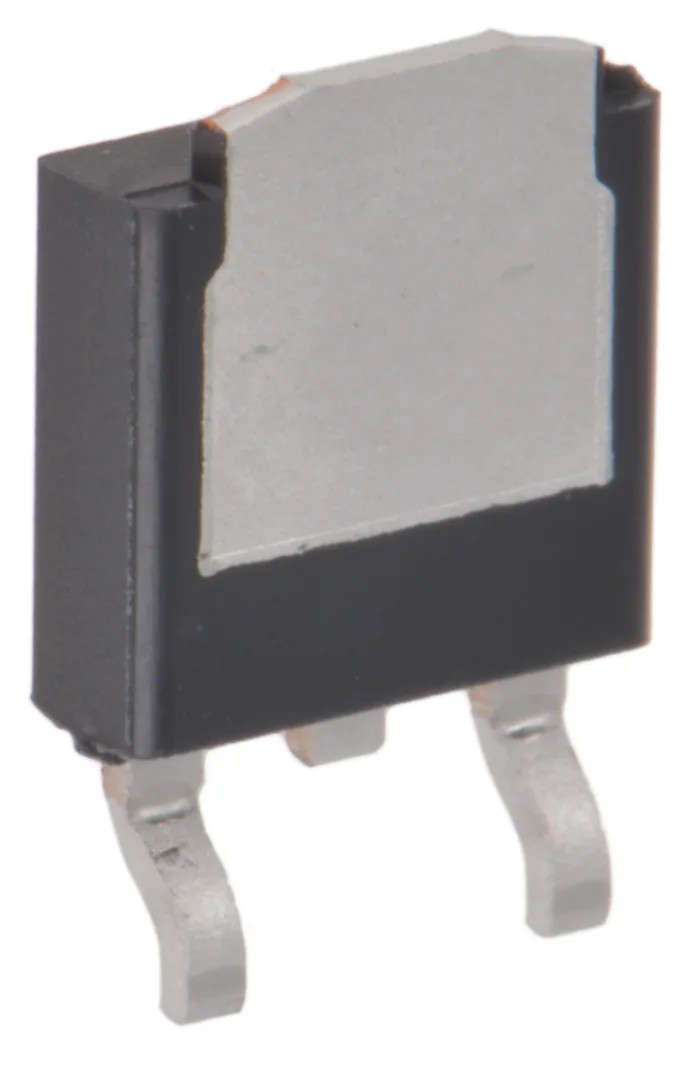

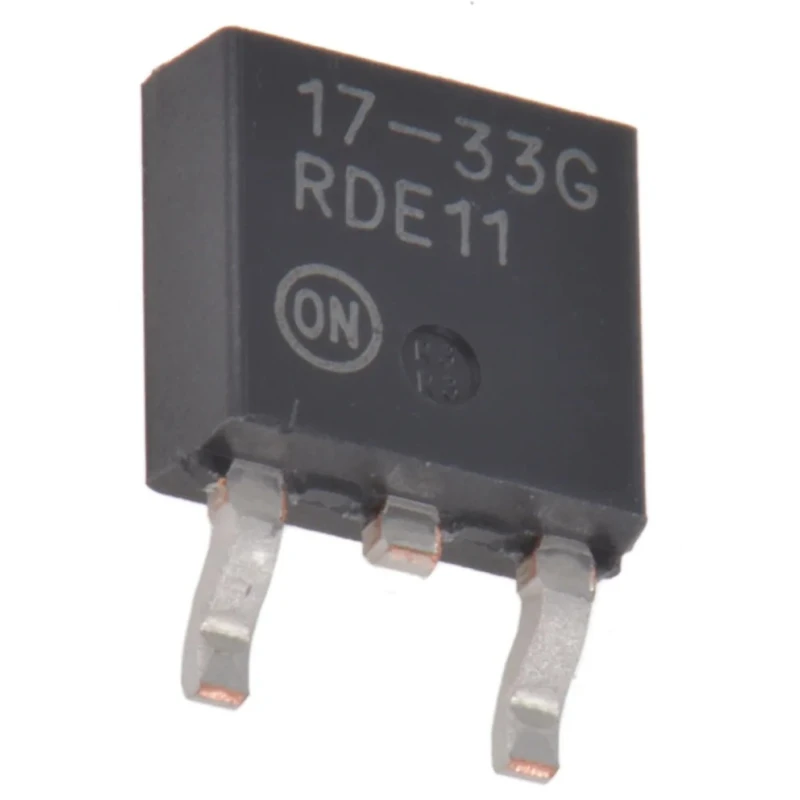

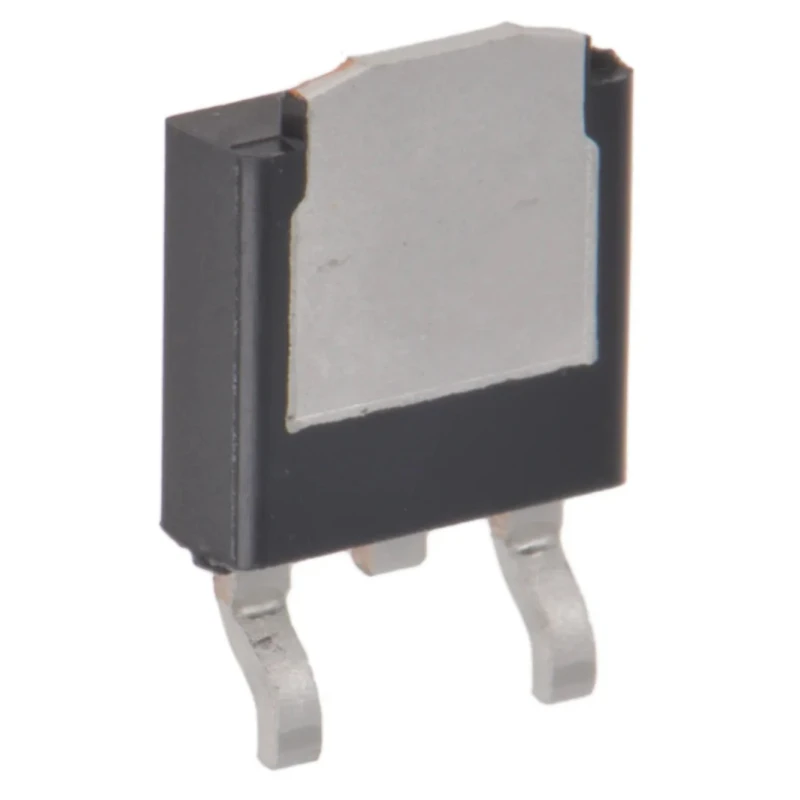

onsemi Voltage Regulator 20V 3-Pin Surface Mount NCP1117DT33T5G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi NCP1117DT33T5G, Voltage Regulator 20V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | NCP1117DT33T5G |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | NCP1117 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 20V |
| Quiescent Current | 10mA |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Supports output current exceeding 1A with low dropout voltage.
- Fixed and adjustable voltage options available for flexible use.
- Features current limit and thermal shutdown protection for reliability.
- Operates at maximum input voltage of 20V with quiescent current of 10mA.
- Complies with automotive standard AEC-Q100 for enhanced durability.
- Compact dimensions of 6.73mm length, 6.22mm width, and 2.38mm height.
- Suitable for consumer and industrial equipment power management applications.
- Available in SOT-223 and DPAK packages for versatile mounting options.
Product Description
onsemi NCP1117DT33T5G voltage regulator is a high-performance linear low dropout (LDO) regulator designed for positive voltage regulation applications with a maximum input voltage rating of 20V. This surface mount device features a 3-pin configuration and supports output currents exceeding 1A, making it suitable for a wide range of industrial, consumer, and automotive electronic systems.
The device offers both fixed and adjustable voltage output options, with fixed versions requiring no minimum load to maintain regulation. The maximum dropout voltage is 1.2V at 800mA over temperature, providing improved efficiency compared to other three-terminal adjustable regulators. Built-in current limit and thermal shutdown protect the device and downstream circuits from damage under fault conditions.
Its compact footprint (6.73mm length, 6.22mm width, 2.38mm height) and surface mount construction ease integration into modern PCBs. This model complies with the AEC-Q100 automotive standard, underscoring its reliability and ruggedness, making it ideal for automotive systems as well.
Output current capability of over 1A. Fixed and adjustable voltage output types for versatility. Low dropout voltage of 1.2V maximum at 800mA. Built-in current limiting and thermal shutdown protection. Automotive grade with AEC-Q100 certification.
Compact 3-pin surface mount package. Ideal for consumer, industrial, and automotive equipment power regulation.
This onsemi NCP1117DT33T5G voltage regulator is essential for precise power management tasks such as battery chargers, switching power supply post regulation, hard drive controllers, and SCSI termination. It supports stable low noise operation with low quiescent current, making it an ideal component in sensitive analog and digital circuits.
Explore the full range of power management ICs and Voltage Regulators in the EnvMart catalog to find the best components for your specific electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the NCP1117DT33T5G voltage regulator is 20V.
This model supports output currents exceeding 1A, making it suitable for various applications.
The compact dimensions of this voltage regulator are 6.73mm in length, 6.22mm in width, and 2.38mm in height.
The maximum dropout voltage is 1.2V at 800mA over temperature.
It complies with the AEC-Q100 automotive standard, which enhances its reliability for automotive applications.
The quiescent current for this voltage regulator is 10mA.
The NCP1117DT33T5G offers both fixed and adjustable voltage output options for flexible use.
This model features a surface mount construction, which facilitates integration into modern PCBs.
It includes built-in current limiting and thermal shutdown protection to safeguard the device and downstream circuits.
The maximum operating temperature for this model is 125°C.
It is suitable for consumer, industrial, and automotive equipment power management applications.
This voltage regulator has a 3-pin configuration.
