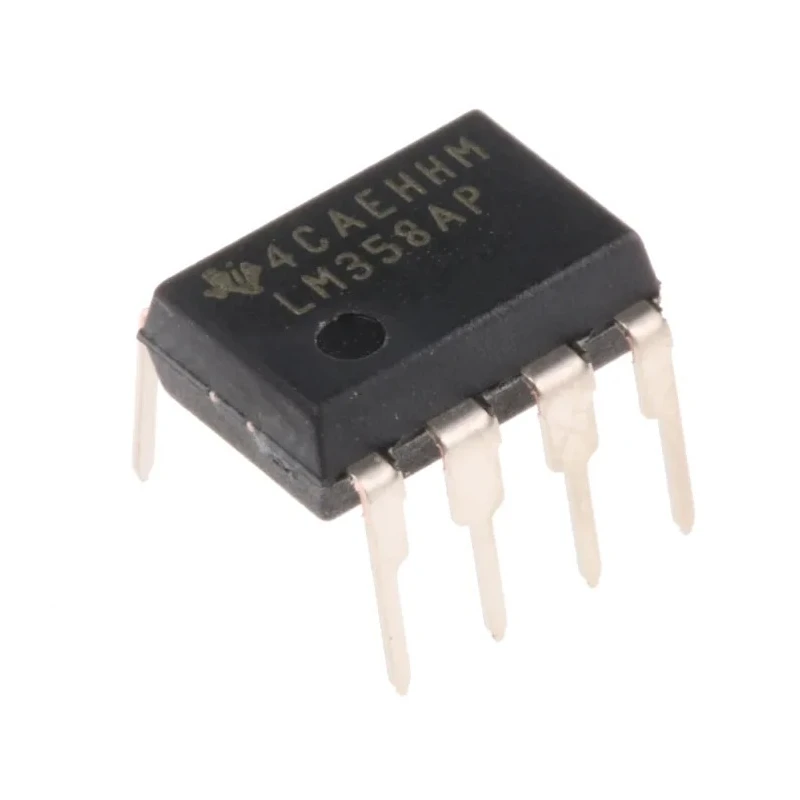

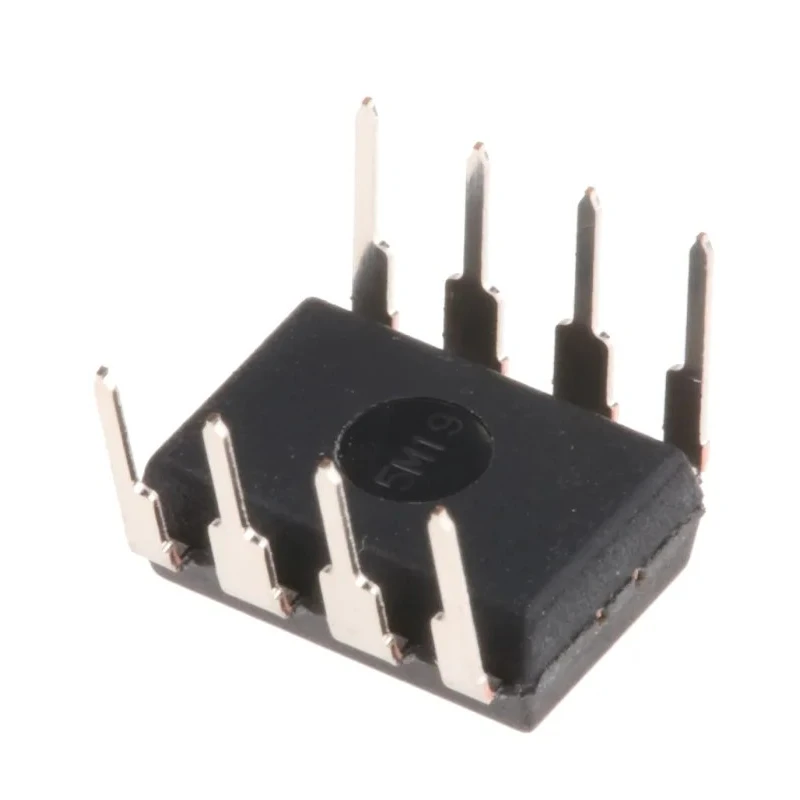

Texas Instruments Operational Amplifier 700 kHz 8-Pin 30V PDIP LM358AP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | LM358AP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM358A |
| Output Current | -60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -100 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 30 nA |
Key Features
- Designed for general-purpose applications requiring low power consumption.
- Operates with supply voltages from 5V to 30V, maximizing flexibility.
- Features 700kHz gain bandwidth product ensuring reliable signal amplification.
- Input offset voltage of 3 mV and low input bias current of -100 nA.
- Includes a slew rate of 0.3 V/μs supporting moderate signal change rates.
- Temperature operation range from 0°C to 70°C for standard conditions.
- Compact dimensions with 9.81mm length, 6.35mm width, and 4.57mm height.
- Manufactured to RoHS compliance standards ensuring environmental safety.
Product Description
The Texas Instruments LM358AP is a versatile dual channel operational amplifier designed for various electronic circuit applications, providing a gain bandwidth of 700 kHz and housed in an 8-pin PDIP package. This component supports a voltage supply range from 5V up to a maximum of 30V, making it adaptable to multiple operating environments.
Its low input bias current of -100 nA and an input offset voltage of 3 mV ensure minimal distortion and precise amplification, which are critical in analog signal processing and control systems. With a slew rate of 0.3 V/μs, the amplifier efficiently handles moderate frequency signal changes.
Operating reliably within a temperature range of 0°C to 70°C, the LM358AP is ideal for standard industrial and consumer electronics use. The 8-pin PDIP package facilitates easy through-hole mounting for prototyping and production assembly.
Further benefits include RoHS compliance, ensuring the device meets environmental safety standards. The compact physical size supports applications with space constraints. General purpose dual operational amplifier with low power consumption.
Wide supply voltage range from 5 to 30 volts. Gain bandwidth product of 700 kHz for effective signal amplification. Low input bias current and offset voltage for improved signal accuracy. Slew rate of 0.3 V/μs for stable signal transitions.
Standard temperature operating range of 0°C to 70°C. RoHS compliant for eco-friendly usage. 8-pin PDIP package suitable for through-hole mounting. Output current capability of -60 mA for typical electronic loads.
This Operational Amplifier is well suited for industrial equipment, test and measurement instrumentation, consumer electronics, and automotive control systems where reliability and precision are essential.
Explore more Texas Instruments semiconductor products at EnvMart for comprehensive electronics component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM358AP has a gain bandwidth product of 700 kHz, which ensures effective signal amplification in various applications.
This model operates with a supply voltage range from 5V to a maximum of 30V, providing flexibility for different circuit designs.
The input offset voltage of this operational amplifier is 3 mV, contributing to its precision in signal processing.
The LM358AP features a low input bias current of -100 nA, which helps minimize distortion in signal amplification.
This operational amplifier can deliver a maximum output current of -60 mA, suitable for typical electronic loads.
The operational amplifier operates reliably within a temperature range of 0°C to 70°C, making it suitable for standard conditions.
The dimensions of this model are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, allowing for compact designs.
It is housed in an 8-pin PDIP package, which facilitates easy through-hole mounting for prototyping and production.
The slew rate of this operational amplifier is 0.3 V/μs, which supports moderate signal change rates effectively.
Yes, the LM358AP is manufactured to RoHS compliance standards, ensuring it meets environmental safety requirements.
This operational amplifier is suitable for various applications including industrial equipment, test and measurement instrumentation, consumer electronics, and automotive control systems.
The LM358AP is a dual-channel operational amplifier, providing two amplification paths in a single package.
