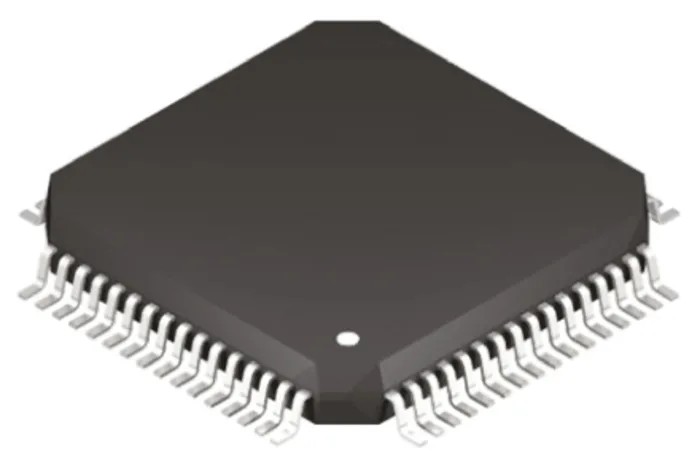

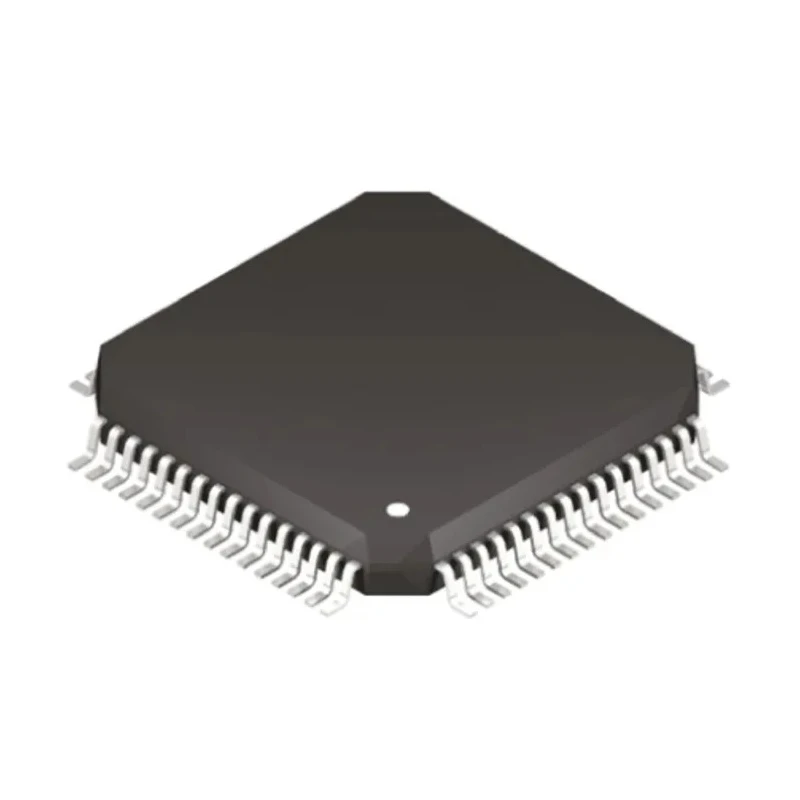

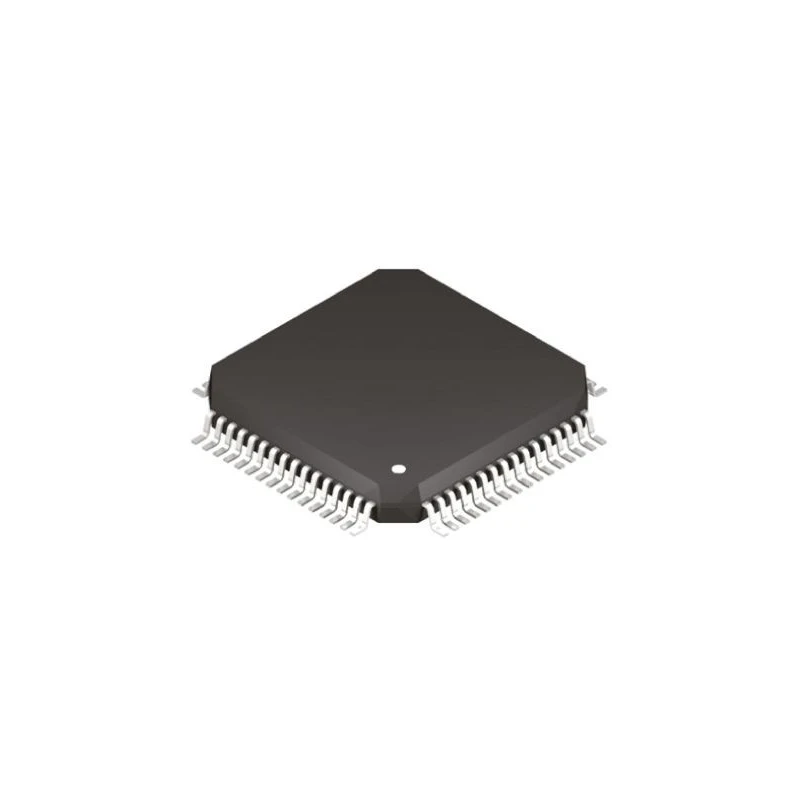

Microchip 16 bit Digital Signal Processor 60 MHz 512kB FLASH 64-Pin TQFP DSPIC33EP512MC506-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33EP512MC506-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 48kB |
| ADC Resolution | 19bit |
| Timer Resolution | 32bit |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 60MHz |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 16 |
| Number of PWM Channels | 6 |
Key Features
- The processor has a 16 bit data bus width and Harvard architecture for efficient instruction processing.
- It supports a maximum CPU speed of 60 MHz and delivers up to 70 Million Instructions per Second (MIPS).
- Features 48 kB RAM and 512 kB flash program memory for robust data handling and program storage.
- The device supports 2 ADCs, 6 PWM channels, and 1 PWM unit, ideal for complex signal processing tasks.
- Designed with surface mount package type, measuring 10 mm length, 10 mm width, and 1.05 mm height.
- Operates within a supply voltage range of 3 to 3.6 V and temperature range from -40°C to 85°C.
- Equipped with automotive standard AEC-Q100 for reliability in demanding environments.
- Includes a 16-bit ADC resolution, 19-bit ADC channels, and a 32-bit timer resolution for precise control.
Product Description
Microchip DSPIC33EP512MC506-I/PT is a 16 bit Digital Signal Processor operating at 60 MHz maximum clock frequency, with 512kB FLASH memory and a 64-pin TQFP package. It is designed using the dsPIC33E core, delivering up to 70 MIPS performance for advanced signal processing needs.
This microcontroller features a 16 bit data bus width and Harvard architecture for efficient and high-speed instruction execution. It includes 48kB RAM and 512kB of flash program memory, providing sizable memory resources for demanding applications. The device supports a supply voltage range from 3V to 3.6V and operates reliably in extreme temperatures between -40°C and 85°C.
Equipped with 2 analog-to-digital converters (ADCs), 6 PWM channels, and a 16-bit ADC resolution, the processor supports precision signal measurement and control. Its package size is compact, with dimensions of 10 mm length, 10 mm width, and 1.05 mm height, suitable for surface mount assembly.
The DSPIC33EP512MC506-I/PT offers extensive peripheral integration including two UART modules, two SPI modules, two I2C modules, and an ECAN module, enhancing its connectivity options. Safety and operational integrity are guaranteed with features such as power-on reset, brown-out reset, watchdog timer, and automotive standard AEC-Q100 compliance.
This digital signal processor is ideal for embedded systems requiring high-speed digital signal processing capabilities in industrial, automotive, telecommunications, and commercial applications. It supports complex waveform generation, motor control, and audio processing tasks.
The processor achieves a maximum of 60 MHz clock frequency with 70 MIPS processing power. Contains 48 kB RAM and a large 512 kB FLASH memory for program storage. Features multiple timers with a 32-bit timer resolution for precise timing control.
Includes multiple communication interfaces such as UART, SPI, I2C, and ECAN for system integration. Supports automotive standard AEC-Q100 for high reliability in automotive and harsh environments. Incorporates advanced ADC and PWM modules for accurate signal conversion and control.
Explore the complete range of Digital Signal Processors from Microchip on EnvMart for advanced electronics and embedded designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 60 MHz.
It features a program memory size of 512 kB FLASH.
This unit supports 2 analog-to-digital converters (ADCs).
It operates within a temperature range from -40°C to 85°C.
The processor has a RAM size of 48 kB.
There are 6 PWM channels available on this model.
It comes in a TQFP package type with dimensions of 10 mm length, 10 mm width, and 1.05 mm height.
The supply voltage range is from 3V to 3.6V.
It uses a Harvard architecture for efficient instruction processing.
It complies with the automotive standard AEC-Q100.
The DSPIC33EP512MC506-I/PT delivers up to 70 Million Instructions per Second (MIPS).
It includes 1 timer with a 32-bit resolution.
