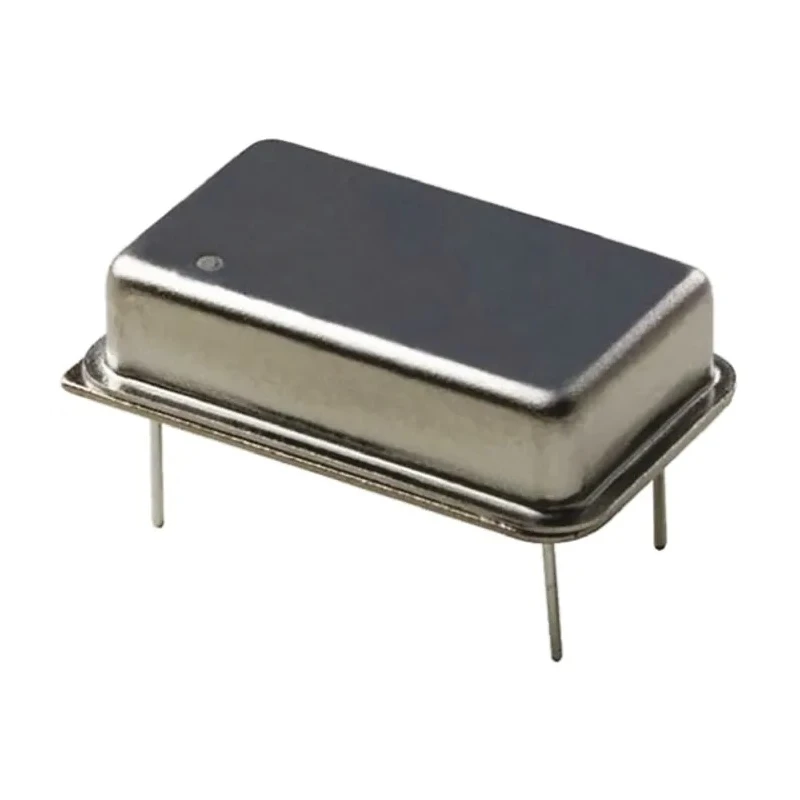

QANTEK 9.8304MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B9.830400B50TT

QANTEK QX14T50B9.830400B50TT is a high-quality XO type Crystal Oscillator designed for precision frequency generation at 9.8304MHz. Featuring ±50 ppm frequency stability and HCMOS output levels, this oscillator caters to demanding industrial, communication, and electronic applications where signal accuracy and reliability are paramount.

The oscillator is housed in a robust 14-pin Dual-in-Line (DIP-14) package, suitable for through-hole mounting on printed circuit boards, ensuring ease of integration. Its hermetically sealed construction provides excellent durability, minimizing aging and environmental influences over prolonged use.

Operating within a temperature range from -40°C to 85°C and a 5V maximum supply voltage, the device is adaptable for a wide variety of applications in industrial controls, measurement instrumentation, and consumer electronics. The tristate enable/disable function offers additional flexibility for power management and signal control.

With a load capacitance of 50pF, the oscillator achieves stable and precise frequency output, essential for timing-critical circuits. Its compact dimensions (20.8mm length, 13.2mm width, and 5.08mm height) facilitate usage even in space-constrained assemblies.

Operates at a frequency of 9.8304MHz with ±50 ppm stability. Features industry-standard 14-pin Dual-in-Line (DIP-14) package for broad compatibility. Outputs HCMOS level signals ensuring high speed and low power consumption.

Supports through-hole mounting for easy PCB assembly. Equipped with tristate enable/disable functionality. Rated for operation from -40°C up to 85°C, suitable for varied environments. Maximum supply voltage of 5V ensures compatibility with standard digital circuits.

Hermetically sealed package enhances reliability and reduces aging effects. Load capacitance is 50pF, optimizing oscillator stability. Compact dimensions: Length 20.8mm, Width 13.2mm, Height 5.08mm. Compliant with RoHS directives for environmental safety.

This QANTEK XO oscillator is ideal for industrial electronics, communication devices, test and measurement equipment, and embedded systems requiring precise timing signals. Its robust design and trusted brand support make it a dependable component for diverse engineering projects.
