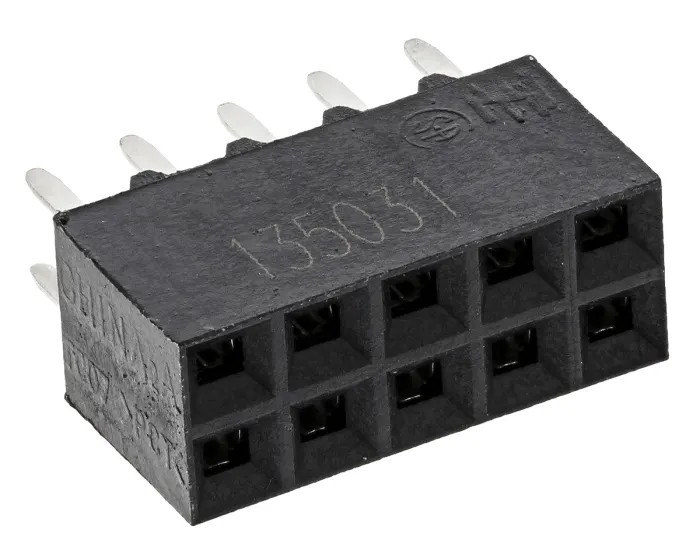

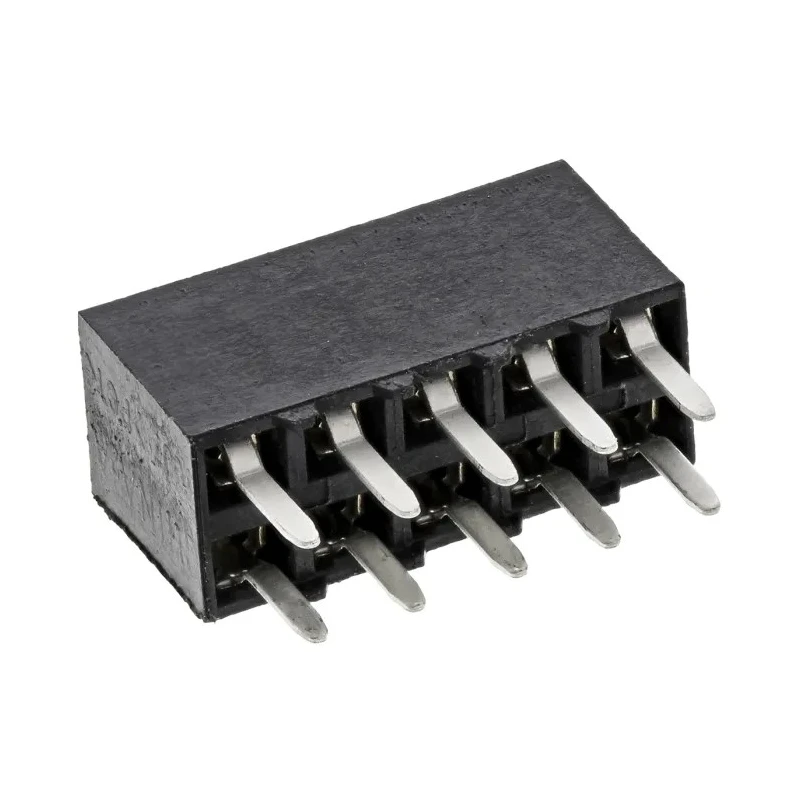

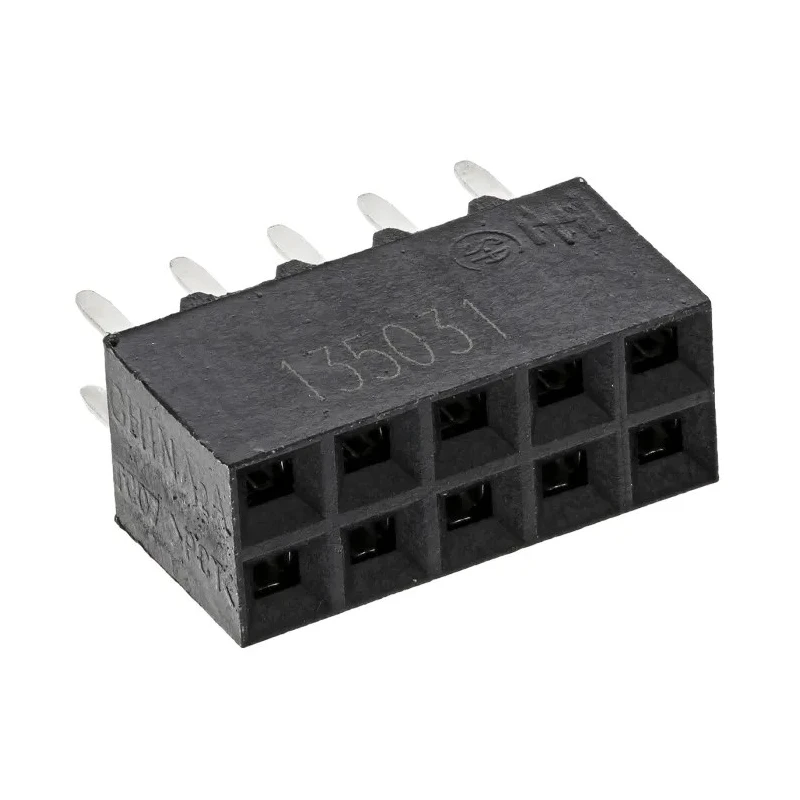

TE Connectivity AMPMODU MOD IV Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch Solder 5-534998-5
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | AMPMODU MOD IV |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features 10 contacts arranged in 2 rows for secure connectivity.
- It supports a pitch of 2.54 mm, compatible with standard PCB layouts.
- Rated for 12A current and 750V voltage, suitable for moderate power applications.
- Constructed with a liquid crystal polymer housing for durability and heat resistance.
- Designed for through hole mounting with a straight orientation for ease of installation.
- Contact material is bronze with gold plating to ensure corrosion resistance and conductivity.
- Operating temperature ranges from -65°C to 105°C, enabling use in diverse environments.
- Complies with no specific standards/approvals but built with quality manufacturing from China.
Product Description
TE Connectivity 5-534998-5 AMPMODU MOD IV Series Straight Through Hole PCB Socket is a 10-contact, 2-row female connector with a 2.54 mm pitch designed for board-to-board applications. It features a solder termination type and a robust liquid crystal polymer housing that provides excellent mechanical strength and thermal endurance.
The socket is rated for a current of 12A and supports voltages up to 750V, making it suitable for various electronic and industrial equipment requiring reliable electrical interconnections.
The contacts are made of bronze and plated with gold, enhancing corrosion resistance and electrical conductivity. The component supports an operating temperature range between -65°C and 105°C, allowing it to withstand harsh industrial environments.
Its through hole mount and straight orientation enable secure and stable installation on printed circuit boards. The AMPMODU MOD IV low profile design features double-row, closed top entry receptacle assemblies with end and side stackable housings, offering versatility in board design and integration.
The socket contains 10 female contacts arranged in 2 rows with a 2.54 mm pitch. Supports up to 12A current and 750V voltage for robust electrical performance. Construction uses liquid crystal polymer housing for durability and thermal resistance.
Contacts made from bronze material and gold plated for long-lasting conductivity. Designed for through hole mounting and straight connector orientation. Operates reliably within a temperature range of -65°C to 105°C.
This PCB socket is ideal for electronic manufacturing, industrial machinery, communication devices, and other commercial applications requiring secure board-to-board connections. The quality and design ensure long-term reliability and efficient signal transmission in critical systems.
Explore more high-quality PCB Sockets and connectors from TE Connectivity on EnvMart for your next electronics project or production run.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12A, making it suitable for moderate power applications.
It can support voltages up to 750V, which is appropriate for various electronic and industrial applications.
The contacts are arranged with a pitch of 2.54 mm, compatible with standard PCB layouts.
The housing is made from liquid crystal polymer, while the contacts are bronze with gold plating for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -65°C to 105°C, allowing for use in diverse environments.
This socket features 10 contacts arranged in 2 rows for secure connectivity.
It is designed for through hole mounting, which allows for secure installation on printed circuit boards.
The connector has a straight orientation, facilitating ease of installation.
This model uses a solder termination type, which is common for PCB connections.
It is ideal for electronic manufacturing, industrial machinery, communication devices, and other commercial applications requiring board-to-board connections.
The contacts in this socket are female, designed for board-to-board connections.
The socket is manufactured in China, ensuring quality manufacturing standards.
