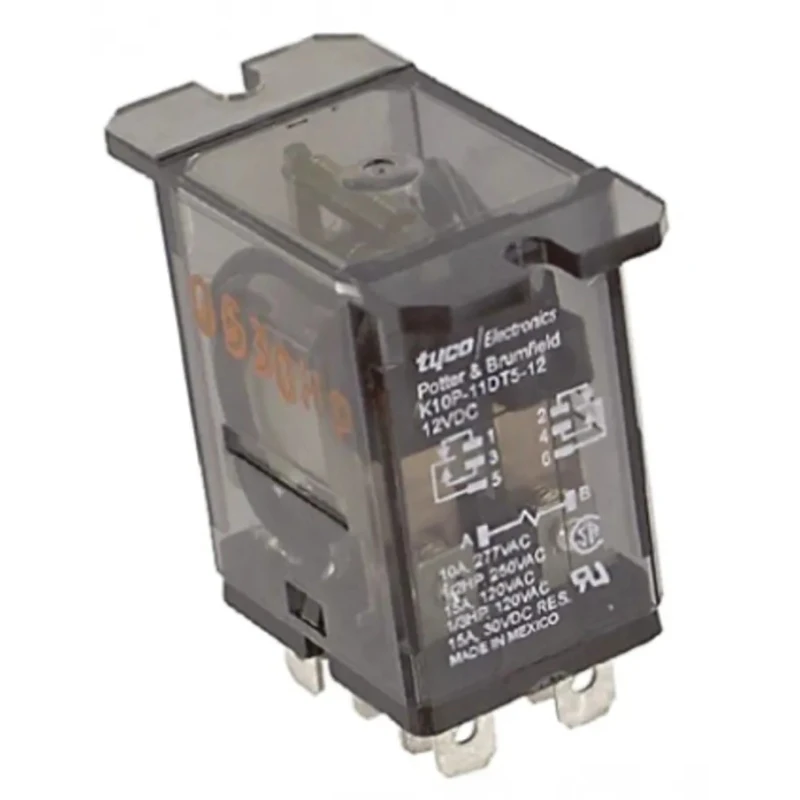

TE Connectivity Panel Power Relay, 12V DC Coil, 15A Switching Current, DPDT Contact Configuration K10P-11DT5-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 34.9mm |
| Length | 28.2mm |
| Model | K10P-11DT5-12 |
| Width | 21.8mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | K10 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 15A |
| Terminal type | Quick Connect |
| Standards/Approvals | UL, CSA, UR |
| Coil Resistance | 160Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 900mW |
| Switching Power | 900mW |
Key Features
- This relay supports a coil voltage of 12V DC ensuring standard control voltage compatibility.
- The double pole double throw (DPDT) contact configuration allows versatile switching applications.
- Designed for panel mounting with quick connect terminals for easy installation.
- Operates reliably within a temperature range from -45°C to 70°C.
- Constructed with silver alloy contacts for enhanced conductivity and durability.
- The relay coil resistance is 160 ohms, consuming 900mW coil power during operation.
- Compact dimensions with length 28.2mm, width 21.8mm, and height 34.9mm facilitates space-efficient setups.
- Switching power rating is 900mW and can handle switching AC voltage up to 600V AC.
Product Description
TE Connectivity K10P-11DT5-12 is a high-quality panel power relay designed for industrial and electrical automation applications. Featuring a 12V DC coil and a 15A switching current capacity, this relay provides dependable switching performance for various control circuits.
This miniature K10 series relay uses a DPDT (double pole double throw) contact configuration with silver alloy contacts that ensure low resistance and high endurance under electrical load. The relay supports panel mounting with quick connect terminals for secure and easy installation in control panels or equipment assemblies.
Operational temperature ratings from -45°C to 70°C make it suitable for harsh industrial environments. Its coil resistance of 160 ohms and coil power of 900mW ensure efficient power consumption. The device also withstands switching AC voltages up to 600V, enabling use in wide-ranging power scenarios.
The relay’s compact body dimensions (28.2mm length × 21.8mm width × 34.9mm height) allow installation in compact industrial enclosures or panels. Its compliance with UL, CSA, and UR approvals assures adherence to recognized safety standards.
This TE Connectivity Power Relay is ideal for electrical, industrial automation, HVAC, manufacturing, and other commercial equipment requiring reliable relay switching. This relay supports a coil voltage of 12V DC ensuring standard control voltage compatibility.
The double pole double throw (DPDT) contact configuration allows versatile switching applications. Designed for panel mounting with quick connect terminals for easy installation. Operates reliably within a temperature range from -45°C to 70°C.
Constructed with silver alloy contacts for enhanced conductivity and durability. The relay coil resistance is 160 ohms, consuming 900mW coil power during operation. Compact dimensions with length 28.2mm, width 21.8mm, and height 34.9mm facilitates space-efficient setups.
Switching power rating is 900mW and can handle switching AC voltage up to 600V AC. Explore more TE Connectivity industrial electrical components and relays at EnvMart for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 15A, allowing it to handle various control circuits effectively.
It utilizes a double pole double throw (DPDT) contact configuration, providing versatile switching options.
The relay operates with a coil voltage of 12V DC, ensuring compatibility with standard control voltage systems.
The relay measures 28.2mm in length, 21.8mm in width, and 34.9mm in height, making it suitable for compact installations.
It operates reliably within a temperature range of -45°C to 70°C, suitable for harsh industrial environments.
The coil resistance is 160 ohms, which contributes to its efficient power consumption during operation.
This model features quick connect terminals, facilitating easy and secure installation in control panels.
It can handle switching AC voltages up to 600V, making it versatile for various power scenarios.
The contacts are made from silver alloy, which enhances conductivity and durability under electrical load.
It complies with UL, CSA, and UR approvals, ensuring adherence to recognized safety standards.
The relay consumes 900mW of coil power during operation, which is efficient for its design.
This relay is suitable for electrical, industrial automation, HVAC, manufacturing, and other commercial equipment requiring reliable switching.
