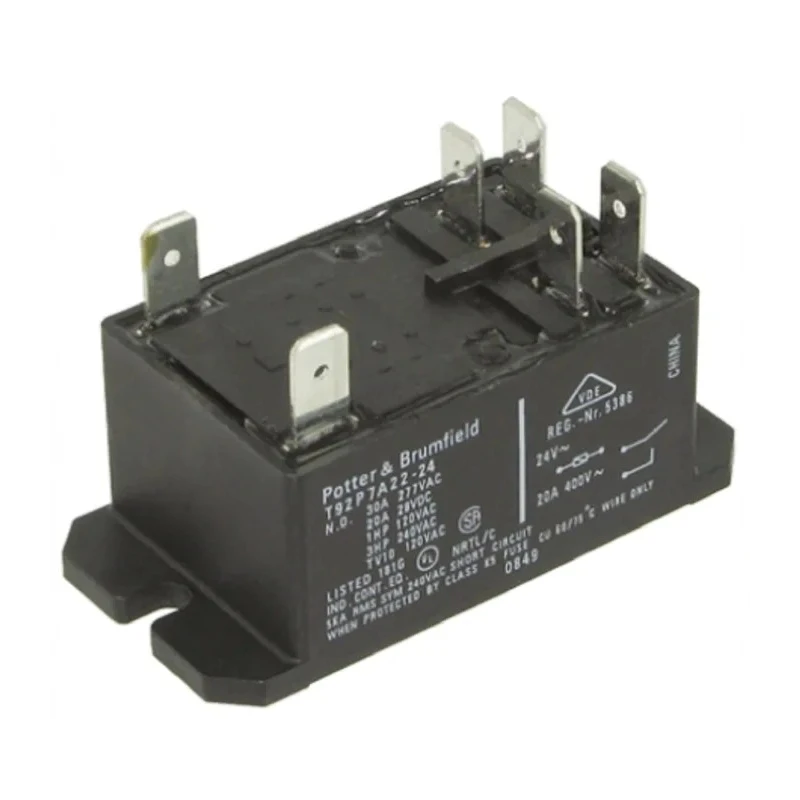

TE Connectivity Panel Power Relay 24V AC Coil 30A Switching Current DPST T92P7A22-24 6-1393211-0
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40°C to +65°C |
| Height | 30.7mm |
| Length | 52.3mm |
| Model | T92P7A22-24 6-1393211-0 |
| Width | 34.5mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -45°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 36.6Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 600V ac |
Key Features
- Panel mount relay with DPST contact configuration and quick connect terminals.
- Operates with a 24V AC coil voltage with 36.6Ω coil resistance and 4VA coil power.
- Switches currents up to 30A and AC voltage up to 600V AC.
- Certified UL recognized, CSA certified, and compliant with VDE standards.
- Operating temperature range from -40°C to +65°C for diverse environments.
- Silver alloy contacts provide durability and excellent conductivity.
- Compact dimensions of 52.3mm length, 34.5mm width, and 30.7mm height.
- Designed to control compressor loads up to 3.5 tons with 25.3 FLA and 110 LRA.
Product Description
TE Connectivity T92P7A22-24 6-1393211-0 Panel Power Relay features a 24V AC coil and 30A switching current with Dual Pole Single Throw (DPST) contact configuration. This panel mount relay is engineered for reliable control in electrical automation systems and industrial applications.
The quick connect terminal type simplifies wiring for efficient installation and maintenance. Coil resistance is precisely 36.6 ohms, and coil power rating is 4VA, ensuring stable coil operation. The relay can switch AC voltages up to 600V AC at powers up to 4VA, supporting a wide range of control voltages.
Designed to operate safely and effectively from -40°C to +65°C, this relay is suited for applications in HVAC, manufacturing, and industrial machinery environments. It meets stringent UL 873 and UL 508 spacing requirements with certifications including UL recognized, CSA certified, and VDE compliance, providing confidence in electrical safety.
Its silver alloy contacts offer excellent conductivity and longevity, making it ideal for switching heavy compressor loads up to 3.5 tons, handling 25.3 Full Load Amperes (FLA) and 110 Locked Rotor Amperes (LRA). The relay also features compact dimensions (52.3mm x 34.5mm x 30.7mm) for optimal panel space efficiency.
This relay is panel mount type with DPST contact configuration and quick connect terminals. It supports 24V AC coil voltage with a coil resistance of 36.6Ω and coil power rating of 4VA. Maximum switching current is 30A with switching AC voltage of 600V.
Operating temperature ranges from -40°C to +65°C, suitable for various industrial environments. It is UL recognized, CSA certified, and compliant with VDE standards for electrical safety. Silver alloy contacts ensure durability and excellent conductivity.
Compact size helps save panel mounting space. Ideal for controlling compressor loads up to 3.5 tons, 25.3 FLA, and 110 LRA.
This Power Relay from TE Connectivity is a dependable component widely used in electrical control panels, automation systems, and industrial equipment across sectors including manufacturing, HVAC, and process control. Its robust build and certifications ensure safe and reliable performance in demanding industrial applications.
Explore more premium industrial relays and electrical components at EnvMart to complement your control panel assemblies and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a maximum switching current of 30A.
The coil voltage for this model is 24V AC.
It features a Dual Pole Single Throw (DPST) contact configuration.
The relay has dimensions of 52.3mm in length, 34.5mm in width, and 30.7mm in height.
It operates within a temperature range of -40°C to +65°C.
This model uses quick connect terminals for easy installation.
The coil resistance is 36.6Ω.
It can switch AC voltages up to 600V AC.
It is UL recognized, CSA certified, and compliant with VDE standards.
The contacts are made from silver alloy, providing excellent conductivity.
It is designed for controlling compressor loads, supporting applications in HVAC and industrial machinery.
The coil power rating is 4VA.
