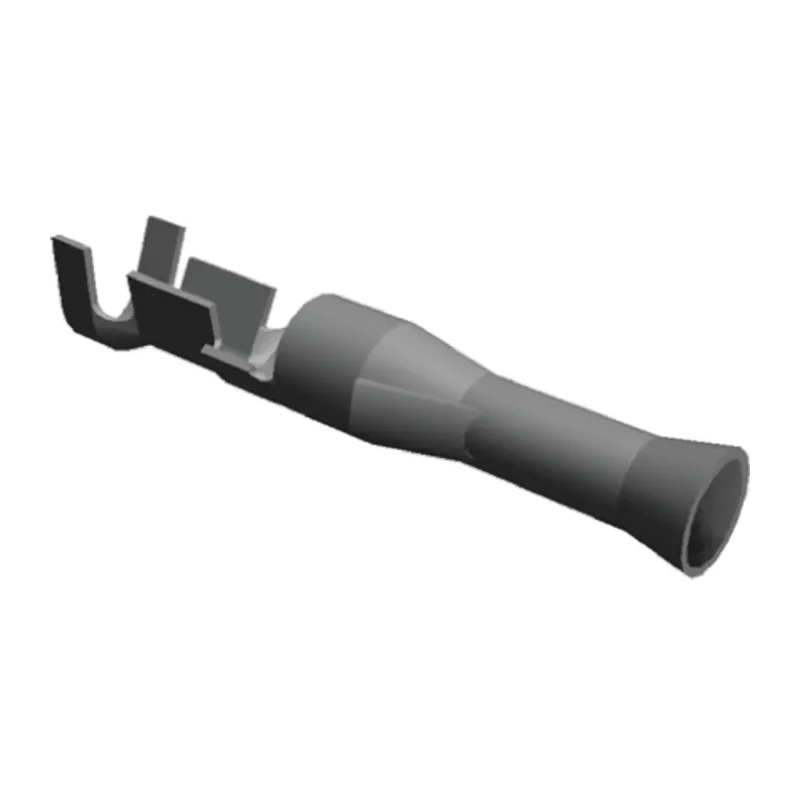

TE Connectivity 0.093 Commercial Series Female Crimp Terminal 10A, Brass Contact, Tin Plating, 19.81mm Length, Model 770146-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 10A |
| Length | 19.81mm |
| Model | 770146-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | 0.093 Commercial |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | 0.093 Commercial Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
Key Features
- Constructed with brass contact material for reliable electrical performance.
- Contacts are plated with tin for enhanced corrosion resistance.
- Crimp termination ensures secure and durable wire connection.
- Operates effectively within temperature range of -55°C to 105°C.
- Compact length of 19.81 mm facilitates installation in confined spaces.
- Compatible with 0.093 commercial series connectors featuring 2.36 mm diameter pin and socket contacts.
- Supports minimum wire size of 0.3 mm² (24 AWG) and maximum wire size of 0.8 mm² (18 AWG).
- Designed for industrial and electronic assembly applications.
Product Description
TE Connectivity 770146-1 is a Female Crimp Terminal specifically engineered for use with 0.093 Commercial Series connector housings. Rated for a current of 10A, this crimp terminal ensures efficient electrical connectivity across wires ranging from 24 AWG to 18 AWG. The contact is manufactured from high-quality brass and features tin plating to provide durability and excellent corrosion resistance, crucial for industrial and electronic environments.
The terminal features a compact length of 19.81 mm, making it suitable for installations requiring space-saving components. It supports operation across a wide temperature range from -55°C up to 105°C, accommodating various harsh conditions in industrial, manufacturing, and electronic assembly contexts.
Designed for crimp termination, this terminal ensures a secure mechanical and electrical connection, optimizing production efficiency and reliability. The 0.093 Commercial Series includes 2.36 mm diameter pin and socket contacts, widely used in power and signal connector applications.
Brass contact material enhances electrical conductivity and mechanical strength. Tin plating protects against oxidation and corrosion. Wide operating temperature range improves application versatility. Compact and standardized size aids in seamless integration with compatible connectors.
Suitable for industrial, electronic component assembly, and manufacturing environments.
This product is ideal for use in electronics manufacturing, power connectors, and industrial automation systems, ensuring dependable connections in critical applications. Packaging and unit quantity details along with 3D models, schematics, and footprints are available for engineering integration and design purposes.
