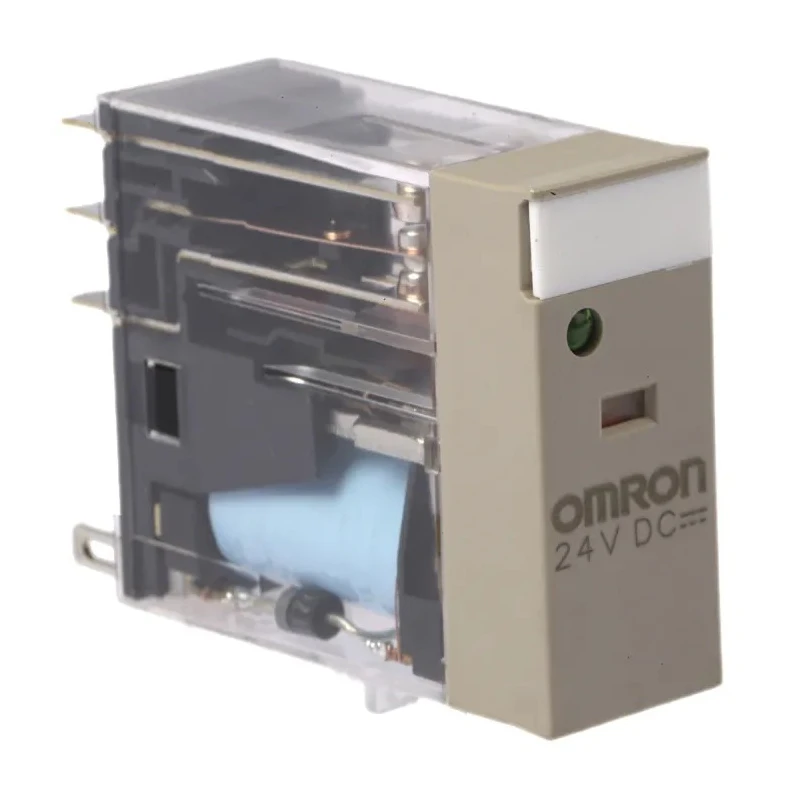

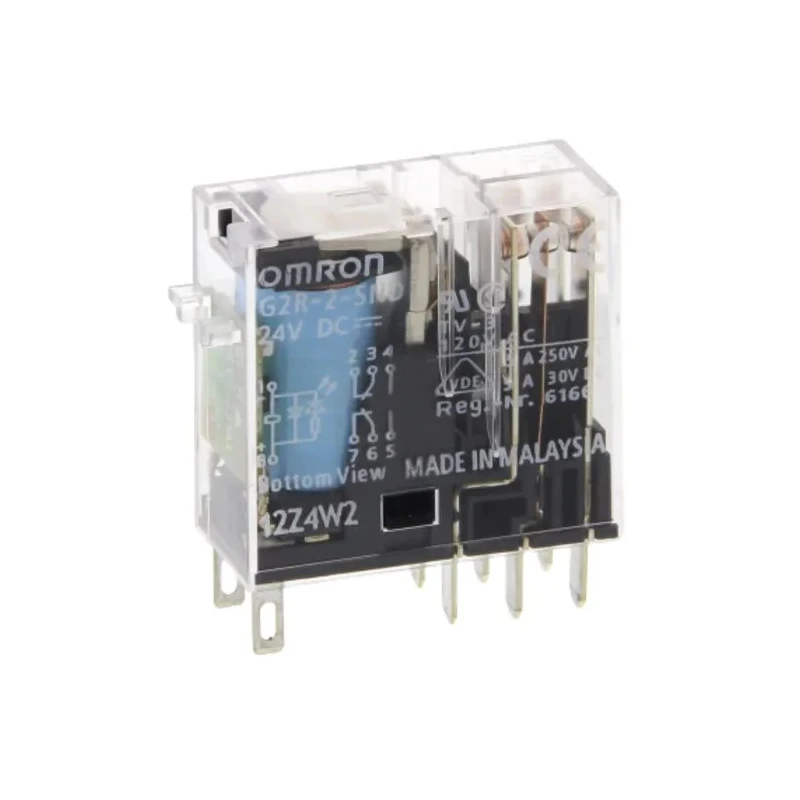

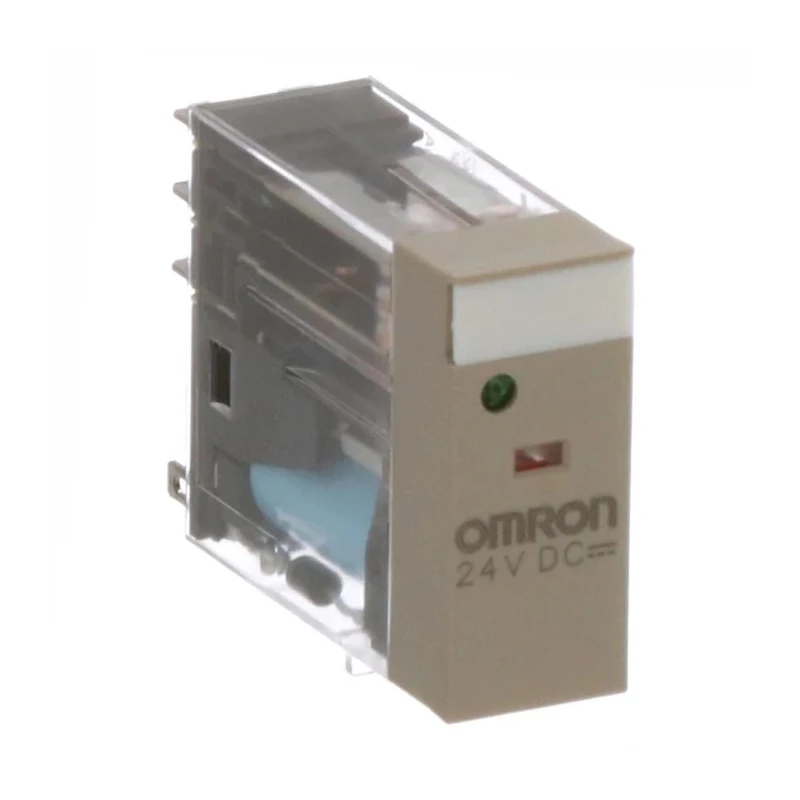

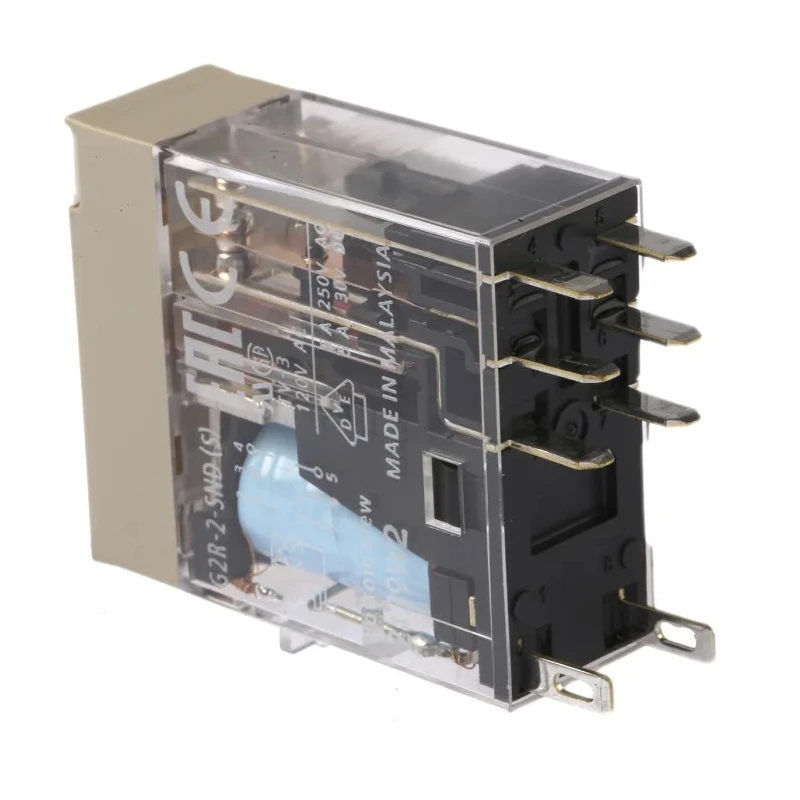

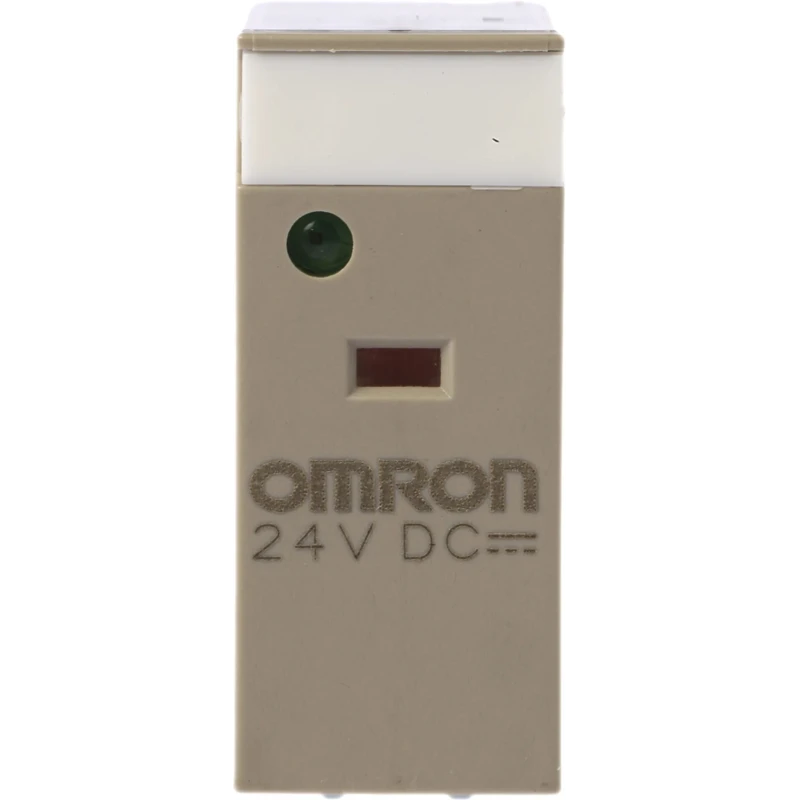

Omron Power Relay DPDT 24V DC Coil, 5A Switching Current G2R-2-SND 24VDC (S)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 35.5mm |
| Length | 29mm |
| Model | G2R-2-SND 24VDC (S) |
| Width | 13mm |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V |
| Coil Power | 530mW |
| Switching Power | 600mW |
| Omron Diffuse Photoelectric Sensor, Barrel Sensor, 100 mm Detection RangeBrand | Omron |
Key Features
- Equipped with a plug-in terminal type for easy installation.
- Supports switching voltages up to 380V AC and 125V DC.
- Operates reliably within a temperature range of -40°C to 70°C.
- Integrated LED indicator and diode facilitate status monitoring.
- Low coil current consumption of 21.6mA for improved energy efficiency.
- Lightweight design at 20g reduces system strain.
- Minimum lifespan of 100,000 operations ensures durability.
- Constructed with silver alloy contacts for enhanced conductivity and reliability.
Product Description
Omron G2R-2-SND 24VDC (S) power relay is a high-quality DPDT relay designed for demanding electrical control applications, featuring a 24V DC coil and a 5A switching current capability. This relay supports switching voltages up to 380V AC and 125V DC and comes with a convenient plug-in terminal type for quick and secure installation.
Its integrated LED indicator and diode allow easy status monitoring, making troubleshooting straightforward in industrial environments. The relay operates efficiently with a low coil current of 21.6mA, contributing to energy savings in continuous operation.
Operating temperature ranges from -40°C to 70°C, making it suitable for harsh conditions commonly found in factories and warehouses. It is lightweight at just 20 grams, ensuring minimal loading on system components, and is built with silver alloy contacts that provide reliable, long-lasting electrical conductivity.
The relay supports up to 100,000 mechanical operations, ensuring extended service life for stop-start applications such as HVAC systems, industrial safety devices, and power distribution networks. It also has a strong dielectric strength, capable of withstanding voltage surges between 1,000 and 5,000V AC.
DPDT contact configuration with plug-in terminals for versatile control. 24V DC coil voltage with 5A switching current capacity. Suitable for both AC and DC load switching up to 380V AC and 125V DC respectively. Wide operating temperature range from -40°C to 70°C for harsh environment use.
Low coil current for efficient energy consumption. Durable silver alloy contacts and low contact resistance of 50mΩ. Compact dimensions: 35.5 mm height, 29 mm length, and 13 mm width. Compliance with UL and CSA standards for safety and quality assurance.
This Omron power relay is ideal for industrial, HVAC, manufacturing, and power distribution applications where precise and reliable switching is critical. It ensures durable and efficient circuit control to meet demanding operational requirements.
Explore more Power Relays and contactors from Omron and other top brands at EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 5A.
This model operates with a coil voltage of 24V DC.
The dimensions of the relay are 35.5 mm in height, 29 mm in length, and 13 mm in width.
It supports switching voltages up to 380V AC and 125V DC.
The relay operates efficiently within a temperature range of -40°C to 70°C.
This power relay features a DPDT (Double Pole Double Throw) contact configuration.
The contacts are constructed with silver alloy for enhanced conductivity and reliability.
It has a low coil current consumption of 21.6mA, contributing to energy efficiency.
Yes, it includes an integrated LED indicator and diode for easy status monitoring.
It complies with UL and CSA standards for safety and quality assurance.
The contact resistance is rated at 50mΩ, ensuring reliable operation.
The relay has a minimum lifespan of 100,000 operations, making it suitable for demanding applications.
