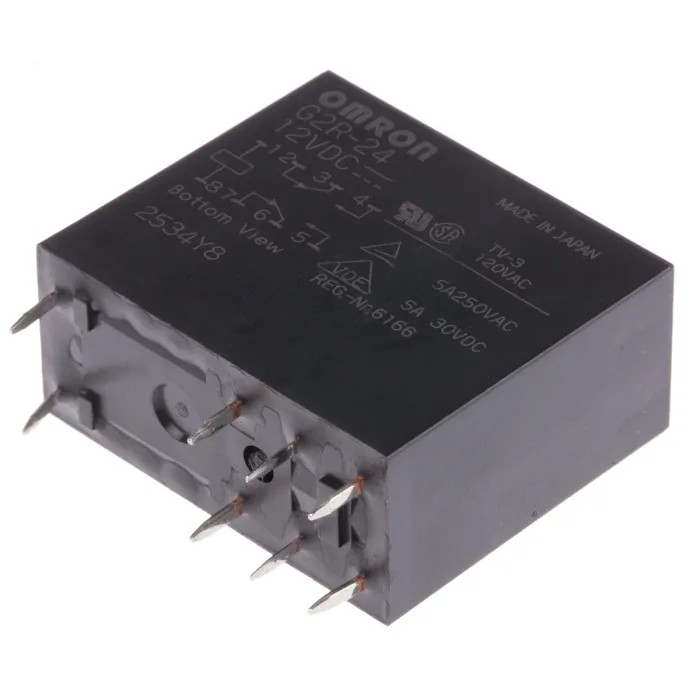

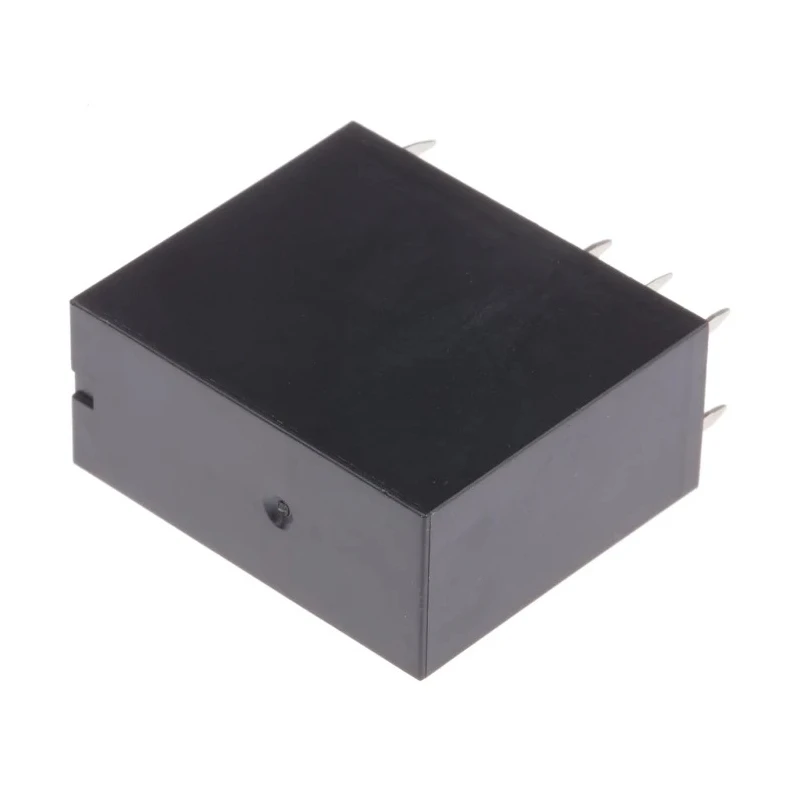

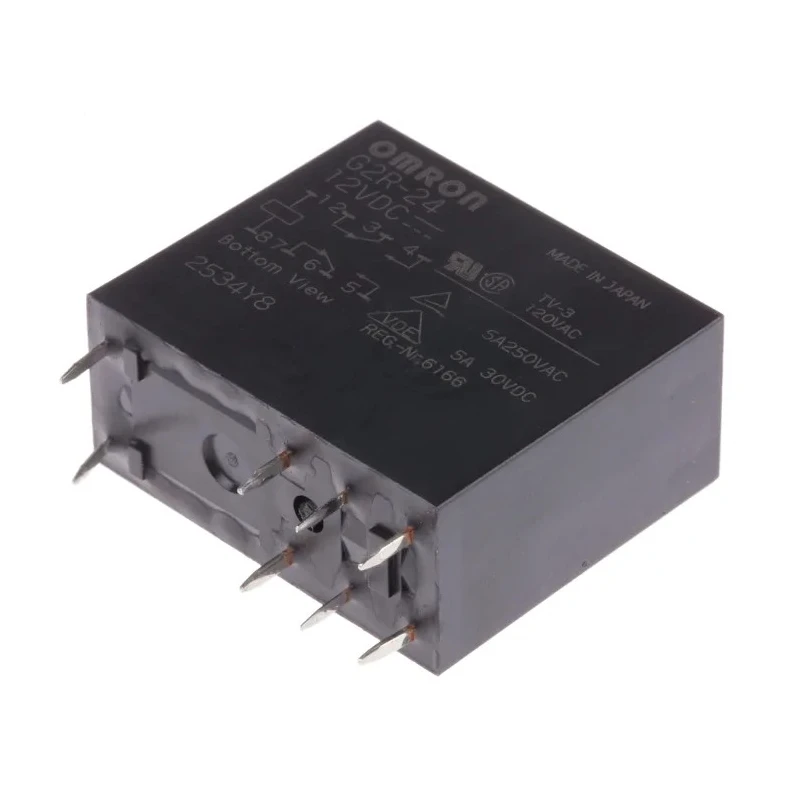

Omron PCB Power Relay 12V DC Coil 5A Switching Current DPDT G2R-24 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-24 DC12 |
| Width | 13.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 530mW |
| Switching Power | 600mW |
Key Features
- Designed for PCB mounting in domestic and commercial applications.
- Offers a switching power rating of 600mW for reliable performance.
- Operates within a temperature range of -40°C to 70°C.
- Equipped with PCB pin terminals and silver alloy contacts.
- Complies with UL and CSA standards ensuring quality and safety.
- Compact design with dimensions 25.5mm height, 13.5mm width, and 29mm length.
- Coil resistance is 275Ω with coil power consumption of 530mW.
- Low contact resistance of 50mΩ enables efficient contact operation.
Product Description
Omron G2R-24 DC12 PCB Power Relay is a highly reliable general-purpose power relay suitable for various industrial, commercial, and domestic applications. Featuring a 12V DC coil and DPDT contact configuration, it supports a switching current of 5A, ensuring effective load control and switching capabilities on printed circuit boards.
This relay offers a robust switching power of 600mW and supports switching voltages up to 125V DC and 380V AC, making it adaptable to a broad range of electrical circuits. It operates reliably within a temperature range from -40°C to 70°C, accommodating diverse environments.
The coil has a resistance of 275 ohms and consumes a coil power of 530mW, providing efficient energy usage. Designed for PCB mounting, it features PCB pin terminals for easy installation. The contact points are made of silver alloy, offering durability and low contact resistance measured at 50mΩ, which enhances conductivity and minimizes signal loss.
Its compact form factor with dimensions of 25.5 mm in height, 13.5 mm in width, and 29 mm in depth allows easy integration into various electronic assemblies. Certified to meet UL and CSA standards, this relay guarantees safety and compliance with international quality norms.
Designed for PCB mounting in domestic and commercial applications. Offers a switching power rating of 600mW for reliable performance. Operates within a temperature range of -40°C to 70°C. Equipped with PCB pin terminals and silver alloy contacts.
Complies with UL and CSA standards ensuring quality and safety. Compact design with dimensions 25.5mm height, 13.5mm width, and 29mm length. Coil resistance is 275Ω with coil power consumption of 530mW. Switching voltages supported: 125V DC and 380V AC.
Low contact resistance of 50mΩ enables efficient contact operation. G2R series general-purpose relay for versatile use.
This PCB power relay is typically used in industrial automation, control panels, HVAC systems, manufacturing equipment, and electrical appliances where reliable switching of moderate current loads is required.
Explore more from Omron's relay product range and related Power Relays at EnvMart for quality and dependable electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 5A, making it suitable for effective load control in various applications.
The relay has compact dimensions of 25.5mm in height, 13.5mm in width, and 29mm in length, allowing for easy integration into electronic assemblies.
It operates with a coil voltage of 12V DC, which is essential for its activation and operation.
This relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching options.
The maximum operating temperature for the relay is 70°C, enabling it to function in various environmental conditions.
It is equipped with PCB pin terminals, facilitating straightforward mounting on printed circuit boards.
The contact resistance is measured at 50mΩ, which enhances conductivity and minimizes signal loss during operation.
This relay complies with UL and CSA standards, ensuring it meets quality and safety requirements.
The coil power consumption is 530mW, which contributes to its efficient energy usage during operation.
The minimum operating temperature for the relay is -40°C, allowing it to operate in low-temperature environments.
It supports switching voltages of up to 125V DC and 380V AC, making it adaptable for various electrical circuits.
The relay offers a switching power rating of 600mW, ensuring reliable performance in its applications.
