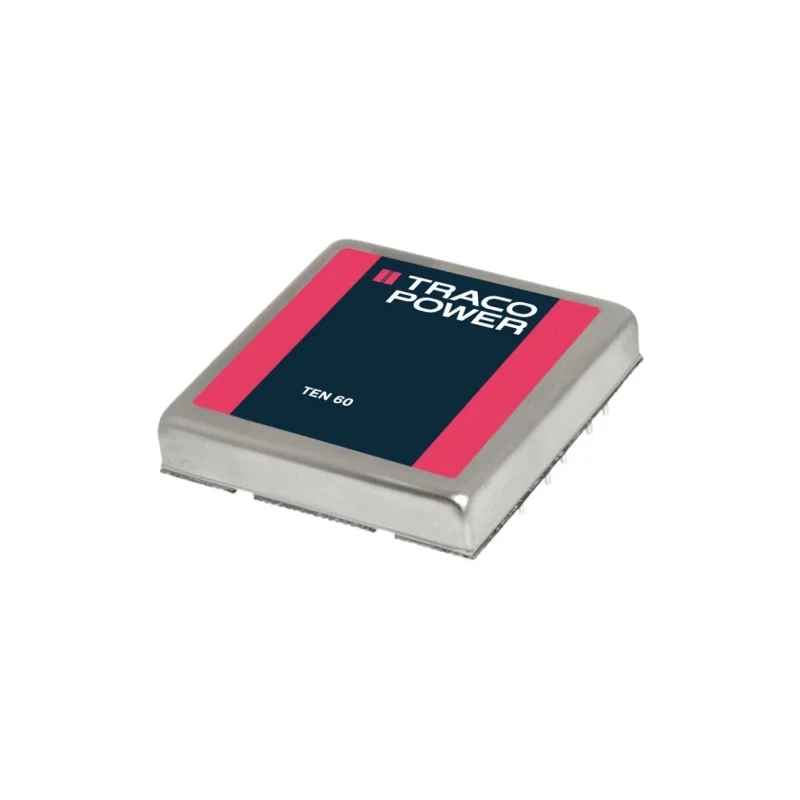

TRACOPOWER DC/DC Converter 12V 5A 75V Input 36V Input 60W PCB Metal Case 8-Pin TEN 60-4812
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 60 DC/DC Converter, 12V dc/ 5 A, 75 |
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 50.8mm |
| Model | TEN 60-4812 |
| Depth | 10.2mm |
| Width | 50.8mm |
| Mount Type | PCB |
| Series | TEN 60 |
| Maximum Operating Temperature | 75°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 410000h |
| Number of outputs | 1 |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 5A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- High efficiency of 90% ensures low power loss during operation.
- Wide input voltage range from 36V to 75V DC supports versatile applications.
- Operating temperature range from -40°C to 75°C for reliable performance in harsh environments.
- 1.6kV DC isolation voltage for electrical safety and noise reduction.
- Compact metal case with dimensions 50.8mm x 50.8mm x 10.2mm for space-saving PCB integration.
- Built-in input/output filters reduce electromagnetic interference and enhance signal quality.
- Remote On/Off control functionality for flexible power management.
- Protection features against undervoltage lockout, overvoltage, overtemperature, and short circuits.
Product Description
TRACOPOWER TEN 60-4812 DC/DC Converter delivers regulated 12V output voltage at 5A nominal current with a maximum output power of 60W. It features a compact metal case designed for PCB mounting with an 8-pin interface. The unit supports a wide input voltage range from 36V to 75V DC, making it suitable for various power supply systems.
This converter boasts a high efficiency of 90%, minimizing thermal dissipation and improving overall system energy efficiency. Its robust design operates reliably in extreme temperature conditions from -40°C to 75°C, suitable for industrial, telecommunications, and battery-powered applications. The device provides 1.6kV DC isolation voltage, enhancing safety and EMI resistance.
The converter includes built-in filters that comply with EN 55022 Class A and FCC Level A standards, thereby reducing EMI without needing substantial external filtering components. Remote On/Off control allows flexible power sequencing and management in complex systems. Protection mechanisms such as undervoltage lockout, overvoltage, overtemperature, and short circuit safeguarding improve operational reliability and system protection.
The compact form factor with dimensions 50.8mm length, 50.8mm width, and 10.2mm depth provides easy integration into constrained PCB layouts while maintaining adequate power handling. Typical industrial applications encompass battery-operated devices, distributed power architectures within communication equipment, and embedded power supply use cases.
High conversion efficiency reduces energy consumption and heat generation. Wide input voltage supports flexible power input sources. Comprehensive protection features enhance reliability and longevity. Compact PCB mountable metal case suits space-restricted designs.
Compliance with EMI standards ensures minimal interference in sensitive circuits. Suitable for industrial, telecom, and portable power applications. Remote On/Off and output voltage adjustment increase control options. High isolation voltage ensures electrical safety and noise resilience.
Explore the extensive range of DC/DC Converters at EnvMart for high-performance power supply solutions tailored to industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 60W.
It supports a wide input voltage range from 36V to 75V DC.
This unit has a high efficiency rating of 90%.
The dimensions are 50.8mm in length, 50.8mm in width, and 10.2mm in depth.
The operating temperature range is from -40°C to 75°C.
This model provides one output.
It is designed for PCB mounting.
The isolation voltage is 1.6kV DC.
It includes protection features against undervoltage lockout, overvoltage, overtemperature, and short circuits.
Yes, it features remote On/Off control for flexible power management.
The country of origin is Taiwan.
The mean time between failures (MTBF) is 410,000 hours.
