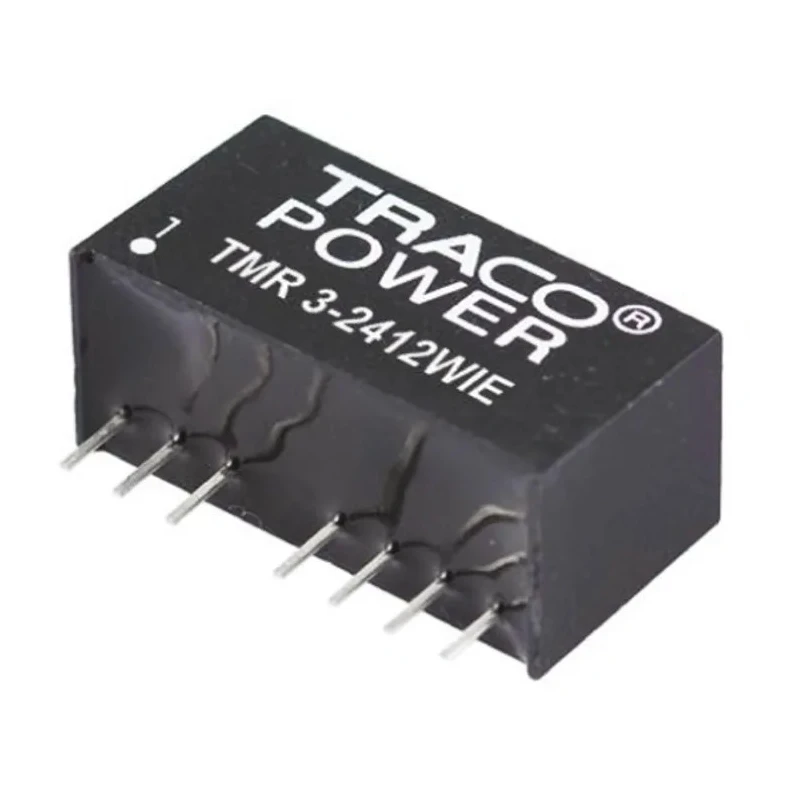

TRACOPOWER 3W SIP-8 Regulated Isolated DC/DC Converter, 5V DC Output, 300mA, 36V DC Max Input, Through Hole TMR 3-2421WIE
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 3WIE DC/DC Converter, 5V dc/ 300 mA |
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 21.8mm |
| Model | TMR 3-2421WIE |
| Depth | 11.2mm |
| Mount Type | Through Hole |
| Series | TMR 3WIE |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 8000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 300mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
| Wide 4 | 1 input voltage range |
Key Features
- Wide input voltage range from 9V to 36V DC for versatile application.
- High isolation voltage of 1.5kV DC ensures reliable electrical separation.
- Compact and robust SIP-8 package with 7 pins suitable for through-hole mounting.
- Operating temperature range from -40°C to +85°C enables use in harsh environments.
- Efficiency rating of 79% optimizes power conversion with minimal losses.
- Mean time between failures (MTBF) of 8 million hours offers dependable long-term operation.
- Dual output capability supports various industrial and communication equipment.
- Compliance with RoHS standards guarantees environmentally safe design.
Product Description
TRACOPOWER TMR 3-2421WIE is a 3W regulated isolated DC/DC converter featuring a compact SIP-8 package with through-hole mount design, delivering 5V DC output at 300mA with high efficiency and reliability.
This DC/DC converter supports a wide 4:1 input voltage range from 9V up to 36V DC, making it suitable for diverse industrial, communication, and instrumentation applications requiring stable voltage supply.
The device provides an isolation voltage of 1.5kV DC, ensuring safe electrical separation between input and output circuits, critical for industrial electronics safety and signal integrity.
With an operating temperature range from -40°C to +85°C, this converter is designed to function reliably in harsh environmental conditions commonly experienced in industrial and commercial equipment.
The SIP-8 package with 7 pins is optimized for through-hole mounting, easing integration into printed circuit boards while maintaining a small footprint of 21.8mm length and 11.2mm depth.
Wide input voltage range from 9 to 36V DC. Regulated 5V DC output at 300mA current. Isolation voltage of 1.5kV DC for safe separation. Compact SIP-8 package with through-hole mounting. Operating temperature range of -40°C to 85°C for industrial robustness.
High efficiency of 79% to minimize power loss. MTBF of 8,000,000 hours ensures long-term reliability. RoHS compliant design. Suitable for industrial, communication, and instrumentation applications. Made in Taiwan, Province Of China.
This TRACOPOWER TMR 3WIE series DC/DC converter is optimized for cost-effective and efficient voltage conversion in demanding electronic environments, supported by a 3-year product warranty.
It is highly suitable for industrial electronics, communication systems, and instrumentation equipment requiring isolated, regulated power supply with excellent reliability and extended temperature tolerance.
Explore related DC/DC Converters and power supply solutions at EnvMart for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide input voltage range from 9V to 36V DC.
It provides a regulated output voltage of 5V DC with a maximum output current of 300mA.
The isolation voltage is 1.5kV DC, ensuring safe electrical separation between input and output circuits.
The efficiency rating is 79%, which optimizes power conversion with minimal losses.
The dimensions of this unit are 21.8mm in length and 11.2mm in depth.
It operates within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
This converter features dual output capability, allowing for two outputs.
It is designed for through-hole mounting, making integration into printed circuit boards straightforward.
The MTBF is rated at 8 million hours, indicating long-term reliability.
Yes, it complies with RoHS standards, ensuring an environmentally safe design.
This model is suitable for industrial, communication, and instrumentation applications requiring stable voltage supply.
It is manufactured in Taiwan, Province Of China.
