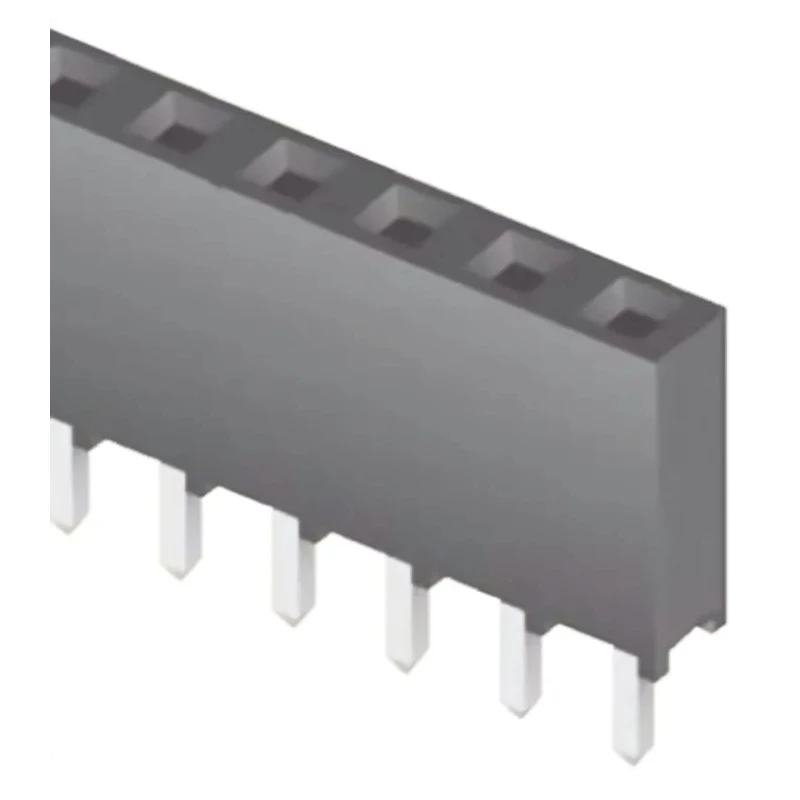

Samtec SQT Series Straight Through Hole PCB Socket 6-Contact 1 Row 2 mm Pitch Solder SQT-106-01-L-S

Name: Samtec SQT Series Straight Through Hole PCB Socket 6-Contact 1 Row 2 mm Pitch Solder SQT-106-01-L-S
Brand: Samtec
SKU: 130557
Price: 1.96 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	450V
Brand	Samtec
Orientation	Straight
Current	5.5A
Temperature range	-55 → 125 °C
Model	SQT-106-01-L-S
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Current Rating	5.5 A at 20 °C
Series	SQT
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Female
Connector System	Board-to-Board
Insulator Material	Black LCP
SQT-1xx-01-L-S	single row vertical
SQT-1xx-01-L-x-RA	horizontal
SQT-1xx-01-L-D	double row vertical

Key Features

Constructed with black liquid crystal polymer housing for durability.
Current rating of 5.5 A at 20 °C suitable for moderate power applications.
Supports operating temperature range from -55°C to 125°C ensuring wide environmental tolerance.
Gold-plated bronze female contacts provide reliable electrical connection and corrosion resistance.
Through-hole mount type with straight orientation for board-to-board connections.
Post length of 2.29 mm and board height of 6.35 mm for mechanical compatibility.
Designed as a rugged socket strip series with tiger buy 0.5 mm square contacts.
Applicable in industrial, electronics manufacturing and PCB assembly processes.

Product Description

Samtec SQT-106-01-L-S Straight Through Hole PCB Socket is a high-performance electronic component from the SQT Series, featuring a 6-contact configuration arranged in a single row with a 2 mm pitch. Designed for board-to-board connections, this socket offers reliable solder termination and is constructed with durable black liquid crystal polymer housing. The socket is engineered for industrial, electronics manufacturing, and commercial PCB assembly applications where ruggedness and precise electrical connectivity are essential.

The contact design incorporates female bronze contacts plated with 0.25 μm gold on the contact area and matte tin on PCB tails, ensuring excellent corrosion resistance and conductivity. Rated for a maximum current of 5.5 A at 20 °C and a voltage capacity of 450 V, it withstands harsh operating conditions across a temperature range from -55 °C to 125 °C. The post length of 2.29 mm and the board height of 6.35 mm provide compatibility with standard PCB mounting requirements.

These sockets are part of a rugged strip series offering options in single and double rows, and orientations including vertical and horizontal formats. The SQT-106-01-L-S is designed as a single row vertical version. The black LCP housing material provides excellent insulation and thermal stability. This socket is commonly paired with compatible TMM SMT or through-hole headers for enhanced system reliability.

Its compact 2 mm pitch and robust construction make it well-suited to industrial and laboratory PCB applications, testing equipment, and specialized electronics production environments.

Constructed with liquid crystal polymer housing for durable insulation. 6 female bronze contacts with gold plating for reliable connectivity. Rated for 5.5 A current and 450 V voltage. Wide operating temperature range from -55 to 125 °C.

Through-hole mount type with straight, single row orientation. Suitable for board-to-board connections in industrial electronics. Compact 2 mm pitch for space-efficient PCB designs. Rugged socket strips also available in multiple configurations.

Explore a wide range of Samtec PCB Sockets and connectors at EnvMart for your electronic component needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The SQT-106-01-L-S socket has a current rating of 5.5 A at 20 °C, making it suitable for moderate power applications.

This model is rated for a maximum voltage capacity of 450 V.

It supports an operating temperature range from -55 °C to 125 °C, ensuring wide environmental tolerance.

The housing is made from black liquid crystal polymer, and the contacts are bronze with gold plating for reliable electrical connection and corrosion resistance.

This socket features 6 female contacts arranged in a single row.

The pitch size of the SQT-106-01-L-S is 2 mm, allowing for compact PCB designs.

It utilizes a through-hole mount type for board-to-board connections.

The post length is 2.29 mm and the board height is 6.35 mm, providing mechanical compatibility with standard PCB mounting requirements.

This socket uses solder termination for reliable connections.

The orientation of this socket is straight, designed for vertical board-to-board connections.

This socket is applicable in industrial electronics, electronics manufacturing, and PCB assembly processes.

It is part of a board-to-board connector system, designed for reliable electrical connectivity between PCBs.
