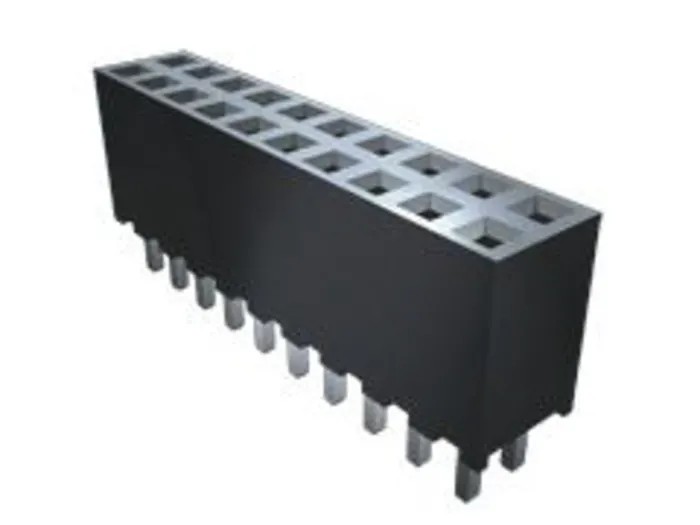

Samtec SQT Series Straight Through Hole PCB Socket 34-Contact 2 Row 2 mm Pitch Solder SQT-117-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 281V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.1A |
| Model | SQT-117-01-L-D |
| Mount Type | Through Hole |
| Special Features | FleXYZ™ design allows design flexibility in all three axes |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SQT |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Cost-Effective Square Tail Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Constructed from liquid crystal polymer housing providing durability.
- Gold-plated bronze contacts ensure excellent conductivity.
- Supports current of up to 5.1 A and voltage rating of 281 V.
- Features a FleXYZ™ design allowing flexibility in three axes for versatile board placement.
- Suitable for operating temperatures ranging from -55°C to 125°C.
- Designed with a straight orientation and a cost-effective square tail socket strip configuration.
- Termination type is through-hole solder for secure PCB mounting.
- Complies with Tiger Buy™ contact system for reliable performance.
Product Description
Samtec SQT-117-01-L-D PCB Socket is a premium-grade, 34-contact, 2-row, straight through hole connector optimized for board-to-board connections with a 2 mm pitch and solder termination.
The housing is made from high-quality liquid crystal polymer, ensuring mechanical robustness and high temperature resistance, operating effectively between -55°C and 125°C. Contacts are bronze with gold plating to provide strong electrical conductivity and corrosion resistance.
This socket supports a current capacity of 5.1 A and a voltage rating of 281 V, making it suitable for many electronic applications requiring reliable power and signal transmission.
Its FleXYZ™ design gives enhanced mechanical flexibility in three axes allowing precise alignments in PCB assembly processes. The straight orientation and cost-effective square tail socket strip make it conveniently mountable via through-hole soldering, securing optimal electrical and mechanical connections.
This connector follows the Tiger Buy™ contact system standard, ensuring dependable connection integrity in demanding conditions. This PCB Socket is widely used in industrial electronics, manufacturing assembly lines, and commercial electronics requiring high signal integrity and durability.
Constructed with liquid crystal polymer housing for durability and heat resistance. Gold-plated bronze contacts provide excellent conductivity. Current capacity rated at 5.1 A and voltage at 281 V. FleXYZ™ design allows three-axis flexibility.
Through-hole solder termination for secure PCB mounting. Operating temperature range from -55°C to 125°C. Straight orientation with cost-effective square tail socket strip design. Complies with Tiger Buy™ contact system standards.
Ideal for board-to-board electronic connections in industrial and commercial applications. Explore more high-quality PCB connectors and sockets from Samtec at EnvMart for reliable and precision electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 5.1 A and a voltage rating of 281 V, making it suitable for various electronic applications.
The operating temperature range for this socket is from -55°C to 125°C, allowing it to function effectively in extreme conditions.
This unit features a through-hole solder termination type, ensuring secure mounting on PCBs.
The housing is made from liquid crystal polymer, while the contacts are bronze with gold plating for excellent conductivity and corrosion resistance.
This model has a total of 34 contacts arranged in 2 rows, designed for board-to-board connections.
The pitch size for this socket is 2 mm, which is standard for many PCB applications.
This connector is designed with a straight orientation, facilitating easy installation on PCBs.
It features a FleXYZ™ design that allows flexibility in three axes, providing versatility in board placement during assembly.
This socket complies with the Tiger Buy™ contact system standard, ensuring reliable performance in demanding conditions.
The sub-type of this socket is a cost-effective square tail socket strip, designed for efficient PCB mounting.
This PCB socket is manufactured in India, reflecting its origin in the production process.
It is widely used in industrial electronics, manufacturing assembly lines, and commercial electronics requiring high signal integrity and durability.
