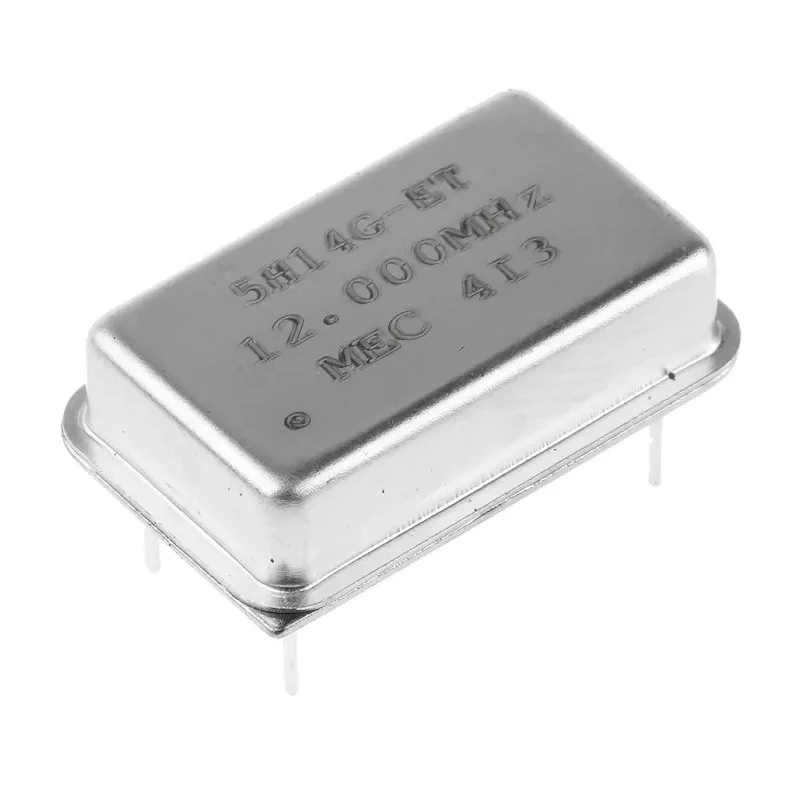

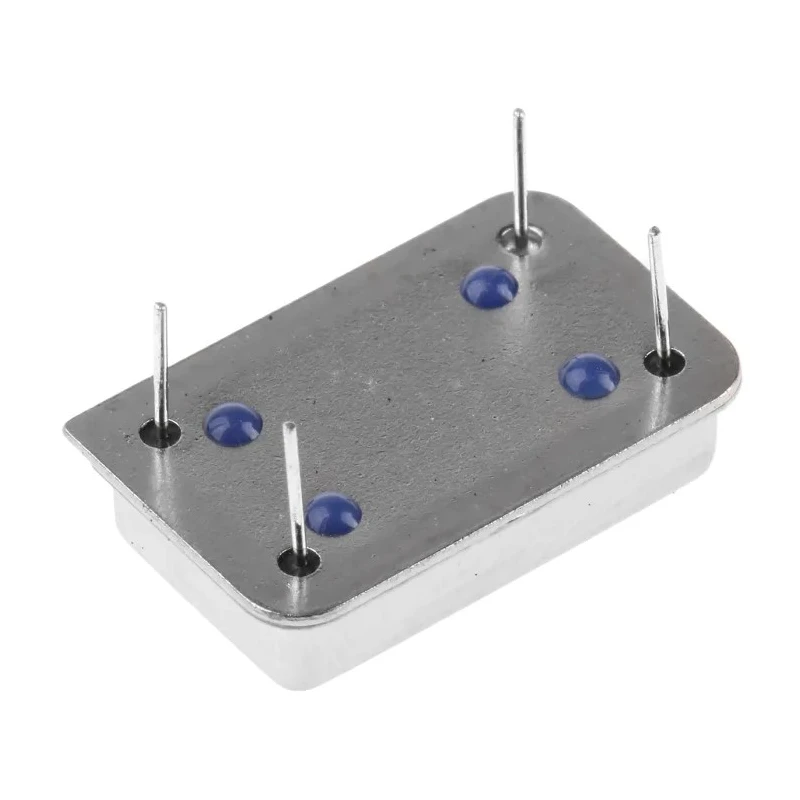

MERCURY 12MHz Clock Oscillator ±50 ppm HCMOS TTL 14-Pin PDIP 5H14ET-12.000

The MERCURY 5H14ET-12.000 is a precision 12MHz clock oscillator designed for high stability timing applications, featuring ±50 ppm frequency stability and compatible HCMOS and TTL outputs. Housed in an industry-standard 14-pin PDIP metal package, this through-hole oscillator is engineered for robust performance at supply voltages up to 5V.

This oscillator is ideal for use in industrial electronics, laboratory equipment, communication devices, and embedded systems requiring dependable and accurate clock signals. It maintains consistent operation over a wide temperature range from -40°C to 85°C, making it suitable for harsh environments and demanding applications.

The compact form factor with dimensions of 20.2mm length, 10.7mm width, and 5.08mm height facilitates easy PCB integration while ensuring long-term reliability. Compliance with RoHS directives ensures the product meets environmental standards for hazardous substances.

Operates at a precise 12MHz output frequency with ±50 ppm stability. HCMOS and TTL compatible output levels provide versatility for various digital circuits. Works efficiently at a maximum supply voltage of 5V, minimizing power consumption.

Extended operating temperature range from -40°C to 85°C for industrial-grade applications. Standard 14-pin PDIP package enables straightforward installation via through-hole mounting. RoHS certification guarantees environmentally friendly manufacturing processes.

Produced in Taiwan, reflecting high manufacturing quality and standards.

This MERCURY clock oscillator is suitable for use in electronics manufacturing, telecommunications equipment, and development boards where precise timing is crucial. Explore similar high-quality oscillators in the Crystal Oscillator category at EnvMart for your industrial and laboratory needs.
