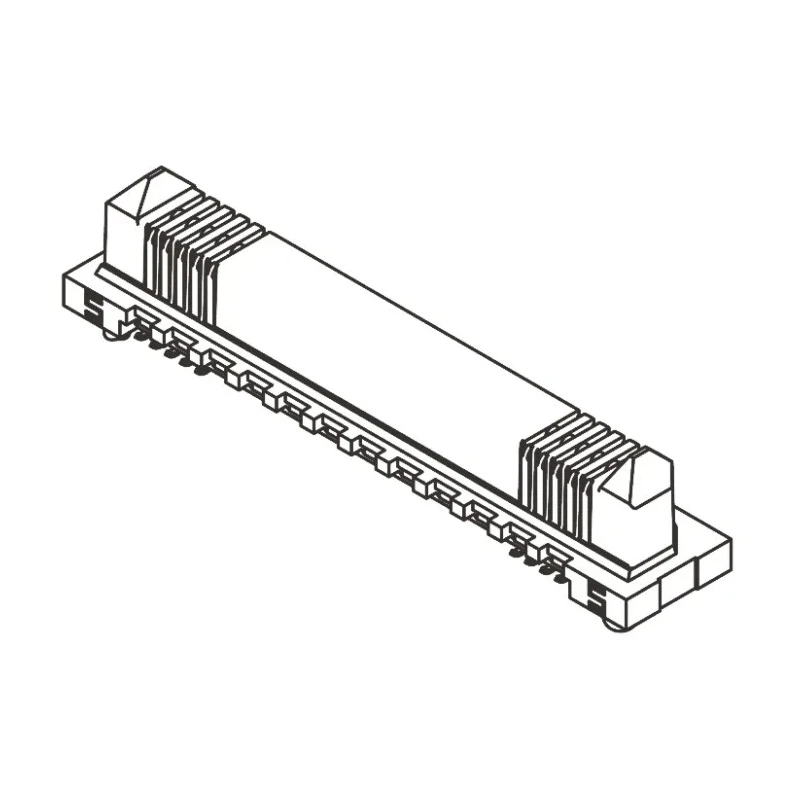

Samtec ERM8 Series Straight Surface PCB Header 100 Contact 0.8 mm Pitch 2 Row Shrouded ERM8

Samtec ERM8 Series model ERM8-050-02.0-S-DV-TR is a Straight Surface Mount PCB Header designed for high-speed board-to-board connections. This connector features 100 male contacts arranged in 2 rows with a tight 0.8 mm pitch, optimizing space and signal integrity on PCBs. The housing is made from robust black liquid crystal polymer (LCP), ensuring resistance to mechanical and thermal stresses in industrial electronic assemblies.

The phosphor bronze contacts are plated with 0.76 μm of gold on the contact area to provide excellent electrical conductivity and durability, while the tail area is tin plated to facilitate soldering onto printed circuit boards. It supports currents up to 1.4 A and voltage up to 200 V, suitable for many electronic and industrial applications. Its operating temperature ranges from -55°C to 125°C, offering reliable performance in harsh environments.

The connector mounts via surface mount technology (SMT) with a straight orientation, making it compatible with automated PCB assembly lines. The shrouded body design enhances protection against contaminants and ensures precise mating with compatible connectors, particularly the ERF8 series sockets.

This PCB header is commonly used in industrial electronics, telecommunications, computing equipment, and other commercial manufacturing sectors where compact, reliable board-to-board connections are essential. The high pin count supports dense circuits and high-speed signal transmission in compact assemblies.

0.8 mm pitch and 2-row contact arrangement improve PCB space utilization. Housing constructed of durable black LCP for enhanced mechanical stability. Gold plating on contacts enhances signal integrity and corrosion resistance.

Wide operating temperature range suits industrial and commercial uses. Solder termination ensures secure and robust PCB mounting. Shrouded design protects contacts and aids connector alignment during assembly. Compatible with ERF8 series for versatile connectivity.

Supports board-to-board connection systems in demanding applications.
