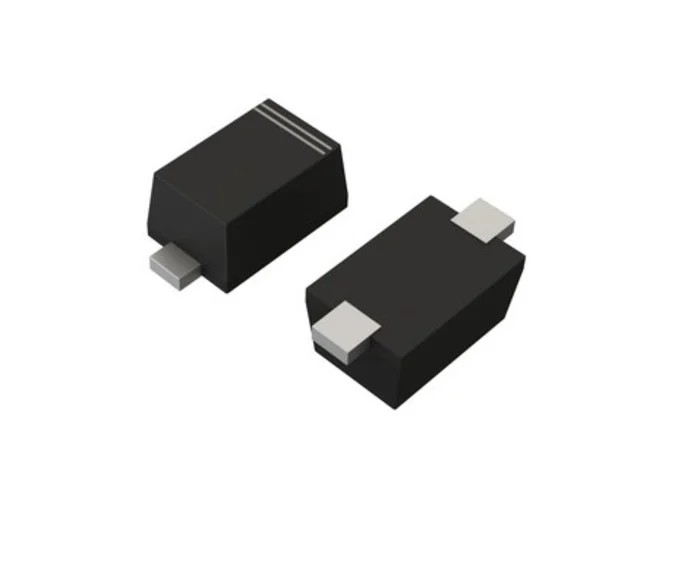

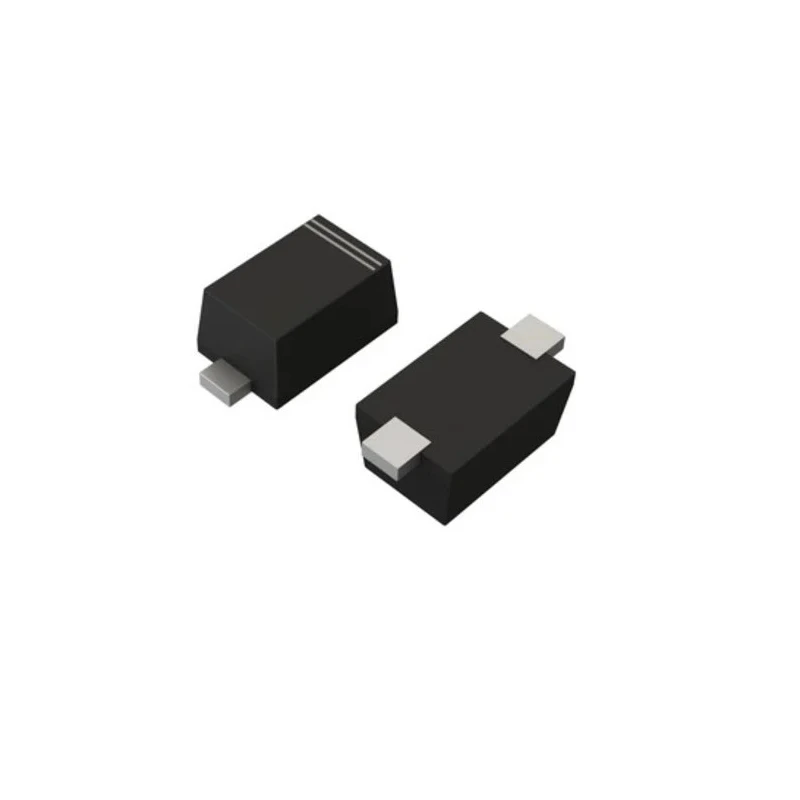

ROHM Schottky Barrier Diode 30 V 30 mA Surface Mount SOD-523 RB751SM-40FHT2R

Free Delivery in India | Lowest Global Shipping Charges

ROHM Schottky Barrier Diode 30 V 30 mA Surface Mount SOD-523 RB751SM-40FHT2R

Name: ROHM Schottky Barrier Diode 30 V 30 mA Surface Mount SOD-523 RB751SM-40FHT2R
Brand: ROHM
SKU: 110340
Price: 0.07 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.7mm
Length	1.25mm
Model	RB751SM-40FHT2R
Width	0.85mm
Mount Type	Surface
Series	RB751SM
Maximum Operating Temperature	150°C
Package Type	SOD-523
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	30mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Maximum Forward Voltage Vf	0.37V

Key Features

The diode features a small SOD-523 package for compact PCB layouts.
Maximum continuous forward current is 30 mA, suitable for low current circuits.
Peak reverse repetitive voltage rating is 30 V ensuring reliable blocking capability.
Maximum forward voltage drop is 0.37 V, contributing to higher efficiency.
The device supports an operating temperature up to 150°C for robust thermal performance.
It includes 2 pins with a single diode configuration for simplified circuit design.
Complies with Automotive Standard AEC-Q101 for automotive applications.
The physical dimensions are 1.25 mm length, 0.85 mm width, and 0.7 mm height, enabling compact electronic assemblies.

Product Description

ROHM RB751SM-40FHT2R Schottky Barrier Diode is engineered with epitaxial planar technology in a small SOD-523 surface mount package. This diode provides low capacitance and high reliability, making it ideal for high-speed switching applications in electronic circuits.

This Schottky diode has a maximum continuous forward current of 30 mA and can withstand a peak reverse repetitive voltage of 30 V, ensuring efficient operation in low power applications. The maximum forward voltage drop of 0.37 V helps minimize power loss and heat generation.

Designed for rugged use, it tolerates operation temperatures up to 150°C, suitable for environments with significant thermal variation. The diode’s 2-pin configuration and small form factor (1.25 mm × 0.85 mm × 0.7 mm) enable compact and dense PCB designs.

Certified to Automotive Standard AEC-Q101, the RB751SM-40FHT2R is reliable for automotive electronics and other demanding industrial use cases. The diode features a small SOD-523 package for compact PCB layouts. Maximum continuous forward current is 30 mA for low current circuits.

Peak reverse repetitive voltage rating is 30 V ensuring reliable blocking. The device offers a maximum forward voltage drop of 0.37 V for efficiency. Supports an operating temperature up to 150°C for robust performance. Two-pin configuration simplifies circuit design.

AEC-Q101 certification confirms automotive-grade reliability. Compact dimensions enable high-density PCB assembly.

This Schottky diode is suited for industrial, automotive, consumer electronics, and power supply protection applications. Its high speed switching ability and low voltage drop make it a preferred choice for efficient diode designs.
