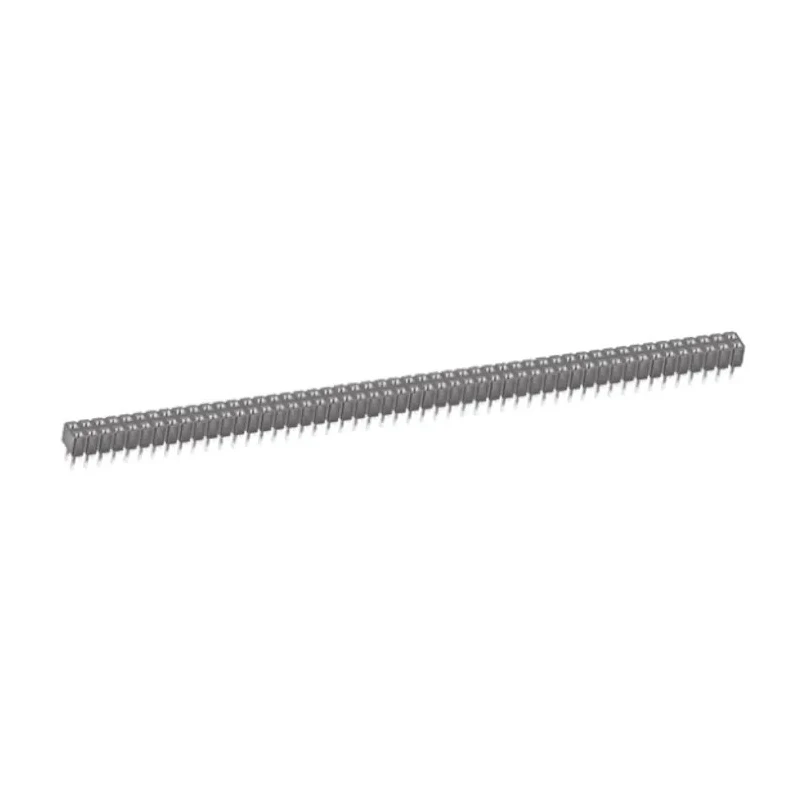

Samtec CES Series 100-Contact 2 Row 2.54 mm Pitch Board-to-Board Straight Through Hole PCB Socket CES-150-01-T-D

Samtec CES-150-01-T-D is a high-quality straight through hole PCB socket engineered for board-to-board connector applications. This CES series socket features 100 contacts arranged in 2 rows with a 2.54 mm pitch, designed to provide reliable electrical connections in electronic assemblies.

The socket housing is molded from black glass filled polyester, providing robust mechanical strength and resistance to environmental stresses. Contacts are manufactured from phosphor bronze and finished with a matte tin plating to ensure excellent electrical conductivity and corrosion resistance. The device supports a voltage rating of 333V and current capacity up to 12A, making it suitable for numerous industrial electronic applications.

Designed for operating temperatures ranging from -55°C to 105°C, this socket remains reliable in harsh conditions. The low profile allows for space-saving PCB assembly with a 3.25mm solder tail length to facilitate secure mounting through through-hole technology. Its straight orientation suits board-to-board connection systems where stable multi-contact connections are needed.

The CES series is RoHS compliant, ensuring adherence to stringent environmental safety regulations. This particular model, CES-150-01-T-D, is a double-row configuration, complementary to single-row variants such as CES-1XX-01-X-S. Compatibility with TLW, TSM, and TSW series low profile square post headers enhances its applicability for versatile electrical designs.

Ideal for industrial, electronic manufacturing, and prototyping environments, this PCB socket supports dense, durable, and precise electrical interconnections. Constructed with black glass filled polyester housing for durability.

Contacts made of phosphor bronze with matte tin plating ensures excellent conductivity. Designed for operating temperatures from -55°C to 105°C. Supports a maximum voltage of 333V and current rating of 12A. Low profile design with a 3.25mm solder tail for compact PCB mounting.

Orientation is straight, suitable for board-to-board connector systems. Complies with RoHS standards ensuring environmentally safe materials. Compatible with TLW, TSM, and TSW series square post headers for flexible connectivity.

Explore more PCB Socket and connector solutions for your electronic projects and industrial applications on EnvMart.
