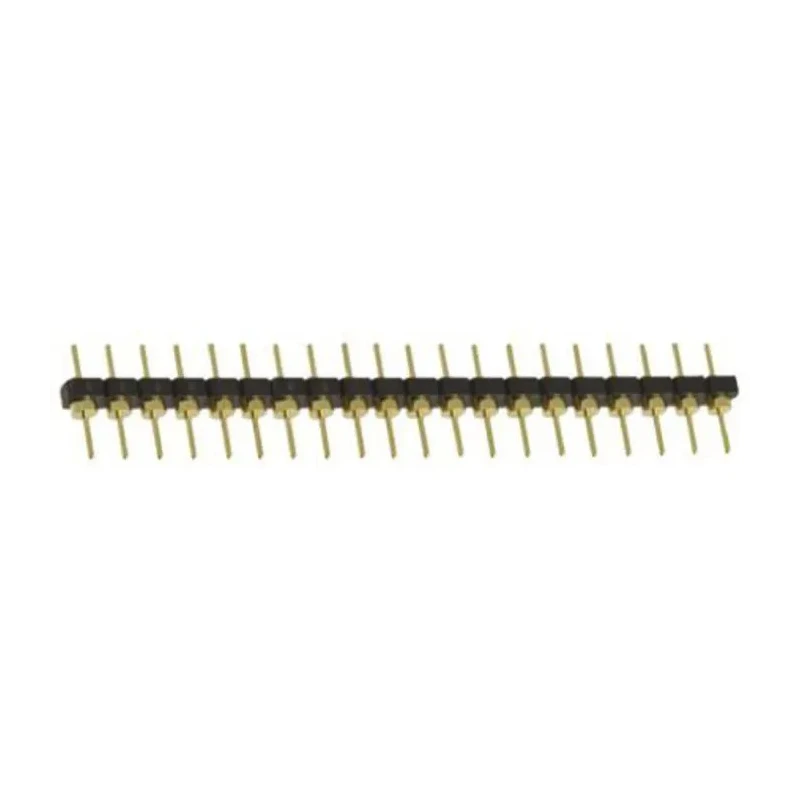

Samtec BBL Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded BBL-120-G-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-120-G-E |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 2.67mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- Designed for board-to-board connections with a straight orientation.
- Unshrouded design for easy soldering and inspection.
- Contacts are made of brass with a durable gold plating.
- Mount type is through hole for secure PCB attachment.
- Rated for 1 Amp current capacity suitable for low power applications.
- Tail pin length is 3.18 mm and mating pin length is 2.67 mm for reliable connectivity.
- Operates efficiently in temperature ranges from -55°C to +125°C.
- Low profile design achieves 3.89 mm board spacing when mated with compatible socket strips.
Product Description
Samtec BBL-120-G-E is a high precision straight through hole pin header designed for robust board-to-board connections. Featuring 20 male contacts in a single row, this PCB connector provides a 2.54 mm pitch and an unshrouded body made from black glass-filled polyester, ensuring both durability and ease of installation.
The contacts are crafted from phosphor bronze with a 0.51 μm gold plating over a brass shell, offering excellent conductivity and corrosion resistance. This header is rated for a current of 1 Amp and supports a tail pin length of 3.18 mm with a mating pin length of 2.67 mm, making it suitable for precise soldering in through-hole mount applications.
Designed to operate reliably in industrial and commercial environments, the BBL series supports temperatures from -55°C to +125°C. Its low-profile design achieves a 3.89 mm board spacing when paired with SL series socket strips, facilitating compact stacking in electronic assemblies.
This component is widely used in electronics manufacturing, prototyping, industrial control systems, and other applications requiring durable and reliable PCB connectors. Board-to-board connector with straight orientation and unshrouded design.
20 gold-plated brass contacts ensure superior electrical performance. Through hole mount type with solder termination for secure PCB attachment. Low profile achieves minimal board spacing to optimize device size. Wide temperature range from -55°C to +125°C supports harsh environmental conditions.
Compatible with SL and SS series socket strips for flexibility in design. Ideal for industrial, laboratory, manufacturing, and electronics prototyping uses. Explore more high-quality connectors and PCB components within the Electronics & Electricals category at EnvMart for your professional and industrial needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current capacity of 1 Amp, suitable for low power applications.
The contacts have a pitch of 2.54 mm, which is standard for many PCB connectors.
It uses a through hole mounting type, allowing for secure attachment to the PCB.
The contacts are made of brass and are plated with 0.51 μm gold for improved conductivity and corrosion resistance.
The tail pin length is 3.18 mm, which aids in reliable connectivity during soldering.
It operates efficiently in temperature ranges from -55°C to +125°C, making it suitable for various environments.
This model features 20 male contacts in a single row.
The mating pin length is 2.67 mm, which helps ensure a secure connection when mated with compatible sockets.
Yes, it is compatible with SL series and SS series socket strips, enhancing design flexibility.
The design orientation is straight, which facilitates easy installation and soldering.
It uses a solder termination type for secure connections to the PCB.
The country of origin for this product is India.
