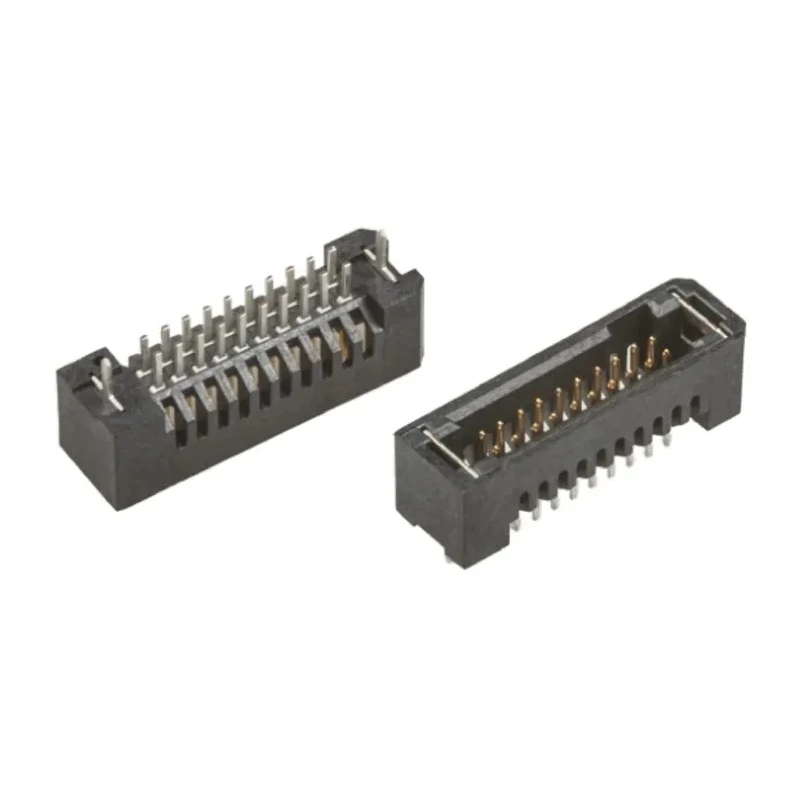

Samtec TFM Series Straight Through Hole PCB Header, 50 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-125-01-S-D-WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5A |
| Model | TFM-125-01-S-D-WT |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| TFM-1xx-01-L-D | 0.38 μm Gold plating on contact area and Matte Tin on tails |
| TFM-1xx-01-S-D-WT | 0.76 μm Gold plating on contact area and Matte Tin on tails |
| TFM-1xx-01-L-D-RA | for Right Angle / Horizontal orientation |
Key Features
- Features 50 male contacts arranged in two rows for compact PCB interfacing.
- Shrouded design ensures secure mating and protection against misalignment.
- Contacts made from phosphor bronze with 0.76 μm gold plating on contact area and matte tin on tails for excellent conductivity and corrosion resistance.
- Supports a current rating of 5A and a voltage rating of 350V for robust performance.
- Constructed using liquid crystal polymer housing material for durability and high temperature resistance.
- Designed for through hole mounting with solder termination to ensure stable mechanical and electrical connection.
- Operating temperature range from -55°C to 125°C for versatile industrial environments.
- Suitable for board-to-board and wire-to-board connector systems in electronics manufacturing.
Product Description
Samtec TFM-125-01-S-D-WT is a high-performance straight through hole PCB header designed specifically for demanding electronics and industrial applications. It features 50 male contacts arranged in two rows with a fine 1.27 mm pitch, allowing dense connections on printed circuit boards.
The header uses liquid crystal polymer for its housing, offering exceptional mechanical strength and thermal stability, suitable for operating temperatures from -55°C to 125°C. The phosphor bronze contacts are plated with 0.76 μm gold on the contact area and matte tin on the tails, ensuring low contact resistance, excellent conductivity, and corrosion resistance. This plating ensures durability and longevity in harsh operating environments.
Rated for 5 Ampere current and 350 Volt voltage, the connector supports reliable power and signal transmission for electronic assemblies. The shrouded design aids in proper alignment and secure mating with matching connectors, reducing the risk of connection errors. Designed for through hole mounting, this header is soldered to PCB pads, providing stable mechanical fixation and electrical performance.
This model supports multiple connector system types including board-to-board and wire-to-board configurations, making it a versatile choice across electronics manufacturing, industrial control systems, and telecommunications equipment.
50 male contacts arranged in two rows, 1.27 mm pitch. Liquid crystal polymer housing for strength and heat resistance. Phosphor bronze contacts with 0.76 μm gold plating and matte tin tails. Rated for 5A current and 350V voltage.
Operating temperature range -55°C to 125°C. Shrouded design enhances secure mating and alignment. Through hole mount with solder termination. Suitable for board-to-board and wire-to-board connections.
This Samtec TFM series PCB header is ideal for use in industrial electronics, manufacturing equipment, automotive electronics, telecommunications, and laboratory instrumentation, providing reliable connectivity and durability in critical applications. Browse our extensive collection of Samtec electronic components and PCB connectors at EnvMart for all your industrial and commercial needs.
Explore more products in our PCB Headers category.
