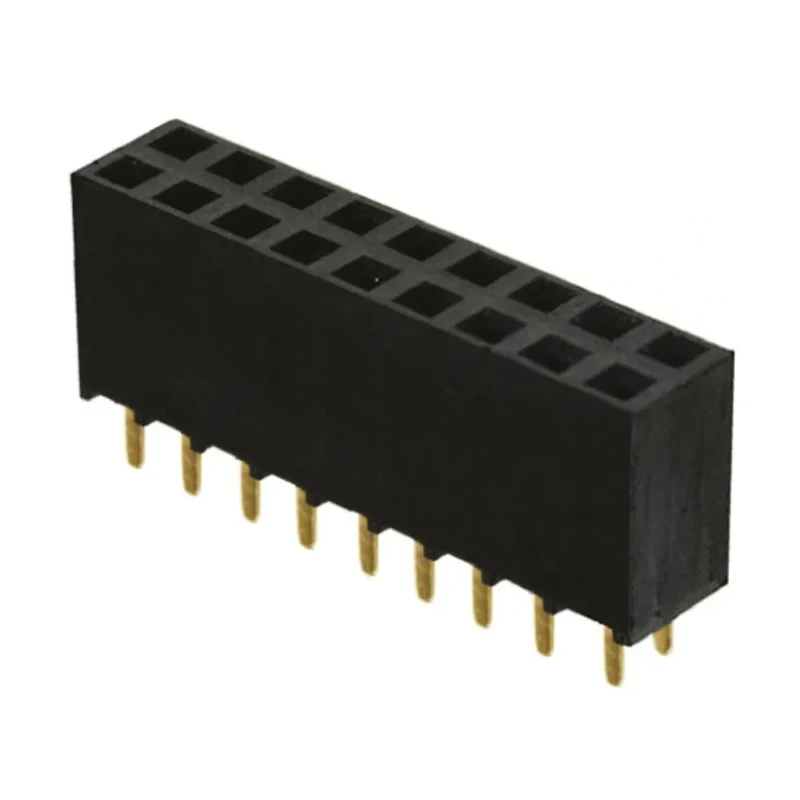

Samtec SSW Series Straight Through Hole PCB Socket 18-Contact 2 Row 2.54 mm Pitch Solder SSW-109-01-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 465, 655V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.7A |
| Model | SSW-109-01-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Designed for board-to-board connection applications.
- Features liquid crystal polymer housing material with high durability.
- Supports current of 4.7A and voltage ratings of 465 and 655V AC.
- Operating temperature ranges from -55°C to 125°C suitable for extreme environments.
- Phosphor bronze contacts with gold plating ensure excellent electrical performance.
- Low insertion force contacts provide reliable electrical connection and easy mating.
- Female contact gender with straight orientation for simple board stacking.
- Robust design suitable for industrial, medical, automotive, and IT applications.
Product Description
Samtec SSW-109-01-G-D is a high quality Straight Through Hole PCB Socket designed for 18-contact, 2-row configurations with a 2.54 mm pitch and solder termination. This PCB socket facilitates reliable board-to-board connections and is engineered with liquid crystal polymer housing to ensure insulation and long-term durability.
With a current rating of 4.7A and voltage specifications of 465 and 655V AC, it is suitable for demanding industrial and commercial applications. The phosphor bronze contacts gold plated for superior conductivity offer low average insertion force of 0.83N for easy mating and high retention.
Its operational temperature range from -55°C to 125°C enables use in extreme environments including automotive assembly lines, medical device manufacturing, IT hubs, and pharmaceutical production. The female contact gender and straight body orientation supports straightforward board stacking without complexity.
Additionally, the connector supports high-speed signal transmission up to 8Gbps, making it ideal for modern communication systems requiring fast data transfer. Designed for board-to-board applications with 18 contacts in 2 rows.
Durable liquid crystal polymer housing offers excellent electrical insulation. Current rating of 4.7A and voltage up to 655V AC for versatile use cases. Wide operating temperature range from -55°C to 125°C. Phosphor bronze contacts with gold plating ensure electrical reliability.
Low insertion force contacts simplify connector handling and maintenance. Supports high-speed data transfer rates up to 8Gbps. Suitable for use in medical, automotive, IT, security, and industrial sectors.
This Samtec SSW Series PCB Socket is a robust and reliable connector solution engineered to meet industrial-grade standards for connector performance and durability. It enables efficient and secure circuit board interconnections in various commercial and industrial applications.
Explore more PCB Sockets from Samtec and other quality electronics components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Samtec SSW-109-01-G-D PCB socket has a current rating of 4.7A.
This model supports voltage ratings of 465V and 655V AC.
The operating temperature range for this connector is from -55°C to 125°C.
This PCB socket features 18 contacts arranged in 2 rows.
The SSW-109-01-G-D uses solder termination.
The pitch of the contacts in this PCB socket is 2.54 mm.
The housing of this connector is made from liquid crystal polymer.
The contact material used in this model is phosphor bronze with gold plating.
The contacts in this PCB socket are oriented straight.
This model is suitable for applications in industrial, medical, automotive, and IT sectors.
This connector has a low average insertion force of 0.83N for easy mating.
The Samtec SSW-109-01-G-D is manufactured in India.
