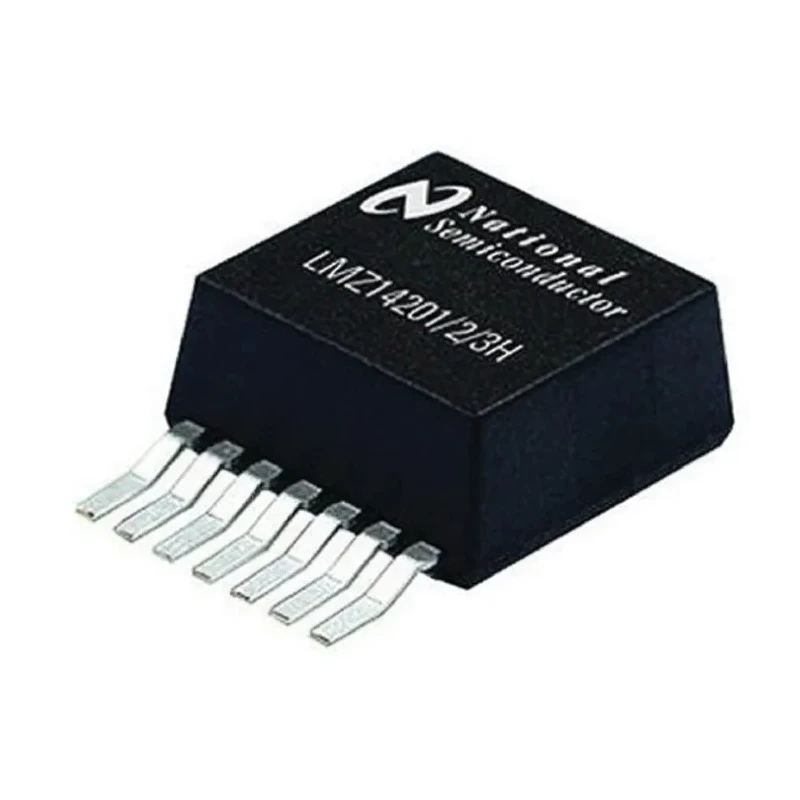

Texas Instruments Buck Converter Surface Mount 6V Output Voltage 2A Output Current LMZ14202TZ-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 6V |
| Brand | Texas Instruments |
| Efficiency | 90% |
| Length | 10.16mm |
| Model | LMZ14202TZ-ADJ/NOPB |
| Depth | 1.3mm |
| Width | 9.85mm |
| Mount Type | Surface |
| Series | LMZ1420 |
| Output Current | 2A |
| Package Type | TO-PMOD |
| Load Regulation | 1.5 mV/A |
| Minimum Operating Temperature | 125°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 42V |
| Line Regulation | 0.01 % |
| Standards/Approvals | REACH, ANSI, JEDEC, RoHS, ESDA |
| Minimum Input Voltage | 6V |
| Number of Pins | 7 |
| Output Voltage 1 | 6V |
Key Features
- Operates efficiently with up to 90% efficiency ensuring low power loss.
- Supports input voltage range of 6V minimum up to 42V maximum.
- Compact TO-PMOD package measuring 10.16mm length, 9.85mm width, and 1.3mm depth.
- Includes features like precision enable pin and soft-start pin for safe startup and sequencing.
- Meets multiple industry standards including REACH, ANSI, JEDEC, RoHS, and ESDA.
- 7-pin configuration facilitating easy integration in power supply circuits.
- Line regulation of 0.01% and load regulation of 1.5mV/A for output stability.
- Wide operating temperature range rated at 125°C maximum ensuring robust performance.
Product Description
Texas Instruments LMZ14202TZ-ADJ/NOPB buck converter is a surface mount power module designed for efficient voltage step-down applications requiring a 6V output voltage and 2A output current. It supports a broad input voltage range up to a maximum of 42V, making it suitable for various industrial and electronic power supply uses.
This power module belongs to the LMZ-1 series SIMPLE SWITCHER® family designed to offer easy integration in complex electrical systems while maintaining superior thermal performance and EMI protection.
The converter features an integrated shielded inductor and precision enable and soft-start pins that facilitate controlled startup sequences and reliable power management. Its compact TO-PMOD package is optimized for space-constrained applications.
With 7 pins and a compact dimension of 10.16mm length, 9.85mm width, and 1.3mm depth, it ensures straightforward mounting on PCBs. The module demonstrates excellent line regulation of 0.01% and load regulation of 1.5mV/A, ensuring output voltage remains stable under varying loads.
It complies with critical industry standards including REACH, ANSI, JEDEC, RoHS, and ESDA, guaranteeing safety, environmental compliance, and compatibility with modern electronic manufacturing requirements.
This non-isolated module is ideal for industrial electronics, power supply designs, and embedded systems that demand reliable power conversion with minimal EMI and thermal issues. Operates efficiently with up to 90% efficiency ensuring low power loss.
Supports input voltage range of 6V minimum up to 42V maximum. Compact TO-PMOD package measuring 10.16mm length, 9.85mm width, and 1.3mm depth. Includes features like precision enable pin and soft-start pin for safe startup and sequencing.
Meets multiple industry standards including REACH, ANSI, JEDEC, RoHS, and ESDA. 7-pin configuration facilitating easy integration in power supply circuits. Line regulation of 0.01% and load regulation of 1.5mV/A for output stability.
Wide operating temperature range rated at 125°C maximum ensuring robust performance. Non-isolated power module suitable for reliable thermal and EMI performance. Explore more power solutions and converters in the Electronics & Electricals category at EnvMart.
Explore more products in our Voltage Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LMZ14202TZ-ADJ/NOPB buck converter provides a 6V output voltage with a maximum output current of 2A.
This model supports an input voltage range from a minimum of 6V up to a maximum of 42V.
The TO-PMOD package measures 10.16mm in length, 9.85mm in width, and 1.3mm in depth.
It operates with an efficiency of up to 90%, ensuring low power loss during operation.
The line regulation is 0.01% and the load regulation is 1.5mV/A, ensuring stable output voltage under varying loads.
This model includes a precision enable pin and a soft-start pin to facilitate controlled startup sequences.
It meets multiple industry standards including REACH, ANSI, JEDEC, RoHS, and ESDA.
The LMZ14202TZ-ADJ/NOPB features a 7-pin configuration for easy integration into power supply circuits.
The maximum operating temperature for this model is rated at 125°C.
This power module is non-isolated, suitable for reliable thermal and EMI performance.
This model is designed for surface mounting, optimizing it for space-constrained applications.
