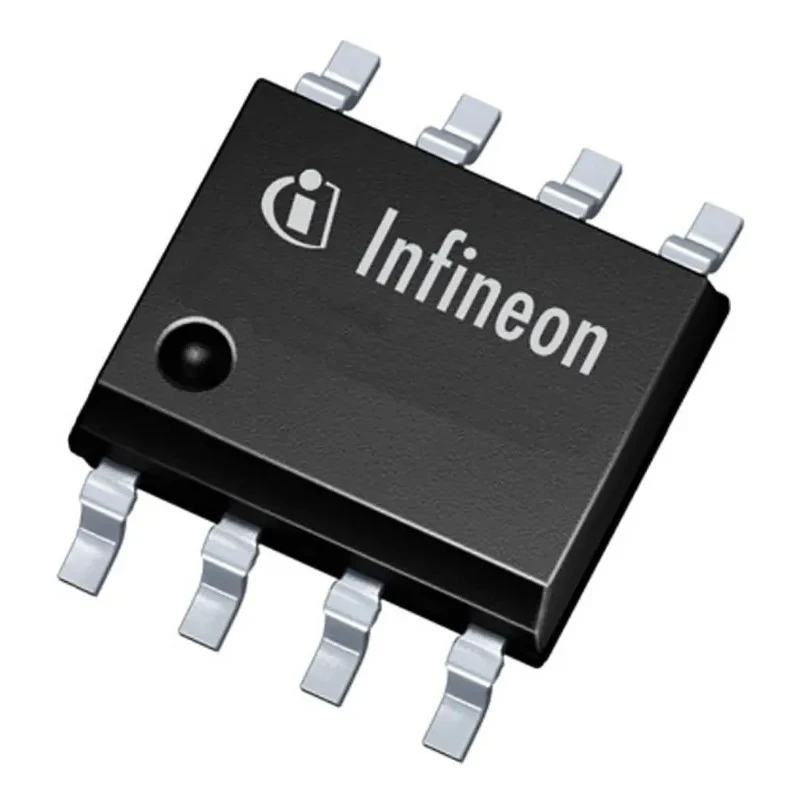

Infineon MOSFET Gate Driver 8-Pin Surface Mount 17V 4A Output Current 1EDI20N12AFXUMA1

Infineon 1EDI20N12AFXUMA1 MOSFET Gate Driver is a highly efficient power management integrated circuit designed to drive MOSFETs with a peak output current of 4A. Housed in an 8-pin DSO surface mount package, it provides reliable gate drive capability at a fixed 17V supply voltage, making it ideal for applications in AC motors, brushless DC motor drives, and other industrial power management systems.

This gate driver features two outputs allowing control of multiple switches with precise timing due to its fast switching performance (19ns fall time and 20ns rise time). Its input-to-output isolation voltage protects sensitive control circuitry from high voltages. The device operates reliably over a broad temperature range from -40°C to 125°C, making it suitable for harsh environmental conditions.

Compact in size (5mm x 4mm x 1.65mm), the Infineon 1EDI20N12AFXUMA1 supports surface mount technology (SMT), facilitating cost-effective automated PCB assembly. It complies with industrial standards but does not list specific approvals or automotive standards. This driver is manufactured in China under Infineon's stringent quality controls.

The MOSFET gate driver is intended for power applications requiring high-speed switching gates and is especially useful in power conversion, motor control, and industrial automation sectors. Its dual driver outputs and isolated input make it a versatile component for designing robust and efficient power control circuits.

Offers 4A output current suitable for MOSFET switching applications. Equipped with 8-pin DSO package for surface mounting. Operates at a fixed 17V supply voltage ensuring stable functionality. Two driver outputs with fast 19ns fall time and 20ns rise time enable efficient switching.

Wide operating temperature range from -40°C to 125°C ideal for industrial environments. Designed for MOSFET type driver with isolated input to output voltage protection. Compact dimensions of 5mm length, 4mm width, and 1.65mm height for PCB space saving.

Surface mount package allows automated assembly on printed circuit boards. Manufactured in China to Infineon's quality standards. Explore the full range of Infineon power management ICs and MOSFET Gate Drivers at EnvMart for your electronics and industrial applications.
