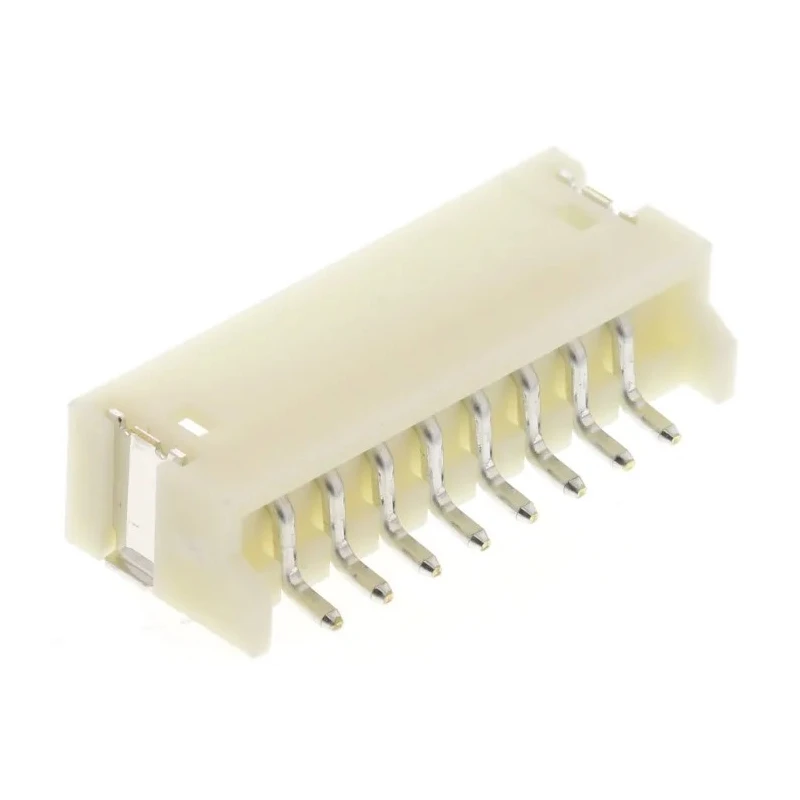

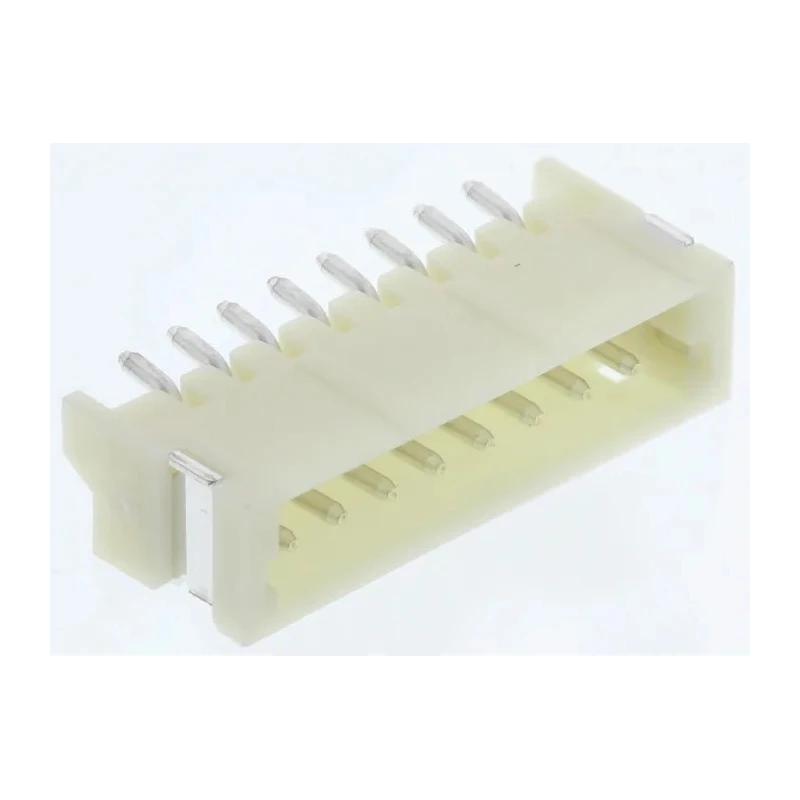

JST ZH Series Right Angle Surface PCB Header 8 Contacts 1.5 mm Pitch 1 Row Shrouded S8B-ZR-SM4A-TF (LF)(SN)

The JST S8B-ZR-SM4A-TF (LF)(SN) is a right angle surface mount PCB Header from the ZH Series designed for wire-to-board connector systems. It features 8 male contacts arranged in a single row with a pitch of 1.5 mm, ensuring compactness and efficient use of PCB space.

Constructed with brass contact material and tin plating, this shrouded header ensures reliable electrical performance and mechanical protection during operation. The side entry orientation and surface mount type provide ease of installation in automated manufacturing processes.

Rated for a voltage of 50V and current of 1A, and operable from -25°C to 85°C, this connector is suitable for diverse electronic applications requiring consistent performance in varying temperature environments.

The solder termination and shrouded design increase durability and protect the contacts against mechanical strain, making it ideal for use in industrial electronics, automation systems, consumer electronics, and communications equipment.

Compliance with UL Recognized (E60389), CSA Certified (LR20812), and TUV Certified (R9351092) standards assures quality and safety adherence. Compact 1.5 mm pitch ensures space-saving PCB design. Right angle orientation supports side entry SMT mounting.

Brass contact material with tin plating for reliable conductivity. Rated for 1A current and 50V operation voltage. Designed with shrouded housing enhancing mechanical stability and protection. Operates within temperature range of -25°C to 85°C for varied environments.

Solder termination type suitable for surface mount technology. Single row configuration with 8 male contacts. Surface mount type facilitates automated PCB assembly processes. Complies with UL Recognized, CSA Certified, and TUV Certified standards.

This JST ZH Series header is ideal for industrial, manufacturing, electronics, and communication applications requiring efficient wire-to-board connection solutions. Explore the complete range of PCB connectors on EnvMart for comprehensive electronic components selection.
