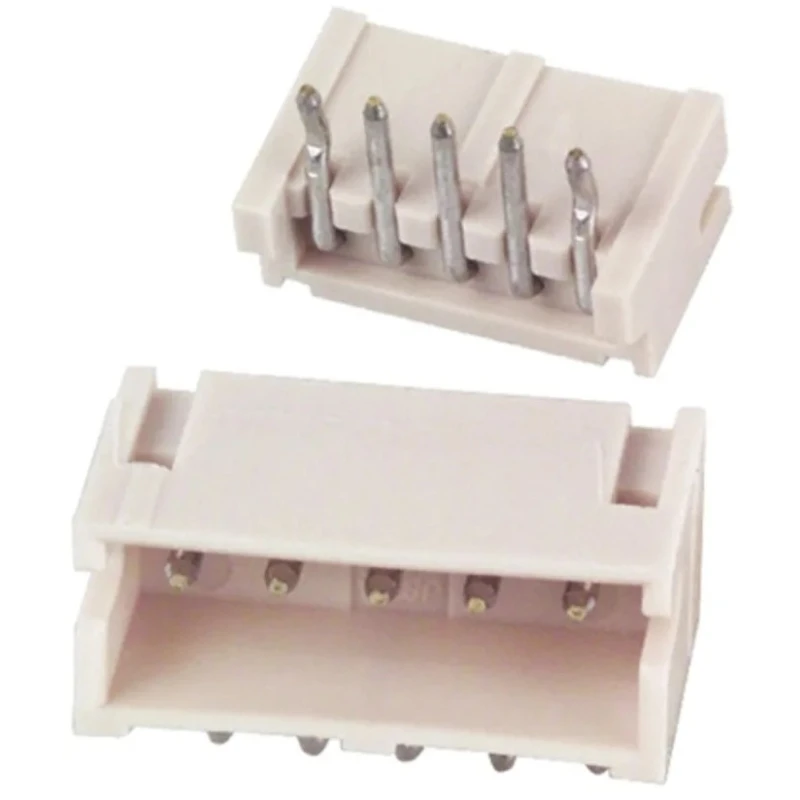

JST ZH Series Right Angle Through Hole PCB Header 5 Contact 1.5 mm Pitch 1 Row Shrouded S5B-ZR (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Series Right Angle Through Hole PCB Header 5 Contact 1.5 mm Pitch 1 Row Shrouded S5B-ZR (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Korea
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	S5B-ZR (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header features a 1.5 mm pitch for compact, low-profile connections.
The connector has 5 contacts made of brass with tin plating for reliability.
The housing is made of durable polyamide, suitable for temperatures from -25°C to 85°C.
It uses a right-angle orientation and a through-hole mount type for secure PCB insertion.
Designed for a current rating of 1A and voltage rating of 50V, meeting typical power requirements.
The termination type is solder, ensuring solid electrical connections.
The connector is shrouded, providing protection and mechanical stability.
Manufactured in the Republic of Korea, ensuring quality and consistent performance.

Product Description

JST S5B-ZR (LF)(SN) is a right-angle through hole PCB header from the ZH Series designed for wire-to-board connections with a 1.5 mm pitch and 5 contacts arranged in a single row. This shrouded header provides robust mechanical stability and protection during PCB assembly and operation.

The housing is made from polyamide, offering excellent durability and performance across a broad temperature range from -25°C to 85°C. The contacts are crafted from brass with tin plating for reliable electrical conductivity and corrosion resistance. The connector supports a current rating of 1 ampere and a voltage rating of 50 volts, appropriate for many electronic and industrial applications.

Its right-angle orientation and through-hole mount type enable secure and space-efficient PCB integration, compatible with board thickness from 0.6 to 1.2 mm. This connector is ideal for compact, low-profile wire-to-board systems where reliability and ease of assembly are critical.

The JST ZH series is recognized for its compact design, with a typical thickness of 3.5 mm and a low height profile, enabling space savings in crowded electronic assemblies. This product is manufactured in the Republic of Korea, ensuring adherence to high-quality standards.

This PCB header is compact with a 1.5 mm contact pitch for dense PCB layouts. Brass contacts with tin plating ensure reliable electrical connections. Polyamide housing provides mechanical strength and durability. Right-angle, through-hole mounting design for secure PCB attachment.

Rated for 1A current and 50V voltage, suitable for numerous applications. Solder termination type for firm connection and easy PCB assembly. Shrouded design offers excellent mechanical protection. Operating range from -25°C to 85°C supports diverse environments.

Manufactured in the Republic of Korea for quality assurance.

This JST ZH Series PCB Header is suitable for electronic, industrial manufacturing, and prototyping tasks that require reliable wire-to-board connectors in compact spaces. Explore more JST electronic components and PCB Headers at EnvMart for industrial and commercial use.
