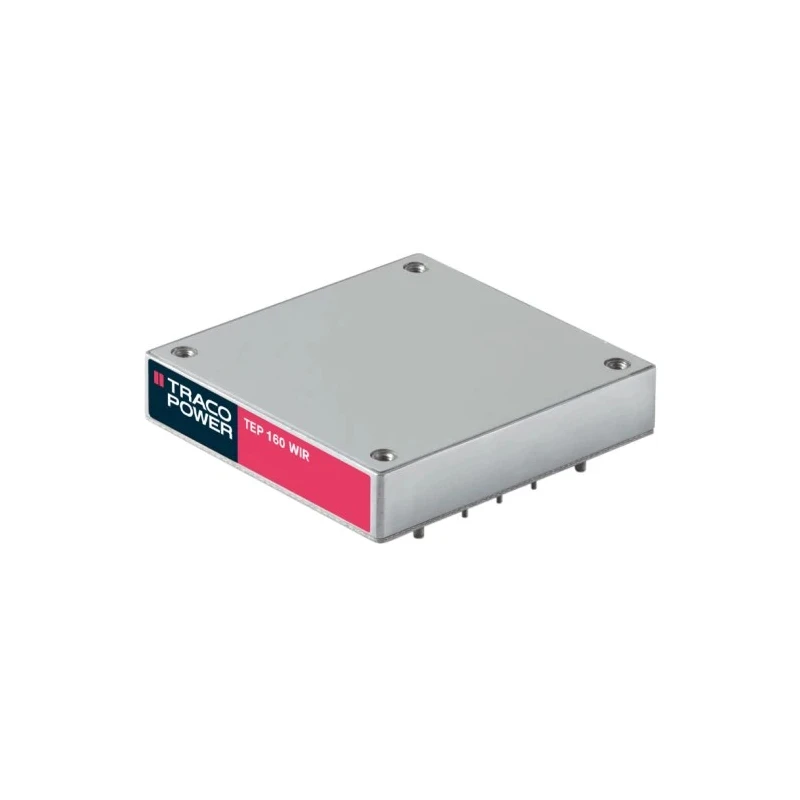

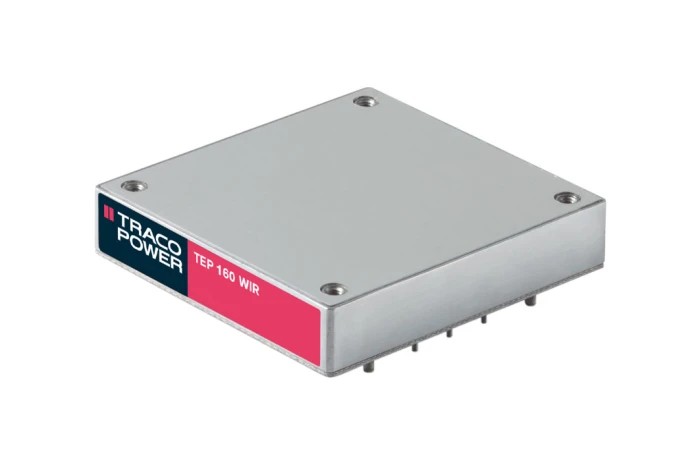

TRACOPOWER DC/DC Converter 24V 6.5A 160W Through Hole Half Brick TEP 160-4815WIR

TRACOPOWER TEP 160-4815WIR is a high-performance DC/DC Converter designed for industrial and railway compliant applications. It provides a stable 24V output voltage with a rated current of 6.5A and a maximum output power of 160W. Packed in a compact half brick through hole package, it is suitable for PCB mounting in environments requiring robust performance and reliability.

This converter features a wide input voltage range from 18V to 75V, enabling adaptability to varied power sources. Its high efficiency of up to 91% ensures energy-efficient operation with minimal heat dissipation, suitable for use without forced air cooling at 25°C ambient temperature. Operation temperature ranges from -40°C to 75°C, making it ideal for harsh industrial conditions.

The product is equipped with an isolation voltage of 2.25kV for enhanced electrical isolation and safety. The output voltage is adjustable within a 10 to -20% range allowing precise system calibration. Additionally, it has 5 output channels and a 1:6 input ratio for versatile application needs.

TRACOPOWER TEP 160-4815WIR includes several protective features such as reverse input voltage protection, overtemperature shutdown, short circuit protection, and overvoltage protection, ensuring safe and reliable operation. Compliance with EN 55022 class A/B EMC standards with external components confirms its suitability for sensitive electronic environments.

The mean time between failures (MTBF) is rated at 350,000 hours, attesting to its durability and long lifecycle, especially important for continuous industrial operations.

This DC/DC converter is particularly useful for industrial, railway, manufacturing, and electronic applications demanding stable and efficient power conversion in a compact form factor.

Wide 4:1 input voltage range supports varied power systems. Adjustable output voltage enhances flexibility for different load requirements. High efficiency reduces cooling and energy costs. Through hole mounting ensures mechanical stability and ease of integration.

Half brick package helps save PCB space. Robust thermal and electrical protections enhance reliability. EN50155 approval confirms railway application compliance. Suitable for harsh environments with wide operating temperature range.

Designed and manufactured in Taiwan, Province Of China. Explore the complete range of DC/DC Converters at EnvMart for your industrial and electronic component needs.
