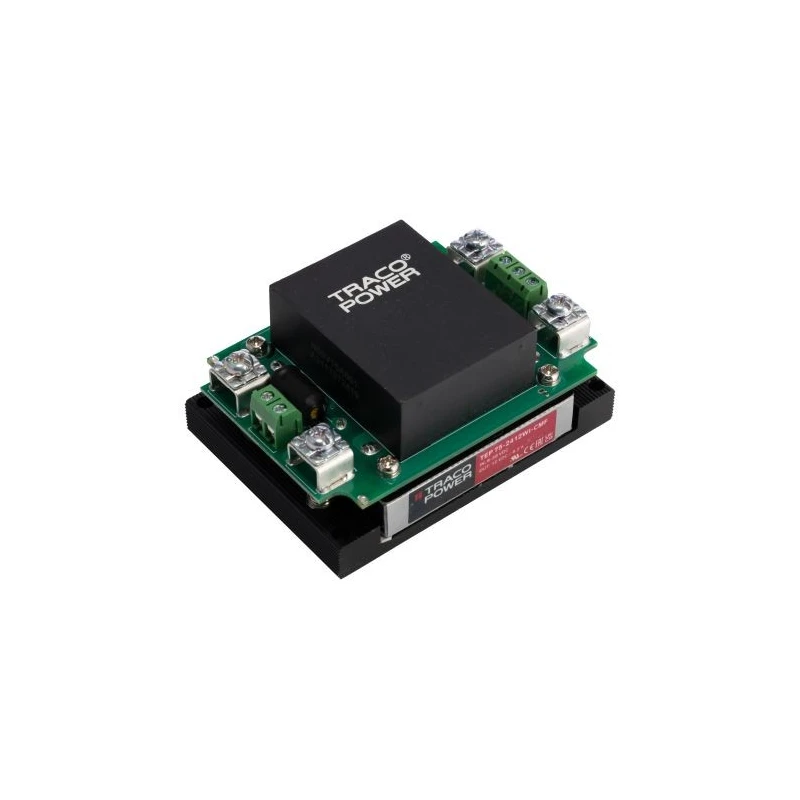

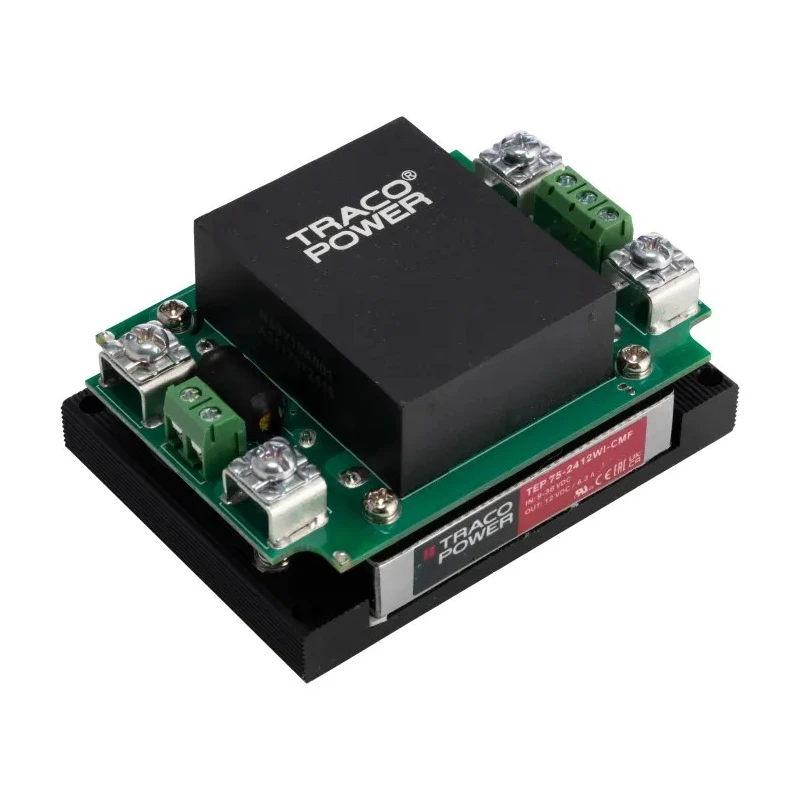

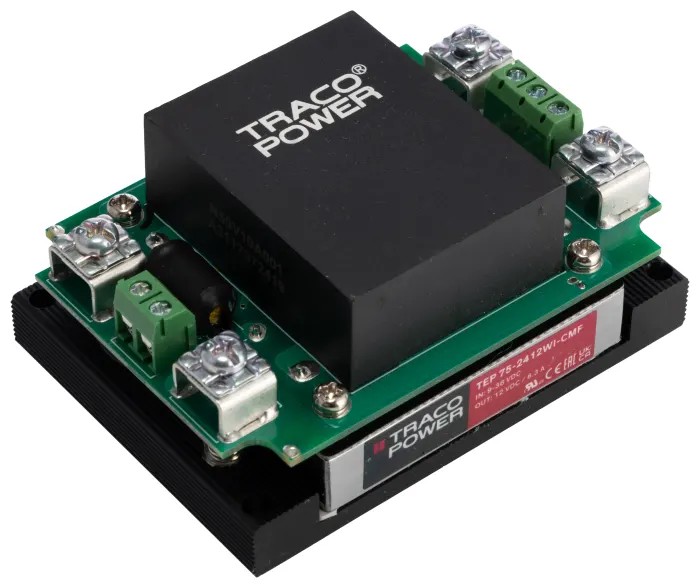

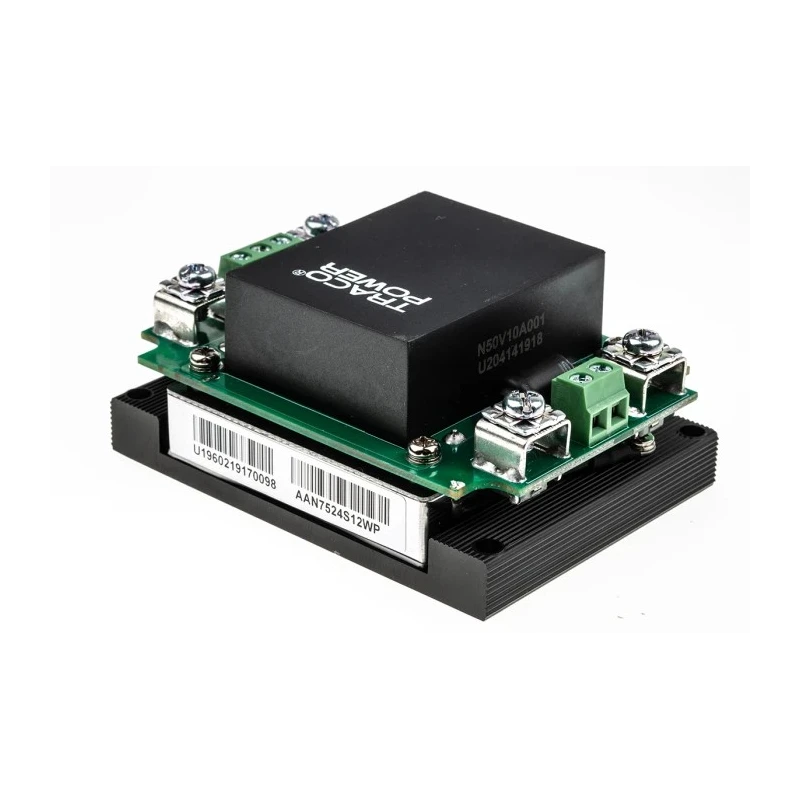

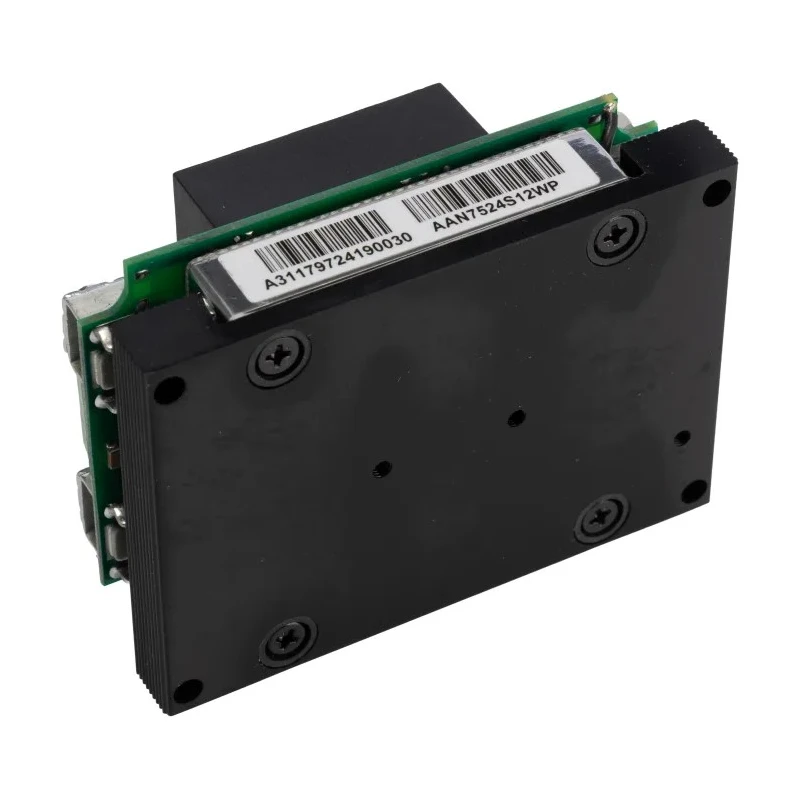

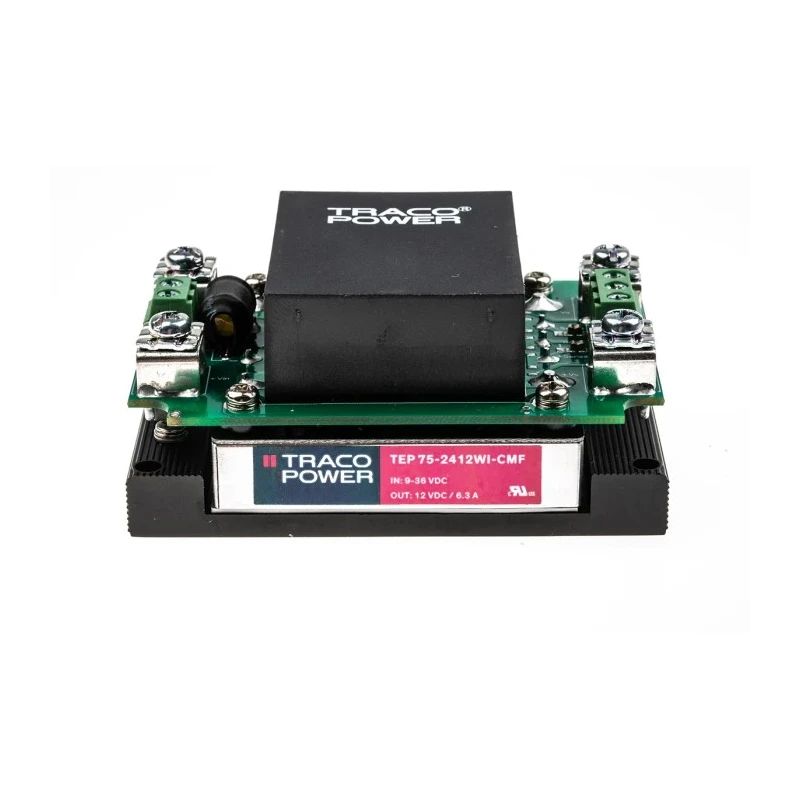

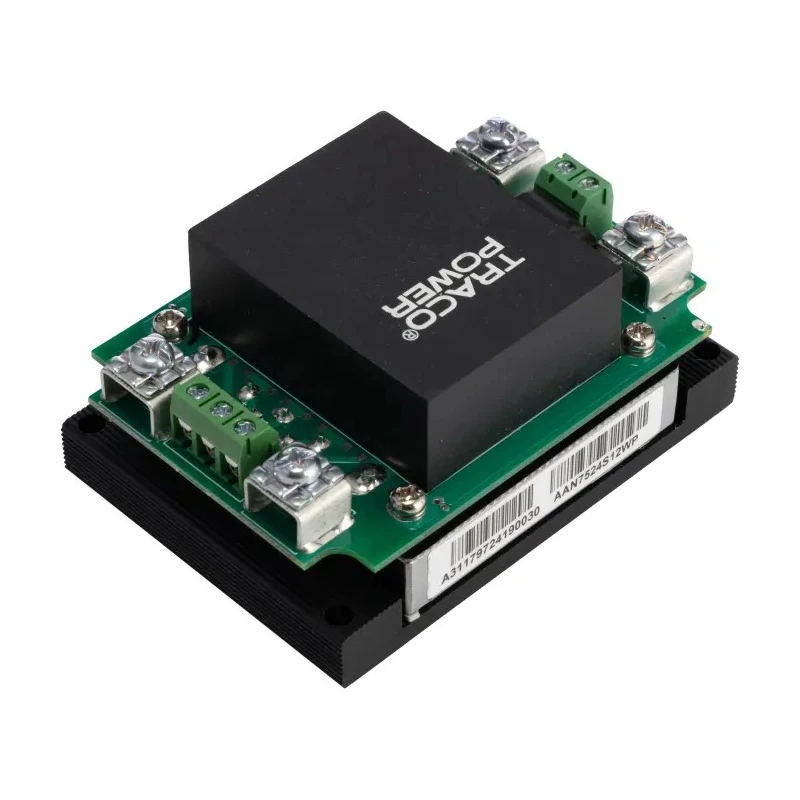

TRACOPOWER DC/DC Converter 9.6V/13.2V Output, 36V dc Input, 6.3 A Output Current, Chassis Mount, 75W TEP 75-2412WI-CMF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 85mm |
| Model | TEP 75-2412WI-CMF |
| Depth | 40.5mm |
| Width | 61mm |
| Mount Type | Chassis Mount |
| Series | TEP 75WI |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 336000h |
| Number of outputs | 1 |
| Maximum Output Power | 75W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 9.6V |
| Output Current 1 | 6.3A |
| Output Voltage Adjustment Range | 9.6/13.2 V dc |
| Isolation Voltage | 3kV ac |
| Input Ratio | 4:1 |
| Output Voltage 2 | 13.2V dc |
| Input Ratio 4 | 1 |
Key Features
- Operates with input voltages ranging from 9V to 36V DC.
- Delivers a maximum output current of 6.3A with high efficiency of 88%.
- Features a robust metal chassis mount design for durability in harsh environments.
- Supports operating temperatures from -40°C to 75°C for reliable performance.
- Provides 3kV AC isolation voltage to protect sensitive electronic equipment.
- Includes internal Pi-type filter to reduce EMI and ripple noise.
- Continuous short-circuit protection with automatic recovery feature.

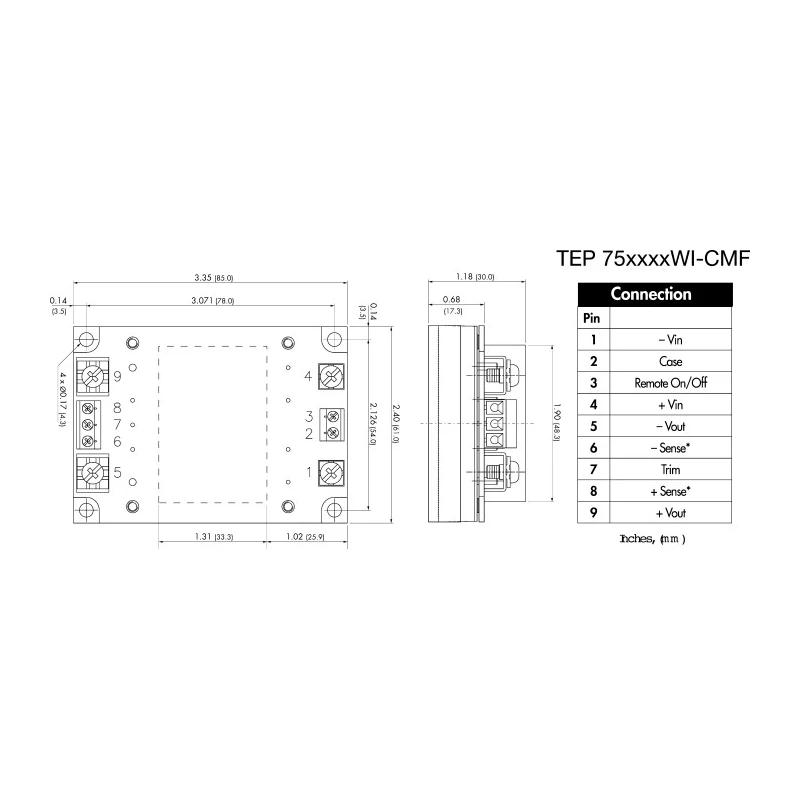

- Compact dimensions measuring 85mm length, 61mm width, and 40.5mm depth.
Product Description
TRACOPOWER TEP 75-2412WI-CMF DC/DC Converter is designed for industrial and electronic applications where a stable and reliable DC output voltage is required from varied input sources between 9V and 36V DC. This converter outputs regulated voltages of 9.6V and adjustable up to 13.2V DC, delivering a continuous power of 75W and a peak output current of 6.3A suitable for powering sensors, solar power inverters, and other industrial control devices.
The unit features a metal chassis mount for secure installation and enhanced durability, alongside an operating temperature range from -40°C to +75°C, enabling use in harsh and demanding environments. The internal Pi-type filter effectively suppresses electromagnetic interference (EMI) and ripple noise, ensuring clear signal transmission and stable operation.
Safety and protection are integral with continuous short-circuit protection and an automatic fault recovery system that quickly restores output after transient faults, minimizing downtime for connected equipment. The device provides 3kV AC isolation between input and output to safeguard equipment against surge voltages and electrical noise.
Compact in size with dimensions of 85mm in length, 61mm in width, and 40.5mm in depth, this DC/DC converter offers flexible integration options within control cabinets or embedded electronics. Its high efficiency rating of 88% minimizes heat generation and power loss, which helps reduce cooling requirements and improves energy savings.
Operates on 9V to 36V DC input voltage range. Outputs stable 9.6V/13.2V DC voltage with 6.3A current capacity. Chassis mount metal housing resists corrosion and impact. Wide temperature range from -40°C to 75°C suitable for industrial use.
Provides 3kV AC isolation voltage for surge protection. High efficiency of 88% reduces wasted energy and heat. Short-circuit protection with automatic recovery ensures safety. Compact footprint: 85mm x 61mm x 40.5mm.
This DC/DC Converter is ideal for use in railway systems, data centres, automotive manufacturing, and other demanding industrial environments requiring robust voltage conversion and regulation solutions. It ensures stable power delivery to sensitive modules and electronics with minimal noise and high reliability.
Explore more power supplies and controllers from TRACOPOWER on EnvMart for advanced industrial, electronic, and embedded power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with input voltages ranging from 9V to 36V DC.
This model delivers regulated output voltages of 9.6V and can be adjusted up to 13.2V DC.
The maximum output current is 6.3A.
It has compact dimensions measuring 85mm in length, 61mm in width, and 40.5mm in depth.
It features a high efficiency rating of 88%.
It supports an operating temperature range from -40°C to +75°C.
Yes, it provides a 3kV AC isolation voltage to protect sensitive electronic equipment.
It features a chassis mount design for secure installation.
It includes continuous short-circuit protection with an automatic recovery feature to minimize downtime.
This DC/DC converter is ideal for industrial applications, including powering sensors and solar power inverters.
The maximum input voltage it can handle is 36V DC.
The MTBF for this unit is 336,000 hours.
