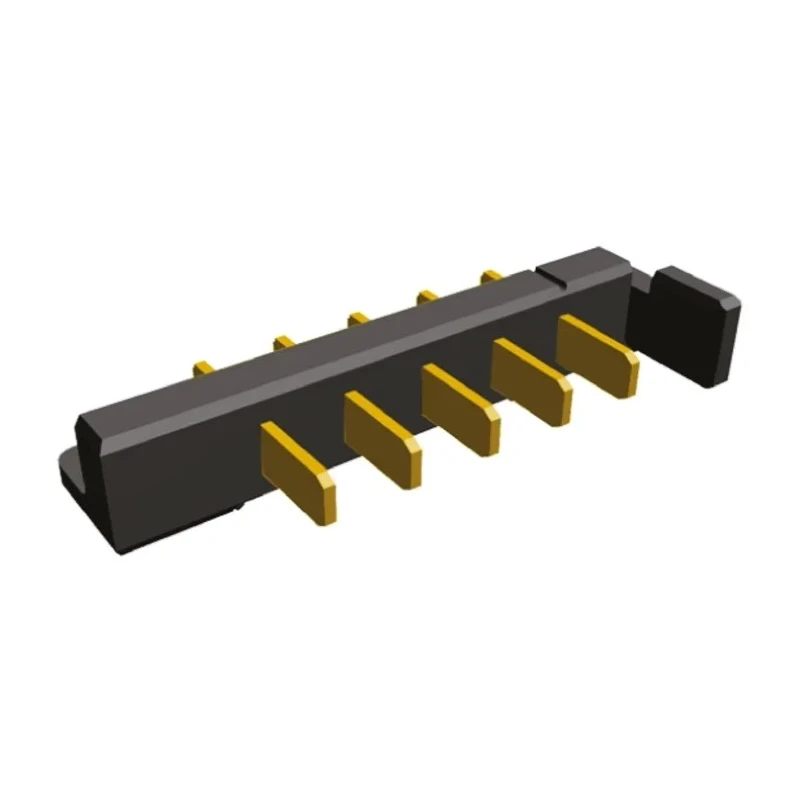

TE Connectivity Battery Interconnect Series Right Angle Through Hole PCB Header 5 Contacts 5 mm Pitch 1 Row 5787422-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Battery Interconnect Series Right Angle Through Hole PCB Header 5 Contacts 5 mm Pitch 1 Row 5787422-1

Name: TE Connectivity Battery Interconnect Series Right Angle Through Hole PCB Header 5 Contacts 5 mm Pitch 1 Row 5787422-1
Brand: TE Connectivity
SKU: 129527



Category Electronic Components Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	12V
Brand	TE Connectivity
Orientation	Right Angle
Current	8.8A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Brass
Series	Battery Interconnect
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	5mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

The header features a right angle orientation for space-efficient PCB layouts.
Constructed with a Liquid Crystal Polymer housing rated UL 94V-0 for flame retardance.
Contacts are brass with gold plating to ensure excellent conductivity and corrosion resistance.
Designed for solder termination with a through-hole mount type for solid mechanical and electrical connections.
Supports up to 8.8A current at 12V maximum voltage applications.
Operates reliably between -55°C and 105°C ambient temperatures.
Shrouded and male contact gender provide protection and secure mating.
Ideal for battery interconnect applications requiring durable and precise PCB headers.

Product Description

TE Connectivity 5787422-1 Battery Interconnect Series is a right angle through-hole PCB header designed for reliable electronic connections. Featuring a 5-contact, 5 mm pitch, and single-row configuration, this header seamlessly integrates into board-to-board interconnect systems suitable for various industrial and commercial applications.

The housing material is a durable Liquid Crystal Polymer (LCP) rated UL 94V-0, providing flame retardance and mechanical stability. Brass contacts plated with gold ensure excellent electrical conductivity and protection against corrosion, supporting currents up to 8.8A at 12 volts.

This connector is male with a shrouded design, offering secure mating and protection of contacts. Its through-hole solder termination type guarantees strong mechanical engagement to PCBs, enhancing the reliability of interconnections in harsh environments.

Operating temperature ranges from -55°C to 105°C make it suitable for demanding electronic and industrial conditions such as battery management systems, power supplies, and control units in automotive, manufacturing, and renewable energy sectors.

The header's right angle orientation optimizes PCB space and routing. Shrouded connector system enhances safety during installation. LCP housing balances mechanical performance with flame retardant compliance. Gold-plated brass contacts provide high-quality electrical connections.

Through-hole solder termination ensures firm mounting on PCBs. Wide operating temperature range allows use in extreme environments. Built for board-to-board power connector applications requiring dependable performance. Manufactured in China under RoHS compliance, the 5787422-1 model meets environmental and quality standards essential for global electronics manufacturing.
