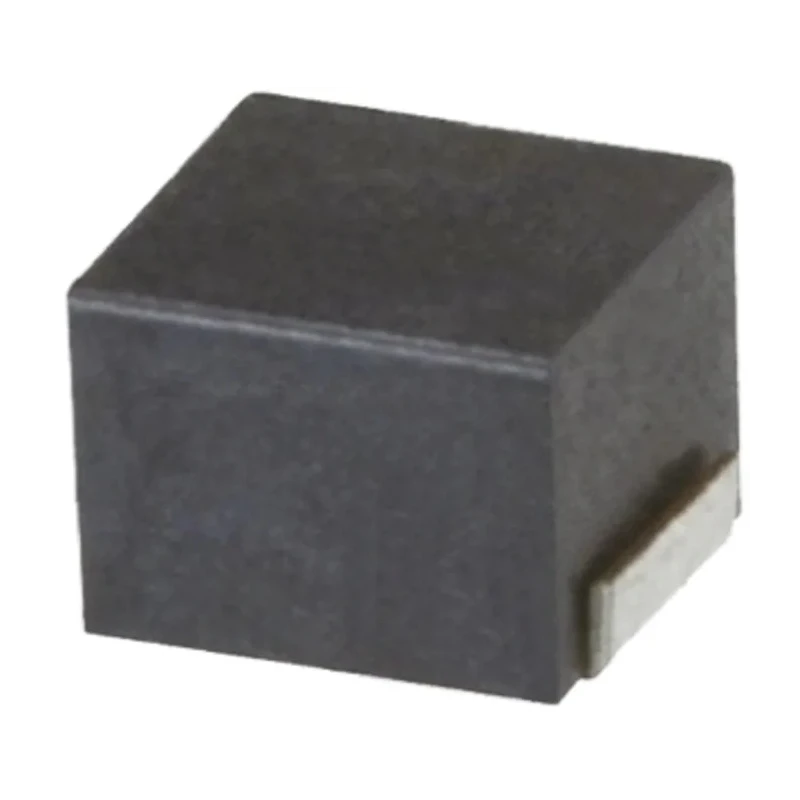

TDK Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±10% 180 mA Idc Q:15 NLVC32
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLVC32 |
| Depth | 2.5mm |
| Series | NLVC32 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 180mA |
| Maximum DC Resistance | 1.64Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 14MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wirewound |
Key Features
- Compact dimensions of 3.2mm length, 2.2mm height, and 2.5mm depth ensure space efficiency.
- Maximum DC current rating of 180 mA suitable for low power circuit use.
- High temperature operation up to 105°C guarantees durability in harsh environments.
- Shielded design minimizes electromagnetic interference for sensitive electronics.
- RoHS compliant and molded thermoplastic resin package for environmental safety.
- Wirewound construction with ferrite core enhances inductance stability and quality factor of 15.
- Maximum DC resistance of 1.64Ω provides efficient current flow with minimal losses.
- Self-resonant frequency of 14 MHz supports high frequency applications.
Product Description
The TDK NLVC32 Wirewound Surface Mount Inductor with a ferrite core offers 47 μH inductance with ±10% tolerance and a quality factor of 15, optimized for power line applications.
This shielded surface mount inductor features compact dimensions of 3.2 mm length, 2.2 mm height, and 2.5 mm depth, making it ideal for space-constrained circuit designs. Its maximum DC current rating is 180 mA, suitable for low current electronic devices.
The device tolerates operating temperatures from -40°C up to 105°C and is housed in a heat-resistant thermoplastic resin molded package, ensuring reliable performance under demanding temperature ranges.
Its wirewound construction on a ferrite core provides excellent inductance stability and a low DC resistance of 1.64Ω, minimizing energy losses. The shielded design reduces electromagnetic interference, making it suitable for precision applications.
The maximum self-resonant frequency of 14 MHz enables the inductor to operate effectively in high-frequency circuits commonly found in audio-visual equipment, digital cameras, and automotive onboard electronics.
The surface mount termination style allows efficient and automated mounting on printed circuit boards, enhancing manufacturing productivity. This RoHS compliant inductor aligns with environmental standards, supporting sustainable electronic product designs.
The TDK NLVC32 series is renowned for its quality and reliability in industrial, consumer electronic, automotive, and communication equipment applications. Compact dimensions optimize PCB real estate usage. Shielded wirewound construction reduces EMI and enhances performance.
High temperature tolerance suits harsh environments. Low DC resistance improves energy efficiency in circuits. Quality factor and self-resonant frequency suitable for high-frequency use cases. Explore the comprehensive range of Surface Mount Inductors at EnvMart for your advanced electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 47 μH with a tolerance of ±10%.
This inductor has a maximum DC current rating of 180 mA, making it suitable for low power circuit applications.
The compact dimensions of this unit are 3.2 mm in length, 2.2 mm in height, and 2.5 mm in depth.
It can operate at temperatures up to 105°C, which is suitable for harsh environments.
The inductor features a ferrite core, which enhances inductance stability.
The maximum self-resonant frequency of this inductor is 14 MHz, enabling effective operation in high-frequency applications.
The shielded design minimizes electromagnetic interference, making it suitable for sensitive electronic applications.
This inductor has a minimum quality factor of 15, which contributes to its performance in various applications.
The termination style is surface mount, allowing for efficient and automated mounting on printed circuit boards.
The maximum DC resistance for this model is 1.64Ω, which helps in efficient current flow with minimal losses.
Yes, this inductor is RoHS compliant, aligning with environmental safety standards.
It is suitable for power line applications in industrial, consumer electronics, automotive, and communication equipment.
