HARTING DIN 41612 Connector 48 Way 2.54 mm Pitch Type F Solder 3 Row Male Right Angle 09061482935

Free Delivery in India | Lowest Global Shipping Charges

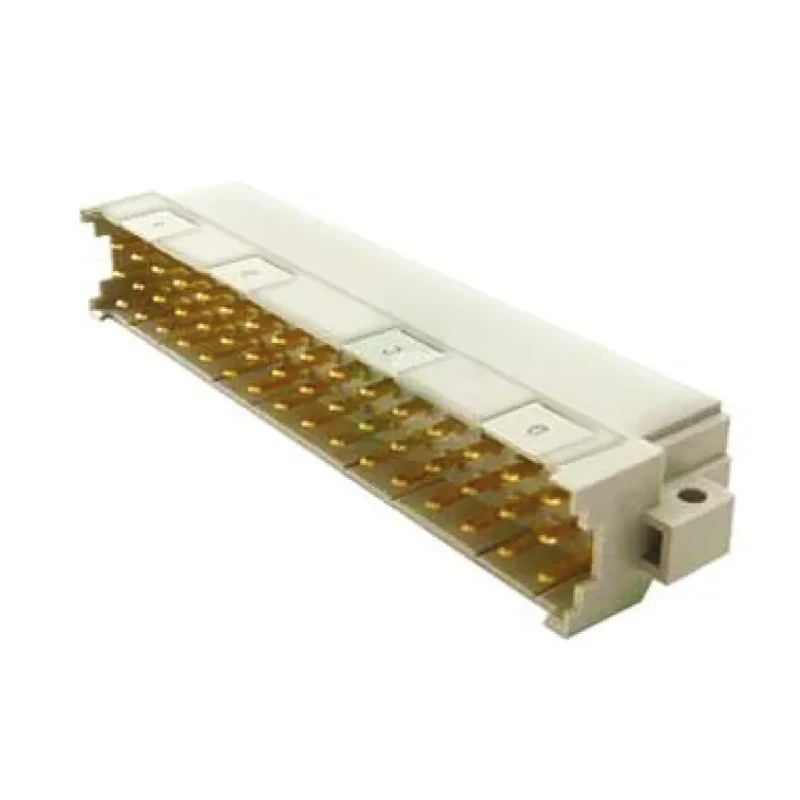

HARTING DIN 41612 Connector 48 Way 2.54 mm Pitch Type F Solder 3 Row Male Right Angle 09061482935

Name: HARTING DIN 41612 Connector 48 Way 2.54 mm Pitch Type F Solder 3 Row Male Right Angle 09061482935
Brand: HARTING
SKU: 129247
Price: 23.44 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	125V ac
Brand	HARTING
Orientation	Right Angle
Current	6A
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	09 06
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	F
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	48
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	15mΩ

Key Features

Durable thermoplastic housing with copper alloy contacts plated with gold over nickel.
Supports up to 6A current per contact at 125V AC voltage.
Operates reliably in temperatures from -55°C to 125°C.
Designed for right angle mounting with solder termination type.
Features low contact resistance of up to 15 milliohms ensuring efficient signal transmission.
Ideal for industrial applications including railway transportation and power supplies.
Comprises 3 rows and 48 contacts with 2.54 mm pitch for compact and high-density connections.

Product Description

HARTING 09061482935 DIN 41612 Connector is a 48 way, 3 row male, right angle connector with a 2.54 mm pitch Type F sub-type and solder termination. It features a durable thermoplastic housing and copper alloy contacts plated gold over nickel, enabling robust electrical connections suitable for industrial use.

This connector supports a maximum current of 6A per contact at 125V AC, and operates efficiently across a wide temperature range of -55°C to 125°C. Its low maximum contact resistance of 15 milliohms ensures minimal power loss and reliable signal integrity.

Specifically designed for demanding environments such as railway transportation and power supply units, it offers reliable board-to-board PCB and cable-to-board connections. The right angle orientation aids in compact assembly, optimizing PCB layouts and installation.

The 3-row, 48-contact configuration with 2.54 mm pitch allows high-density connections conforming to DIN 41612 standards. This connector is part of Harting's wider range of backplane power connectors noted for robustness and endurance.

Durable thermoplastic housing with copper alloy gold-plated contacts. Supports up to 6A at 125V AC per contact. Wide operating temperature range from -55°C to 125°C. Right angle solder termination design. Low contact resistance of 15 mΩ enhances conductivity.

Designed for industrial and railway applications. 48 contacts in 3 rows with 2.54 mm pitch for compact installation.

This product is made in Germany, ensuring high quality and performance standards. Ideal for use in industrial, railway, power supply, and manufacturing applications requiring reliable DIN 41612 Connectors. Explore more HARTING connectors and related components at EnvMart for your electrical and electronics needs.
