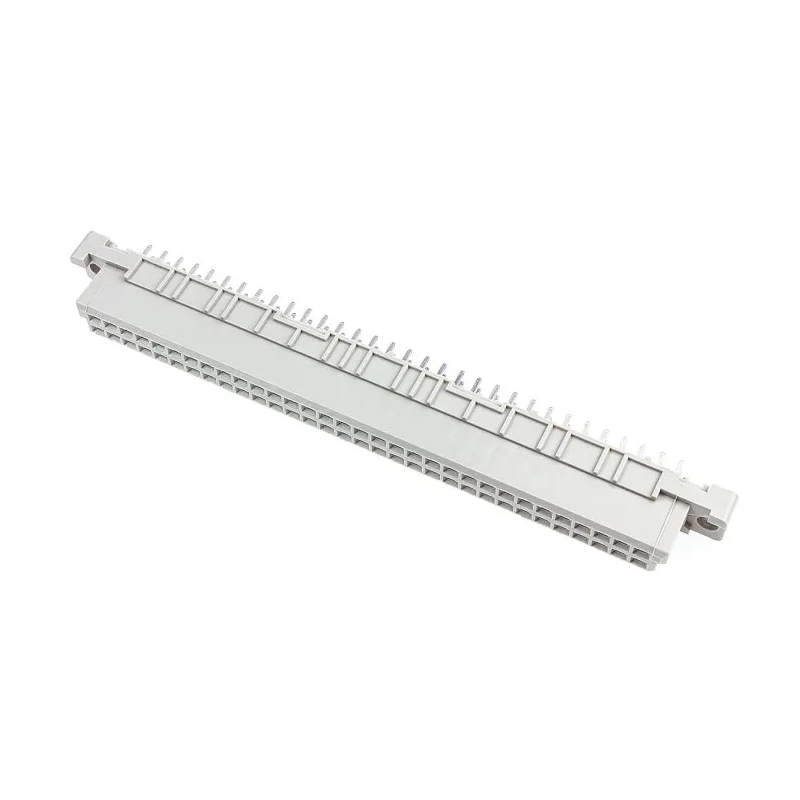

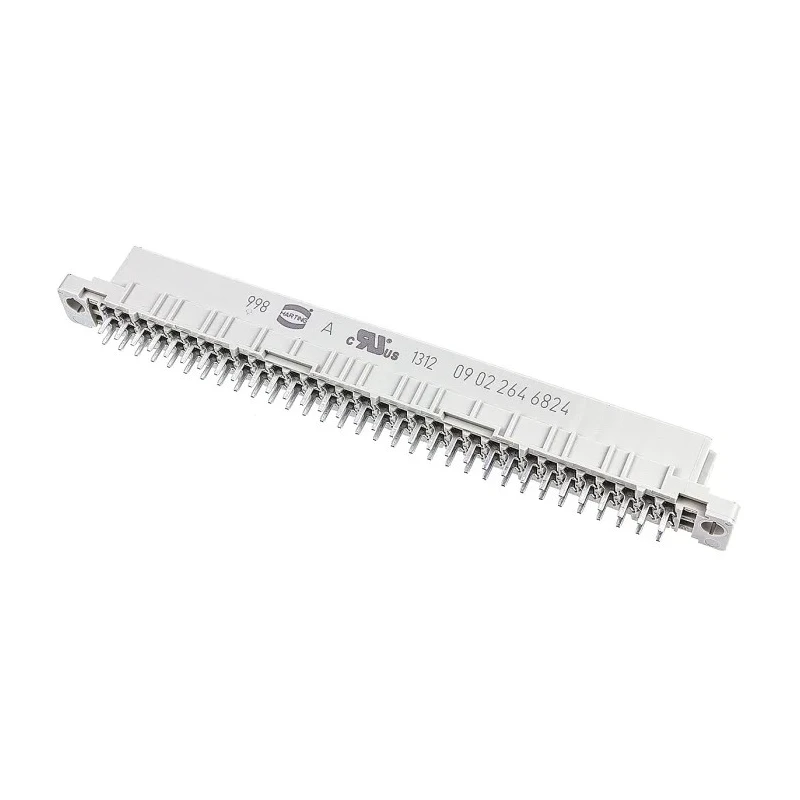

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type B, Solder Class C2, 2 Row Female Connector 09022646824
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Type B |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B |
Key Features
- Features 2 rows with type B orientation for reliable connectivity.
- Current rating of 2A per contact ensures stable electrical performance.
- Gold over nickel contact plating provides corrosion resistance and durability.
- Constructed with copper alloy contacts and a polybutylene terephthalate housing.
- Operates effectively within a temperature range from -55°C to 125°C.
- Suitable for use in industrial, electronic, and power connector applications.
- Class C2 solder termination ensures secure mounting to PCB.
- Offers a maximum contact resistance of 20 milliohms for efficient signal transmission.
Product Description
HARTING 09022646824 DIN 41612 64 Way 2.54 mm Pitch connector is a robust and economical female PCB connector engineered for industrial and electronic applications. Featuring type B orientation and through hole mounting, it supports a maximum current of 2A per contact and offers strong mechanical durability with a reliable mating cycle.
The connector's copper alloy contacts are gold plated over nickel to ensure both excellent electrical conductivity and long-lasting corrosion resistance. The thermoplastic resin housing, made from polybutylene terephthalate, is glass fibre filled to enhance strength and withstand operating temperatures ranging from -55°C to 125°C.
Designed according to DIN 41612 standards, this Class C2 solder termination connector is ideal for backplane and rack connections, providing consistent and low contact resistance up to 20 milliohms. Its 2-row, 64-contact design with 2.54 mm pitch makes it suitable for a wide range of electronic devices and power distribution tasks.
This connector finds extensive use in industrial manufacturing, electronic assemblies, automation systems, and power connectors where robust signal integrity and dependable performance are critical.
Features 2 rows with type B orientation for reliable connectivity. Current rating of 2A per contact ensures stable electrical performance. Gold over nickel contact plating provides corrosion resistance and durability. Constructed with copper alloy contacts and a polybutylene terephthalate housing.
Operates effectively within a temperature range from -55°C to 125°C. Suitable for use in industrial, electronic, and power connector applications. Class C2 solder termination ensures secure mounting to PCB. Offers a maximum contact resistance of 20 milliohms for efficient signal transmission.
Explore more industrial connectors and components at EnvMart for advanced electrical and electronic solutions.
Explore more products in our DIN 41612 Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 2A per contact, ensuring stable electrical performance.
It operates effectively within a temperature range from -55°C to 125°C.
This model features a Class C2 solder termination type, ensuring secure mounting to a PCB.
The connector has a total of 64 contacts arranged in 2 rows.
It is constructed with copper alloy contacts and a housing made of polybutylene terephthalate.
The maximum contact resistance is 20 milliohms, facilitating efficient signal transmission.
The connector features a pitch of 2.54 mm.
This model has a type B orientation with straight alignment.
It is suitable for use in industrial, electronic, and power connector applications, particularly in automation systems and electronic assemblies.
The connector is manufactured in Germany.
This model uses a through hole mounting type.
The connector features female contacts, making it a female connector.
