Block 30 A 520 V AC 60Hz Flange RFI Filter Screw Termination, 3 Phase HLD110-500/30

Free Delivery in India | Lowest Global Shipping Charges

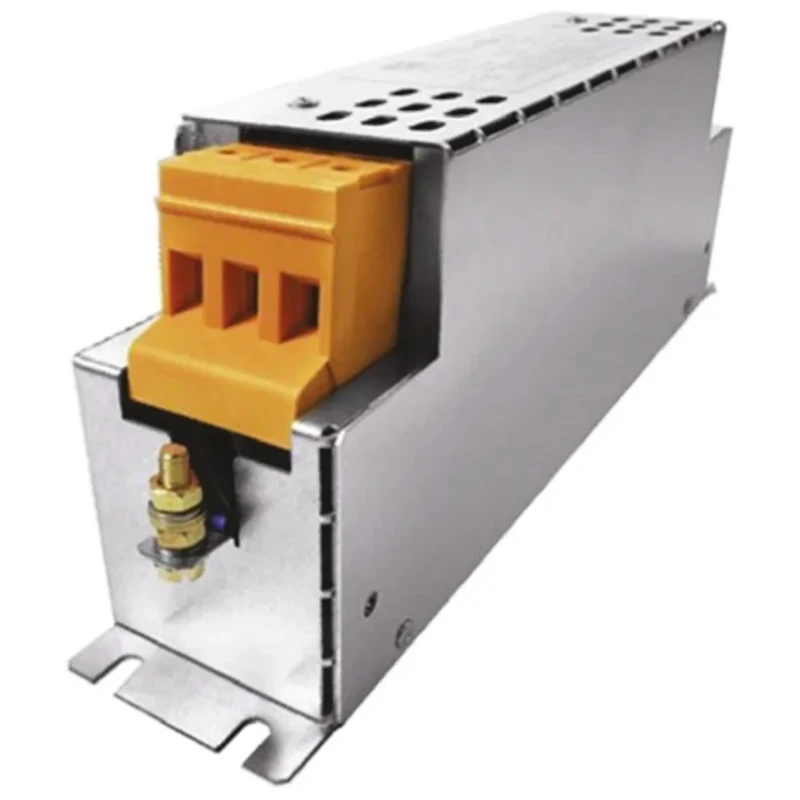

Block 30 A 520 V AC 60Hz Flange RFI Filter Screw Termination, 3 Phase HLD110-500/30

Name: Block 30 A 520 V AC 60Hz Flange RFI Filter Screw Termination, 3 Phase HLD110-500/30
Brand: Block
SKU: 129076



Category Power Line Filters Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Height	95mm
Length	55mm
Model	HLD110-500/30
Depth	270mm
Packaging	Rail
Mount Type	Flange
Operating Frequency	60Hz
Series	HLD 110
Maximum Operating Temperature	50°C
Number Of Stages	1
Maximum Current	30A
Number of Phases	3
Leakage Current	200mA
Maximum Voltage	520V ac
Termination Style	Screw
Power Loss	15W
Deltron, MIF 30A 500 V ac 60Hz, Flange Mount EMI Filter, StudBrand	Deltron

Key Features

Designed for effective radio interference suppression complying with DIN EN 133200 and UL 1283 standards.
Suitable for three-phase systems requiring increased EMI filtering performance.
Features flange mount type ensuring secure installation in industrial applications.
Compact dimensions of 55 mm length, 95 mm height, and 270 mm depth.
Power loss is low at 15 W, ensuring energy efficiency.
Maximum operating temperature rated at 50°C for reliable performance.
Leakage current is limited to 200 mA for safety and compliance.
Ideal for interference suppression on line side of frequency inverters, discrete equipment, and complex systems.

Product Description

The Block HLD110-500/30 is a high-performance 3 phase RFI (Radio Frequency Interference) filter designed for industrial and commercial applications operating at 30 A, 520 V AC and 60 Hz frequency. This flange mount filter efficiently suppresses EMI in compliance with DIN EN 133200 and UL 1283 standards, ensuring reduced electromagnetic interference for connected equipment and systems.

With compact dimensions of 55 mm length, 95 mm height, and 270 mm depth, the filter is engineered for easy installation and secure flange mounting using screw terminals. It supports one filter stage to provide effective noise attenuation on the line side of frequency inverters, discrete machinery, and complex electronic systems.

The device offers low power loss at 15 W and a maximum operating temperature of 50°C, making it suitable for demanding industrial environments. Its leakage current is restricted to 200 mA, enhancing safety in operation.

Manufactured in Germany, the filter carries C-UL-US approvals including CSA C22.2 No.8 and EN 60939-2 compliance, emphasizing its robust quality and reliability. The screw termination style ensures a reliable electrical connection suitable for 3 phase power line filtering applications.

Effective radio interference suppression to DIN EN 133200 and UL 1283 standards. Designed for three-phase electrical systems with 30 A maximum current capacity. Flange mounting facilitates secure and easy installation in various industrial settings.

Compact and robust build with dimensions 55 mm x 95 mm x 270 mm (LxHxD). Low power dissipation with 15 W power loss for energy-efficient operation. Operating temperature up to 50°C supports a wide range of industrial environments.

Leakage current limited to 200 mA ensuring system safety. Screw termination style ensures secure electrical connections. Applications include EMI suppression on line side of frequency inverters and complex systems. Manufactured in Germany with recognized safety and performance approvals.

This Block RFI filter is ideal for industrial, manufacturing, electrical systems, HVAC, and other commercial applications requiring reliable EMI suppression and power line filtering. Explore more high-quality electronic components and Power Line Filters at EnvMart.
