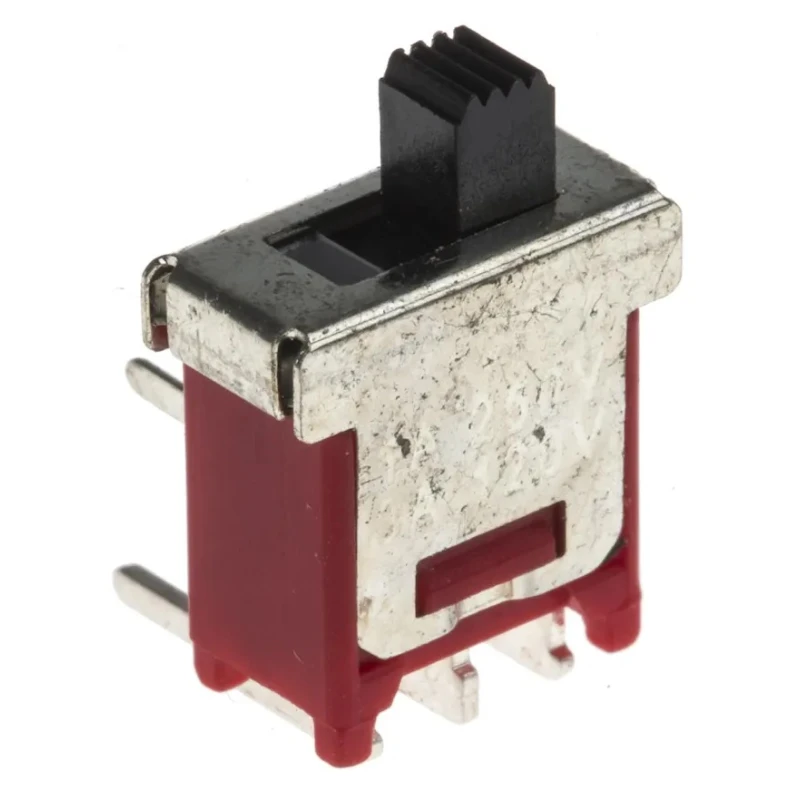

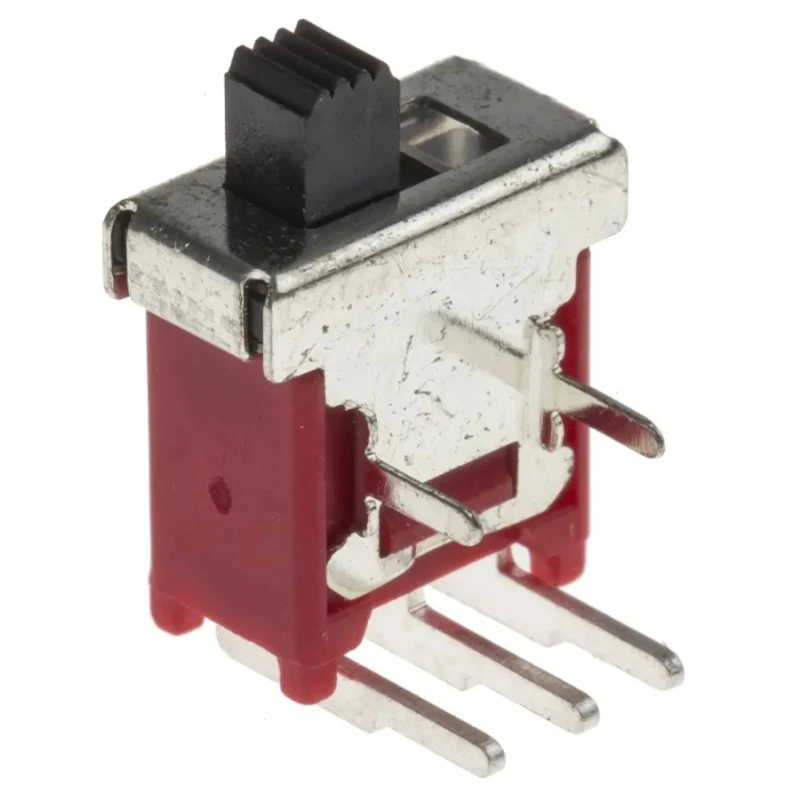

RS PRO PCB Slide Switch SPDT On-Off-On 3A Nylon 734-7277
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 10.16mm |
| Model | 734-7277 |
| Depth | 10.03mm |
| Width | 5.08mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS, cULus |
| Switch Operation | On-Off-On |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nylon |
Key Features
- The switch features Single Pole Double Throw (SPDT) contact configuration.
- It operates with an On-Off-On switch operation suitable for complex circuit control.
- The maximum switch contact current rating is 3 amperes for both AC and DC usage.
- The product is made with a nylon actuator and tin-plated brass housing providing mechanical resilience.
- Typical applications include handheld products, instrumentation, white goods, medical, IT, and telecommunications equipment.
- Designed for wave soldering at 260ºC for 5 seconds with mechanical life of 30,000 cycles.
- The compact dimensions are 10.16 mm length, 10.03 mm depth, and 5.08 mm width.
- The switch supports contact voltages of 28 V DC and 250 V AC.
Product Description
RS PRO 734-7277 is a high-quality PCB Slide Switch with SPDT contact configuration and On-Off-On operation, rated for a contact current of 3 amperes. This ultra miniature slide switch features a black nylon actuator and a durable tin-plated brass housing designed for wave soldering at 260ºC for 5 seconds, ensuring robust mounting on printed circuit boards.
This slide switch measures 10.16 mm in length, 10.03 mm in depth, and 5.08 mm in width, making it highly compact and suitable for space-critical electronic assemblies. It supports contact voltages up to 28 V DC and 250 V AC, providing versatile performance for various electrical applications.
The switch is engineered for a long mechanical life of 30,000 cycles and operates reliably within a temperature range of -30°C to 85°C. It is compliant with RoHS and cULus standards, emphasizing safety and environmental responsibility.
Common applications for the RS PRO 734-7277 slide switch include handheld devices, instrumentation, medical equipment, IT, telecommunications, and white goods, making it a versatile choice for quality electronic switch needs.
The switch is Single Pole Double Throw (SPDT) type, offering flexible circuit control. On-Off-On switch operation caters to multiple circuit states for complex control requirements. Nylon actuator material provides durability and smooth actuation.
Solder terminal type facilitates easy PCB mounting and reliable electrical connection. Compact dimensions suit tight assembly layouts requiring high-performance switches. Mechanical endurance ensures reliable switching over extended product lifetimes.
Suitable for wave soldering processes, enhancing manufacturing efficiency. Compliance with international safety and environmental standards ensures high quality.
This Slide Switch is packaged ready for insertion into machinery and electronic assemblies, allowing improved production efficiency in industrial, commercial, and consumer electronic applications. Explore EnvMart's extensive range of switches to find complementary products and advanced options for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
The maximum switch contact current rating is 3 amperes for both AC and DC usage.
This model measures 10.16 mm in length, 10.03 mm in depth, and 5.08 mm in width, making it highly compact.
It supports contact voltages of up to 28 V DC and 250 V AC, providing versatility for various applications.
The switch is designed for a mechanical life of 30,000 cycles, ensuring reliability over time.
It features a nylon actuator and a tin-plated brass housing, contributing to its mechanical resilience.
The operating temperature range is from -30°C to 85°C, suitable for various environments.
Yes, it is compliant with RoHS and cULus standards, emphasizing safety and environmental responsibility.
The switch uses a solder terminal type, facilitating easy PCB mounting and reliable electrical connection.
Typical applications include handheld products, instrumentation, medical equipment, IT, telecommunications, and white goods.
The switch operates with an On-Off-On configuration, allowing for multiple circuit states.
It is designed for wave soldering at 260ºC for 5 seconds, enhancing manufacturing efficiency.
