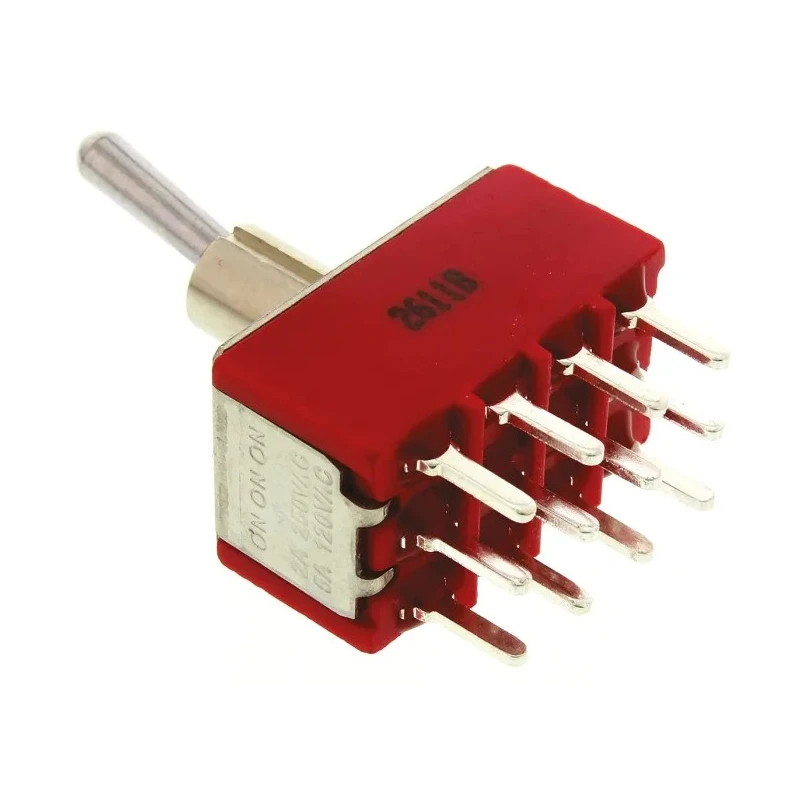

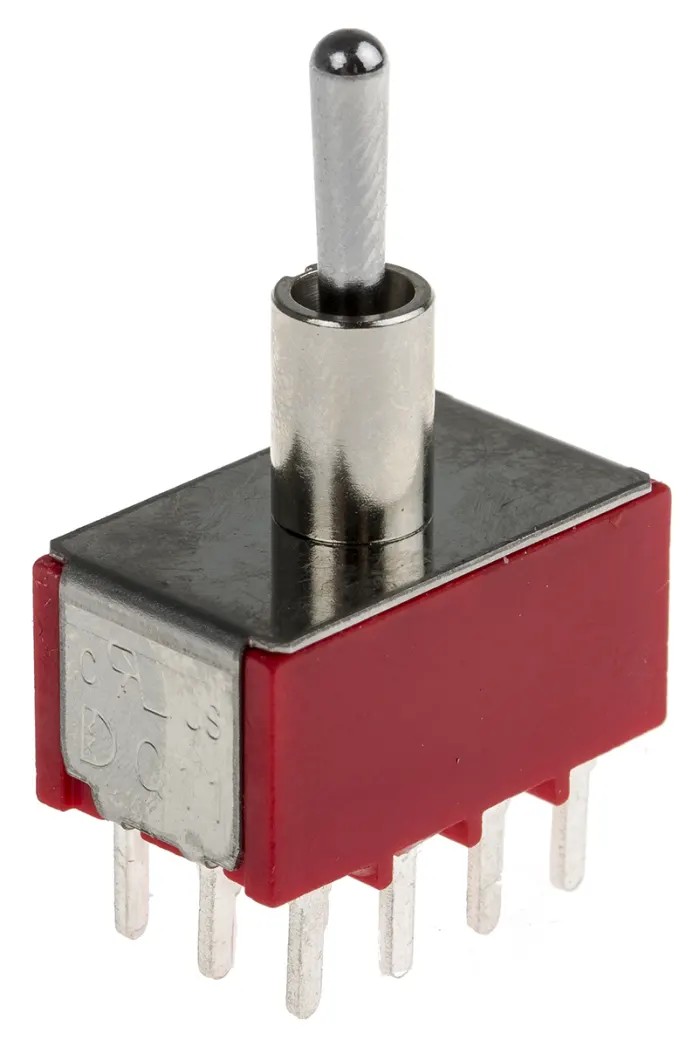

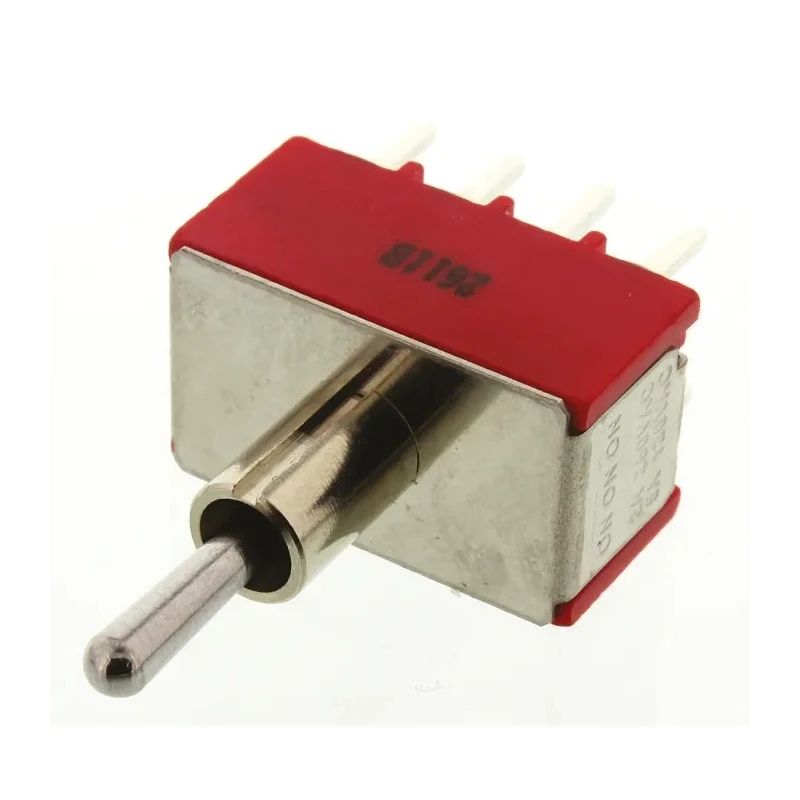

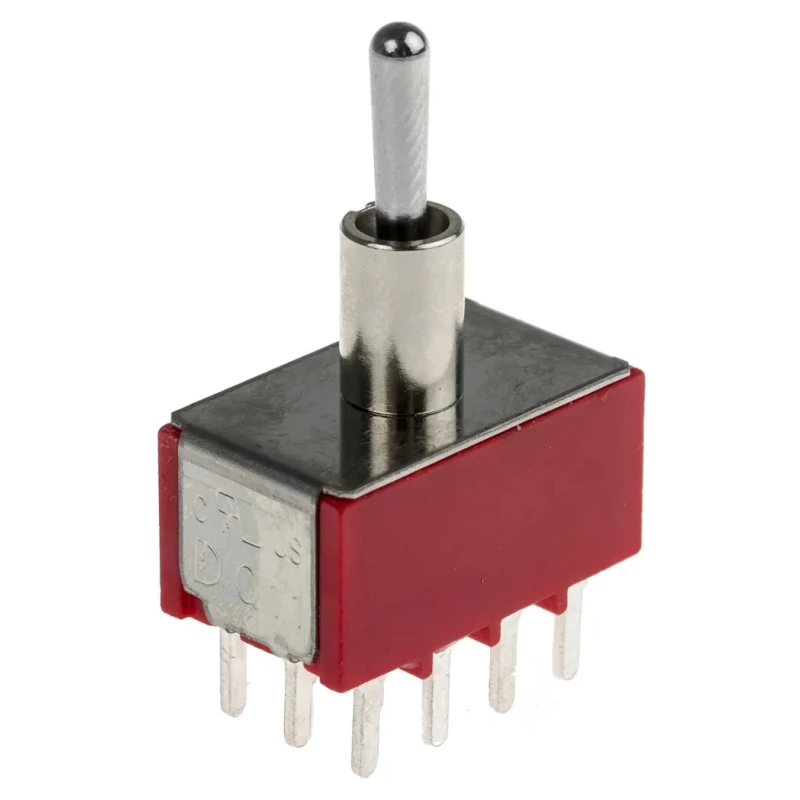

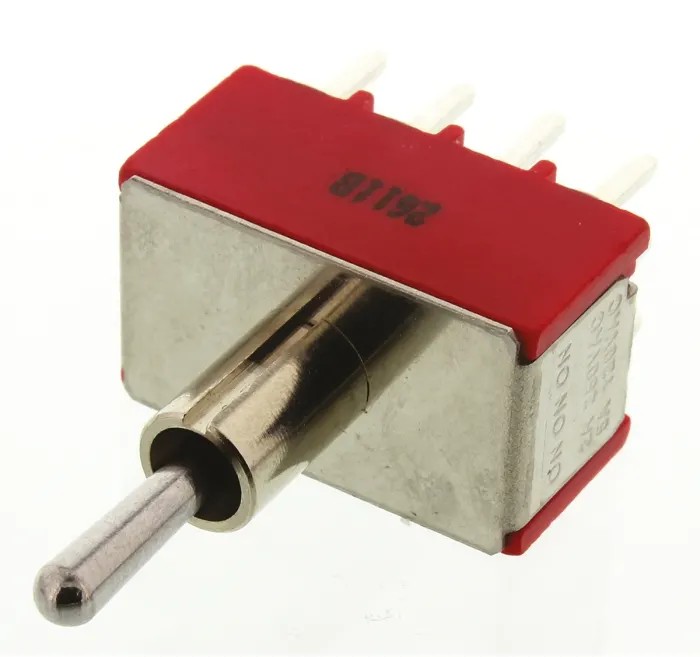

RS PRO Toggle Switch PCB Mount On-On-On 4PDT Through Hole Terminal 20 V dc 112 V ac 734-7012

RS PRO 734-7012 toggle switch is a high-quality, PCB mountable miniature toggle switch featuring an On-On-On switch operation and a 4PDT (four pole double throw) contact configuration. Designed for industrial and commercial environments, it offers reliable switching performance with maximum contact voltages of 20 V dc and 112 V ac and a maximum contact current of 5 A.

The switch features a durable chrome plated brass actuator housed in a stainless steel case encased within a flame retardant diallyl phthalate housing providing excellent mechanical stability and resistance to harsh conditions. The through hole terminal design facilitates secure PCB mounting and connectivity.

With an IP67 rating, this toggle switch is protected against dust ingress and temporary immersion in water, making it suitable for demanding environments. The actuator length is 10.41 mm, and the overall compact dimensions are approximately 21.59 x 12.70 x 36.57 mm. It operates reliably within a temperature range of -30°C to 85°C, supporting diverse industrial applications.

Silver plated contacts ensure low contact resistance and reduced risk of oxidation, maintaining consistent electrical conductivity. The switch employs a latching action which holds the toggle in its selected position without spring return, further enhancing operational reliability.

Tested to withstand 40,000 mechanical cycles, this switch provides long-lasting durability. RoHS, UL, CSA, and CE certifications confirm its compliance with international standards for safety and environmental protection.

Compact toggle switch suitable for PCB mounting with a robust through hole terminal design. Operates at 20 V dc and 112 V ac contact voltage ratings. Durable chrome plated brass actuator and stainless steel housing for long-term reliability.

IP67 rated for protection against moisture and dust ingress. Supports a switch contact current of 5A suitable for industrial and commercial applications. Resistant to operating temperatures ranging from -30°C to 85°C. Features a mechanical life of 40,000 cycles ensuring extended operational lifespan.

Silver plated contacts reduce oxidation and maintain secure electrical conductivity. Designed with a latching action to maintain switch state securely. Meets RoHS, UL, CSA, and CE standards ensuring compliance with safety and environmental regulations.

This toggle switch is ideal for use in industrial machinery control panels, electronic equipment, automation systems, and other applications requiring reliable switching with compact form factor and environmental resistance. Explore more Toggle Switches and related components in the Electronics & Electricals category on EnvMart for versatile industrial solutions.
