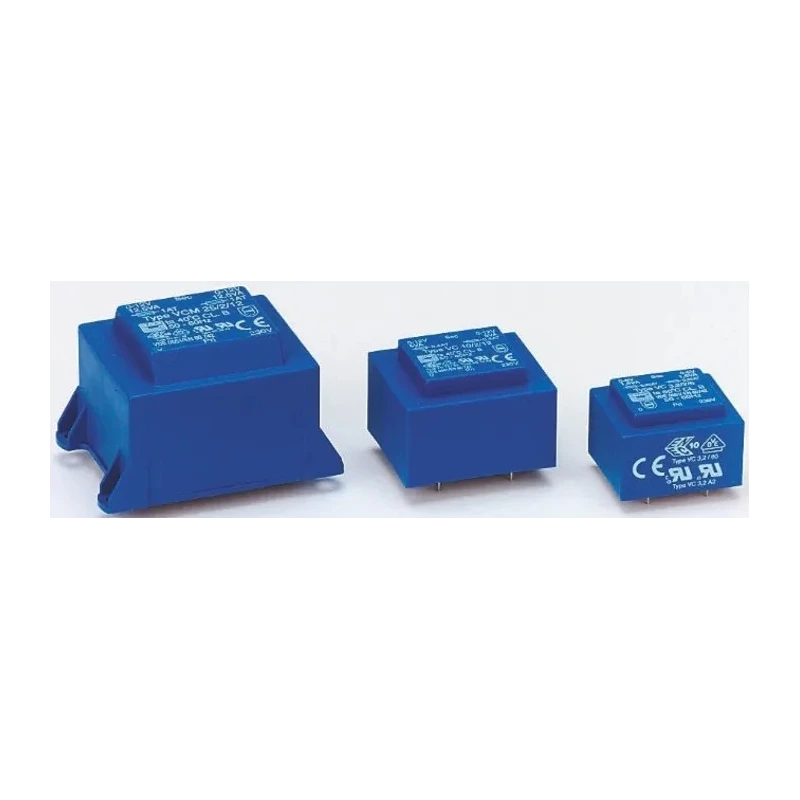

Block PCB Transformer 230 V ac Primary Voltage 15 V ac Secondary Voltage 16 VA Power 1 Output VCM 16/1/15

Block VCM 16/1/15 PCB Transformer is a high-quality transformer designed for use in electronic components and power supply applications. It features a 230 V ac primary voltage and provides a single 15 V ac output delivering 16 VA power capacity. This transformer is vacuum resin moulded to meet the UL94-V0 fire safety rating, ensuring enhanced safety in PCB mounted environments.

The device boasts low inter-winding capacitance, which minimizes noise and radiated interference, making it suitable for sensitive electronic circuit designs. Its efficiency of 76% ensures effective power transfer while maintaining low energy loss.

Certified to ENEC 10 (VDE) and C-UL-US standards, the VCM 16/1/15 ensures compliance with international electrical safety and performance regulations. The transformer is capable of operating continuously at temperatures up to 40°C with a frequency range from 50 Hz to 60 Hz.

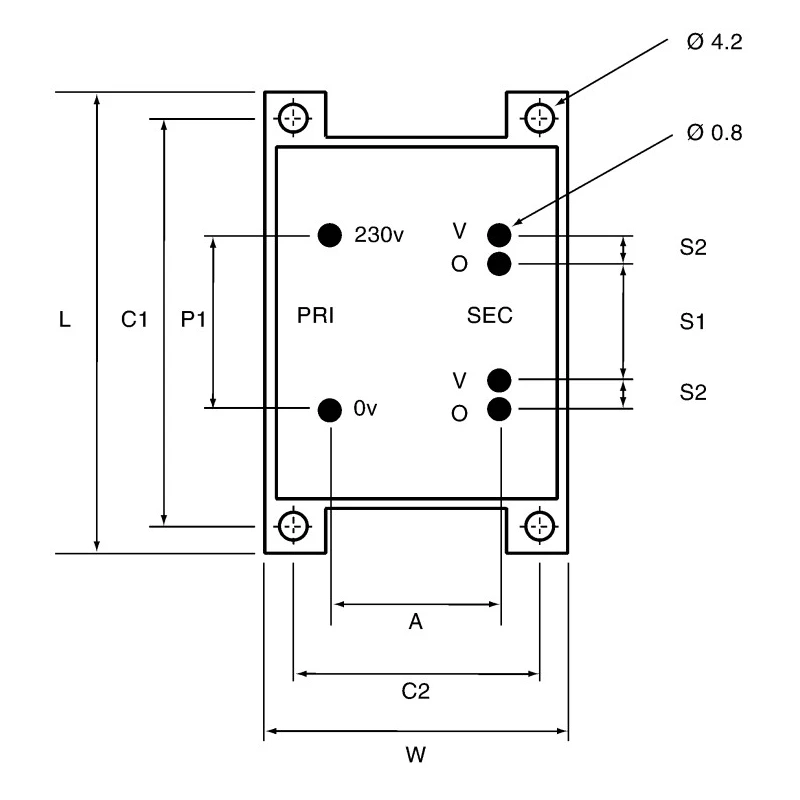

Additional features include an isolation voltage rating of 5000 V, supporting high safety margins for isolation in circuits. The design includes extra fixing points that provide secure mounting on PCB boards, supporting robust industrial and commercial applications.

Manufactured in Germany, this transformer undergoes 100% electrical and flash testing to guarantee performance and reliability. It is suitable for use in industrial, electronic manufacturing, and power supply systems requiring a reliable low voltage AC transformer.

Designed for PCB mounting with a compact form factor. Vacuum resin moulded to UL94-V0 fire rating for enhanced safety. Low inter-winding capacitance reduces noise and interference. Meets ENEC 10 (VDE) and C-UL-US standards for quality and safety.

Efficient transformer with 76% efficiency at operating frequencies of 50 to 60 Hz. Provides an isolation voltage rating of 5000 V for electrical safety. Operates reliably at maximum temperature up to 40°C. Constructed with extra fixing points for secure PCB mounting.

Produced in Germany with strict quality control and testing. Explore more PCB Transformers and reliable power components at EnvMart to find the ideal solutions for your electronic designs and industrial applications.
