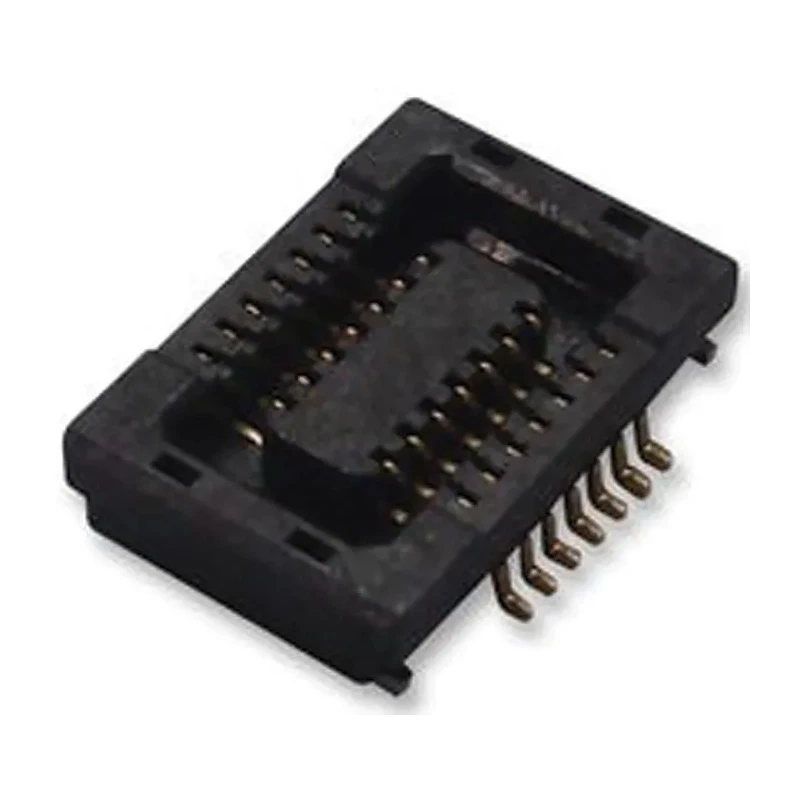

Hirose DF23 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 0.5 mm Pitch, 50V, 300mA, Gold Plated

Hirose DF23C-20DS-0.5V(51) is a member of the Hirose DF23 series, a family of straight surface PCB sockets engineered for precise and reliable board-to-board and board-to-FPC connections. This socket features a 0.5 mm pitch and 20 female contacts arranged in a 2-row configuration, making it ideal for electronics requiring compact and low-profile interconnections.

The connector incorporates copper contacts plated with gold to ensure excellent conductivity and resistance to corrosion. Its housing is made from liquid crystal polymer, enhancing durability and heat resistance for operations across a broad temperature range from -35°C to 85°C.

The socket uses solder termination, facilitating strong mechanical and electric bonding to the PCB surface with a stacking height of 1.5 mm, perfect for low-profile designs. Rated for up to 50V and capable of carrying 300mA current per contact, it meets the demands of sensitive electronic assemblies.

Its straight orientation and 4.4 mm row pitch allow for straightforward board layout and automatic placement with high reliability and alignment. The socket is manufactured in Japan, reflecting high-quality production standards and consistency.

Gold plated copper contacts provide high conductivity and corrosion resistance. Liquid crystal polymer housing enables durability and thermal stability. Operating temperature range from -35°C to 85°C for versatile applications.

Solder termination for secure PCB mounting. Low-profile stacking height of 1.5 mm suitable for compact devices. Designed for board-to-board and board-to-FPC connection systems. Voltage rating of 50V and current rating of 300mA per contact.

Two-row, 20-contact configuration with 0.5 mm pitch. Manufactured in Japan, ensuring quality and reliability.

This Hirose DF23 Series socket is widely used in electronics manufacturing, industrial control systems, communication devices, and other sectors requiring dependable and compact connector solutions. Its compatibility with automatic placement equipment boosts production efficiency and assembly accuracy.
