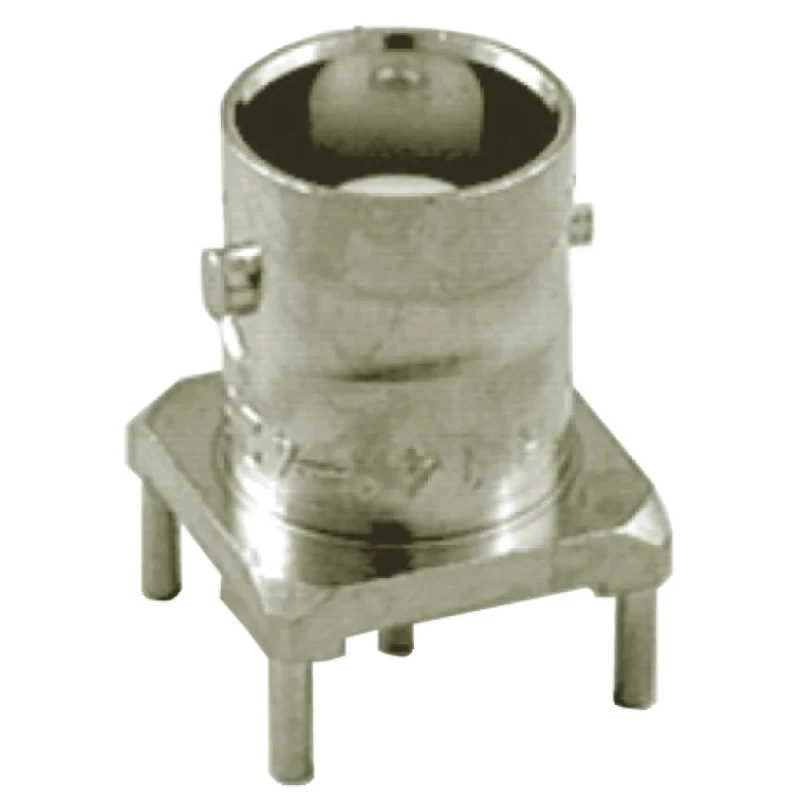

Radiall BNC Series Coaxial Connector PCB Female 50 Ω Straight Body Through Hole R141426161

Radiall R141426161 BNC Series Coaxial Connector PCB Female 50 Ω Straight Body Through Hole is engineered for robust and precise RF signal transmission in various electronics applications. Featuring a brass body with a nickel plating finish, this connector delivers durability and corrosion resistance suitable for industrial and commercial usage.

This coaxial connector is designed to be mounted on PCBs via through-hole termination that ensures secure mechanical and electrical connection. Its BNC type standard size with straight body orientation facilitates easy integration in electronic assemblies.

The connector provides operating frequency up to 1.5 GHz, making it well-suited for medium frequency RF signals. The contact plating of gold over nickel enhances electrical performance by reducing contact resistance and mitigating corrosion effects over prolonged use.

Operating temperature range from -35°C to 70°C allows reliable performance in diverse environmental conditions. The connector design adopts normal polarity with female connector gender and female contact gender, ensuring compatibility with common BNC cable assemblies.

Constructed mainly from brass, the connector combines mechanical strength with excellent conductive properties. The impedance rating of 50 Ω meets industry standards for RF connectors, supporting minimal signal loss and reflection.

The connector type is BNC with a standard size and straight orientation. It is designed for PCB mounting with a through-hole termination. Operating frequency supports up to 1.5 GHz for RF applications. The body plating is nickel, providing corrosion resistance and durability.

Contact plating is gold over nickel to ensure excellent conductivity and low contact resistance. Supports normal polarity configuration with female connector gender and contact gender. Operates reliably in temperatures ranging from -35°C to 70°C.

Ideal for applications requiring 50 Ω impedance. Constructed with brass contact materials assuring mechanical and electrical performance.

Widely useful across industrial, telecommunications, electronic instrumentation, and laboratory equipment sectors, this Radiall BNC coaxial connector ensures secure and efficient RF connectivity. Browse more Coaxial Connectors and related electronic components on EnvMart for comprehensive project solutions.
