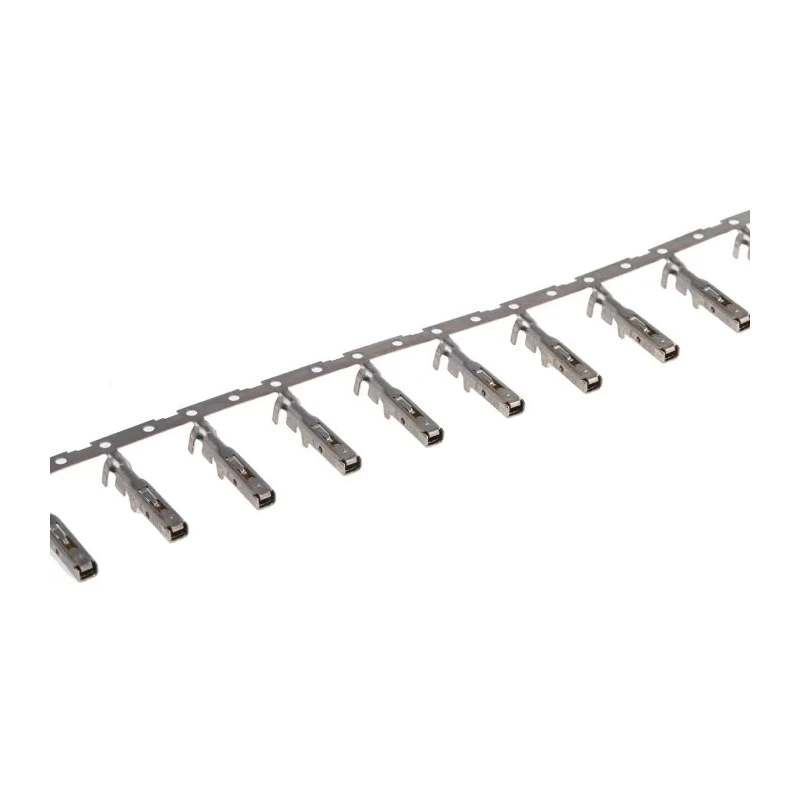

TE Connectivity DYNAMIC D-3000 Series Female Crimp Terminal 20 AWG Min, 16 AWG Max, Gold Plated, 15A Current 1-175196-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 15A |
| Length | 17.8mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Dynamic 3000 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- This terminal is designed for use with Dynamic 3000 connector housing.
- Constructed with copper alloy and gold plating for reliable conductivity.
- Features a twist resistant box receptacle and tab design with 3 points of contact for electrical reliability.
- Operates within a temperature range of -55°C to 105°C, suitable for various environments.
- Offers audible click locking mechanism ensuring secure contact retention.
- Available in standard and high pressure versions for different application needs.
- Designed for industrial machinery combined signal and power applications.
Product Description
TE Connectivity 1-175196-3 DYNAMIC D-3000 Series Female Crimp Terminal is engineered for high performance in industrial and electronic applications. Rated for 15A current, it supports wire sizes from 20 AWG minimum to 16 AWG maximum. The terminal is gold plated and made from copper alloy, ensuring excellent electrical conductivity and corrosion resistance.
This Crimp Terminal fits Dynamic 3000 connector housings, which are widely used in combined signal and power connections in industrial machinery. The design incorporates a twist resistant box type receptacle and tab with three points of contact to ensure secure and reliable electrical connections even in high vibration environments.
The terminal operates reliably over a broad temperature range from -55°C to 105°C and measures 17.8 mm in length, providing precise installation and compatibility. The built-in lance mechanism in the housing allows for secure locking with an audible click, enabling easy verification of correct assembly.
Both standard and high pressure options are available to cater to different levels of vibrational stress and insertion cycles, enhancing durability and performance for various industrial use cases. This product is ideal for applications requiring reliable electrical connections in dynamic and demanding environments.
This terminal is designed for use with Dynamic 3000 connector housing. Constructed with copper alloy and gold plating for reliable conductivity. Features a twist resistant box receptacle and tab design with 3 points of contact for electrical reliability.
Operates within a temperature range of -55°C to 105°C, suitable for various environments. Length of the terminal is 17.8 mm for precise fitting. Offers audible click locking mechanism ensuring secure contact retention. Available in standard and high pressure versions for different application needs.
Designed for industrial machinery combined signal and power applications. Browse our wide range of TE Connectivity connectors and terminals at EnvMart to find compatible products and support your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current of 15A.
It supports wire sizes from 20 AWG minimum to 16 AWG maximum.
The terminal measures 17.8 mm in length.
It is constructed from copper alloy and features gold plating for improved conductivity.
It operates reliably over a temperature range from -55°C to 105°C.
This terminal uses a crimp termination type.
It is designed for use with Dynamic 3000 connector housing.
It features an audible click locking mechanism that ensures secure contact retention.
Yes, it is available in standard and high pressure versions for different application needs.
This terminal is a female crimp terminal.
It is designed for industrial machinery combined signal and power applications.
The country of origin for this terminal is India.
